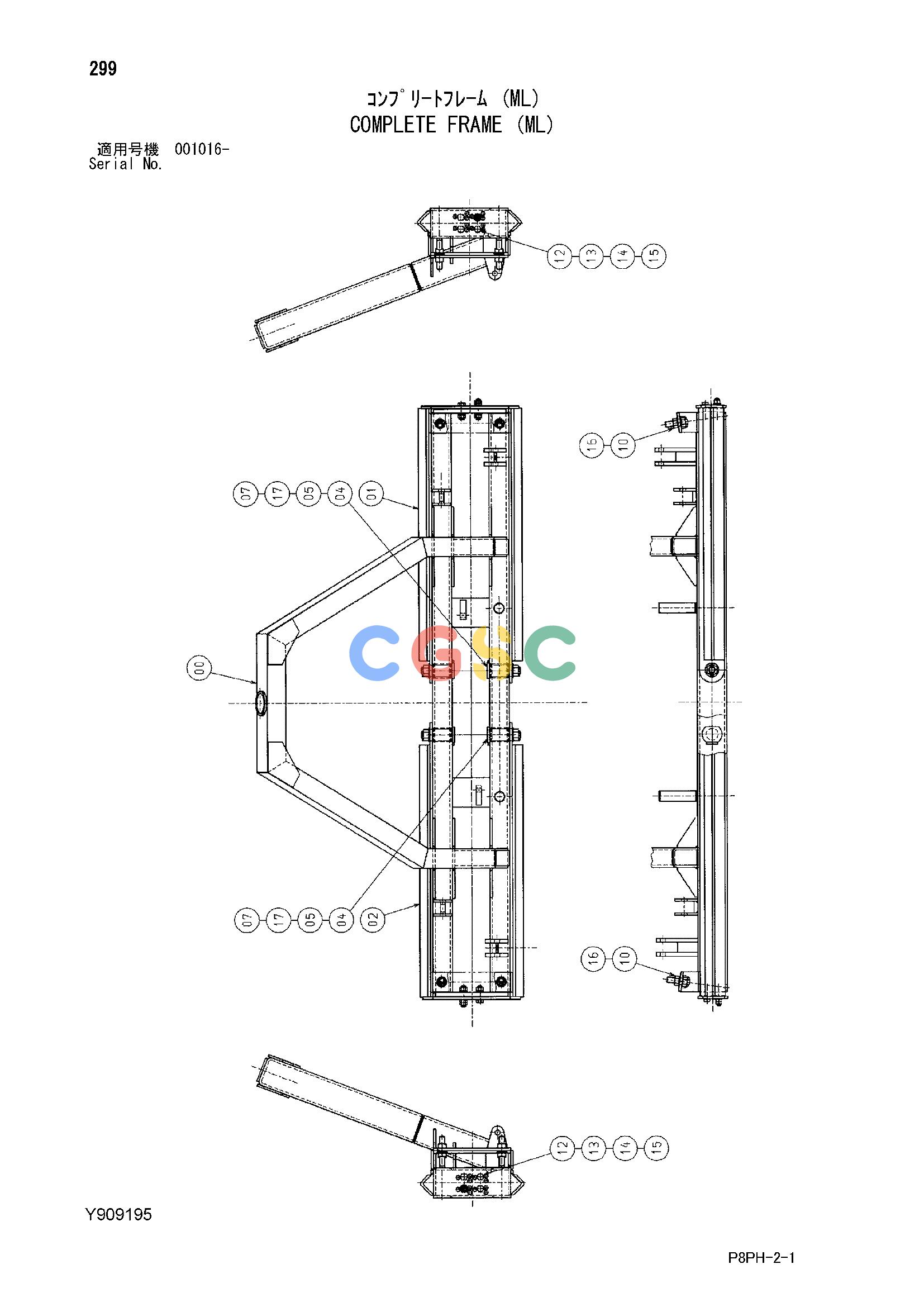

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | Y600473 | [1] | WELDED FRAME | |
| 01. | Y802104 | [1] | RIGHT GUIDE | |
| 02. | Y802103 | [1] | LEFT GUIDE | |
| 04. | Y409706 | [4] | PIN | |
| 05. | Y409707 | [4] | WASHER | |
| 07. | A766040 | [4] | PIN;SPLIT | |
| 10. | A590127 | [8] | WASHER;PLANE | |
| 12. | M122071 | [8] | BOLT | |
| 13. | J257220 | [8] | WASHER;SPRING | |
| 14. | A590120 | [8] | WASHER;PLANE | |
| 15. | J952020 | [8] | NUT | |
| 16. | J952027 | [8] | NUT | |
| 17. | J952033 | [4] | NUT |
