| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

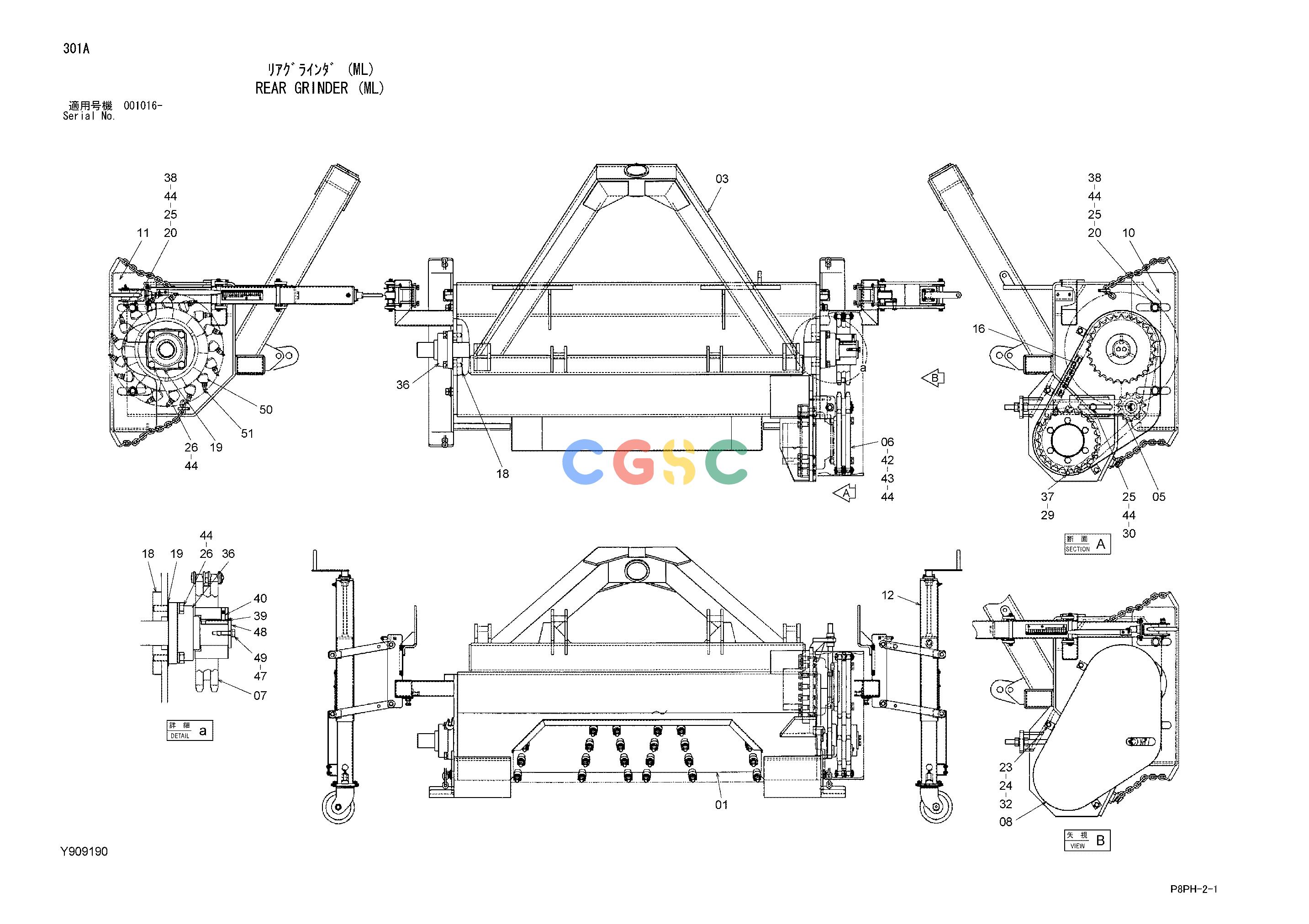

| 01. | Y600485 | [1] | REAR MILLER | |
| 03. | Y500281 | [1] | REAR FRAME;CPL | |
| 05. | +++++++ | [1] | TENSIONER (ML) | <for details: see separate page> |
| 06. | Y411924 | [1] | SPROCKET | |
| 07. | Y411923 | [1] | SPROCKET;CHAIN | |
| 08. | Y700939 | [1] | SHIELD;RIGHT | |
| 10. | Y801964 | [1] | PLATE;R | |
| 11. | Y801965 | [1] | PLATE;L | |
| 12. | +++++++ | [2] | DEPTH CONTROL DEVICE | (REAR)(ML) <for details: see separate page> |
| 16. | Y411919 | [1] | CHAIN;ROLLER | |
| 16A. | Y415794 | [1] | CHAIN (OFFSET) | |
| 18. | Y409623 | [2] | GASKET HOUSING | |
| 19. | Y409624 | [2] | BEERING STOPPER | |
| 20. | Y409625 | [4] | SPACER;WASHER | |
| 23. | J901225 | [3] | BOLT | |
| 24. | A590112 | [3] | WASHER;PLANE | |
| 25. | J922045 | [5] | BOLT | |
| 26. | J922080 | [8] | BOLT | |
| 29. | A590922 | [8] | WASHER;SPRING | |
| 30. | A590120 | [1] | WASHER;PLANE | |
| 32. | A590912 | [3] | WASHER;SPRING | |
| 36. | Y411970 | [2] | BRG. | |
| 37. | Y412838 | [8] | BOLT;REAMER | |
| 37. | Y412848 | [8] | BOLT;REAMER | |
| 38. | A590124 | [4] | WASHER;PLANE | |
| 38. | Y413092 | [4] | WASHER;PLANE | |
| 39. | 94-2352 | [1] | KEY | |
| 40. | Y411968 | [1] | SCREW;SET | |
| 40. | Y411968 | [3] | SCREW;SET | |
| 42. | J922002 | [6] | BOLT | |
| 43. | J950020 | [6] | NUT | |
| 44. | J257220 | [19] | WASHER;SPRING | |
| 47. | A590910 | [1] | WASHER;SPRING | |
| 47. | A590912 | [2] | WASHER;SPRING | |
| 48. | Y413069 | [1] | PLATE;END | |
| 48. | Y413052 | [1] | PLATE;END | |
| 49. | J901025 | [1] | BOLT | |
| 49. | J901235 | [2] | BOLT | |
| 50. | Y409745 | [120] | CUTTING INSERT SEAT | |
| 51. | Y409746 | [120] | CUTTING INSERT |
