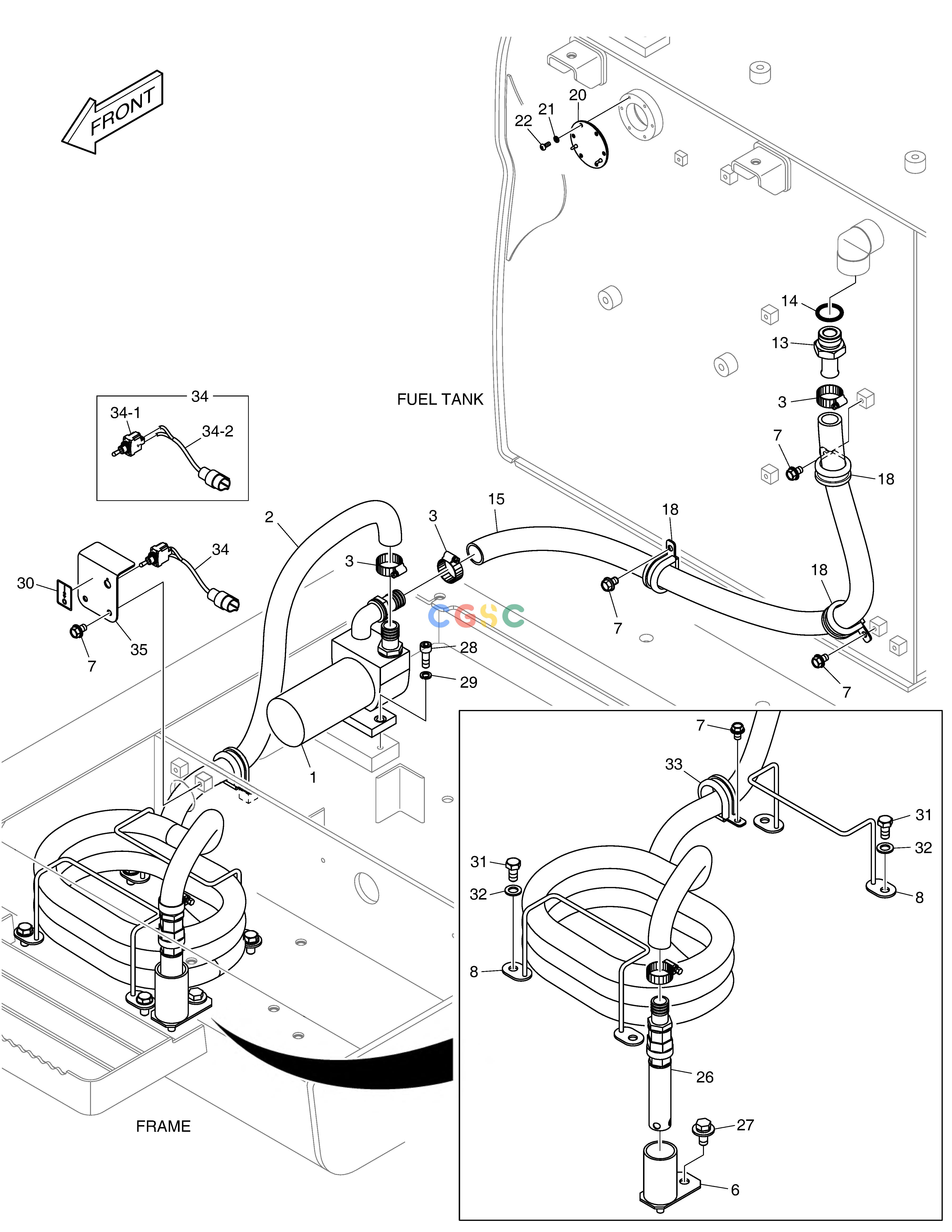

斗山零件查询FUEL FILLER PUMP DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
983 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
400909-00160
|
[-] |
|
|
| 1. |
401-00527
|
[1] |
PUMP;FUEL TRANSFER
|
|
| 13. |
2181-2104D8
|
[1] |
ADAPTER
|
|
| 14. |
S8000291
|
[1] |
O-RING
|
|
| 15. |
2185-1247D44
|
[1] |
|
|
| 18. |
124-00208D6
|
[3] |
CLIP
|
|
| 2. |
185-00412D1
|
[1] |
HOSE;FUEL
|
|
| 20. |
110508-00246
|
[1] |
|
|
| 21. |
S5100203
|
[6] |
WASHER
|
|
| 22. |
S3450833
|
[6] |
BOLT
|
|
| 26. |
421-00023
|
[1] |
VALVE ASS'Y;CHECK
|
|
| 27. |
DS0025015
|
[1] |
BOLT
|
|
| 28. |
S2212266
|
[2] |
BOLT
|
|
| 29. |
S5110603
|
[2] |
WASHER
|
|
| 3. |
S8470038
|
[4] |
|
|
| 30. |
190-01172
|
[1] |
PLATE,NAME
|
|
| 31. |
S0515066
|
[4] |
BOLT
|
|
| 32. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 33. |
124-00208D7
|
[1] |
CLIP
|
|
| 34. |
301405-00247
|
[1] |
SWITCH,TOGGLE
|
|
| 34-1. |
301421-00054
|
[1] |
. SWITCH,TOGGLE
|
|
| 34-2. |
310207-04112
|
[1] |
. HARNESS,JOINT
|
|
| 35. |
110406-03044
|
[1] |
|
|
| 6. |
110420-00036
|
[1] |
|
|
| 7. |
K1001029
|
[6] |
BOLT
|
|
| 8. |
K1011080
|
[2] |
BRACKET
|
|
