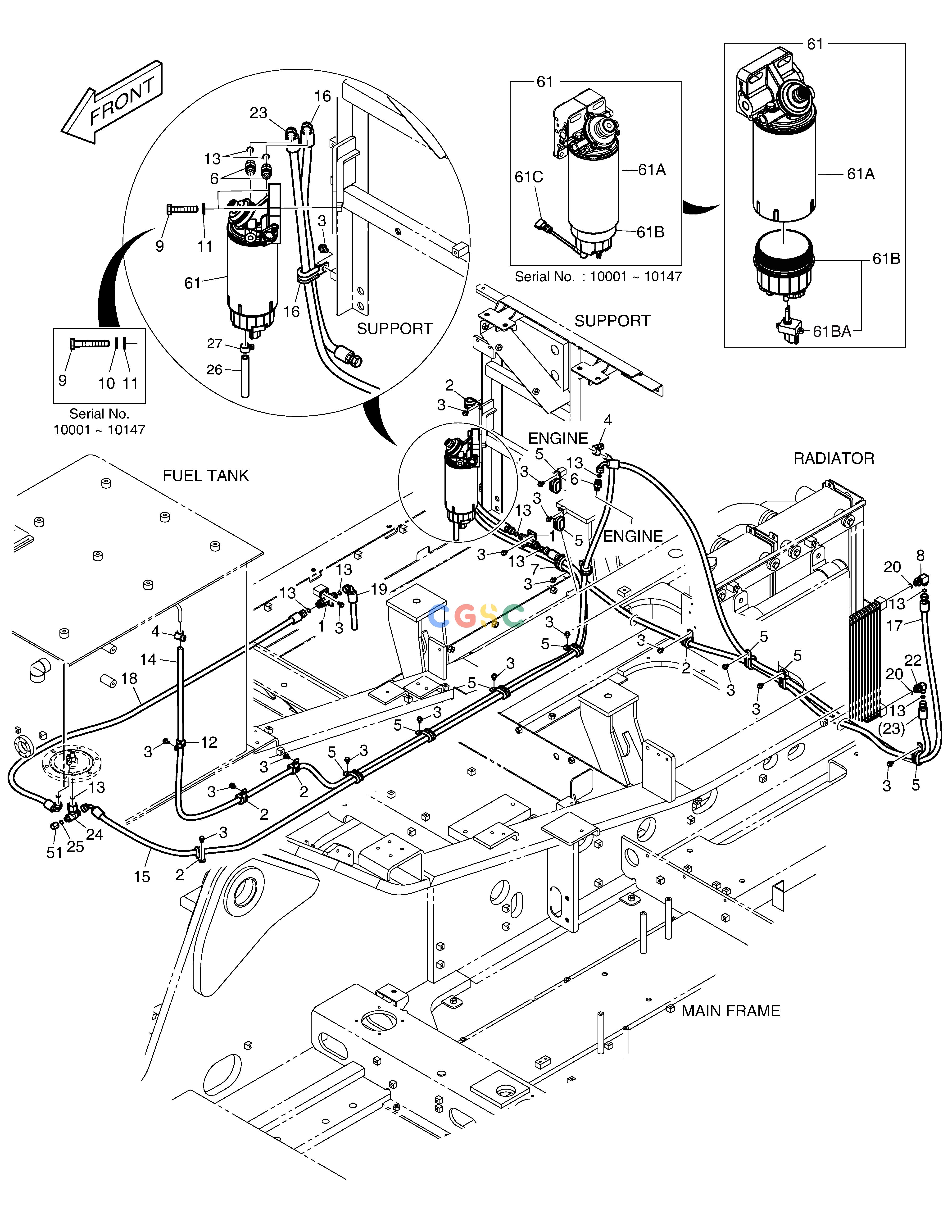

斗山零件查询FUEL PIPING DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
119 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01007
|
[-] |
|
|
| 1. |
410202-00011A
|
[2] |
COCK,VALVE
|
|
| 10. |
S5102703
|
[2] |
WASHER
|
|
| 11. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 12. |
124-00208D2
|
[1] |
CLAMP
|
|
| 13. |
S8030061
|
[12] |
O-RING
|
|
| 14. |
DS2117005
|
[1] |
|
|
| 15. |
DS2114002
|
[1] |
|
|
| 16. |
DS2114009
|
[1] |
|
|
| 17. |
DS2114002
|
[1] |
|
|
| 18. |
DS2114026
|
[1] |
|
|
| 19. |
DS2116001
|
[1] |
HOSE
|
|
| 2. |
124-00208D3
|
[6] |
CLIP
|
|
| 20. |
S8000141
|
[2] |
O-RING
|
|
| 22. |
DS2304059
|
[1] |
ELBOW
|
|
| 23. |
DS2114033
|
[1] |
|
|
| 24. |
DS2417010
|
[1] |
|
|
| 25. |
S8030041
|
[1] |
O-RING
|
|
| 26. |
DS2105131
|
[1] |
|
DS2165001
|
| 26. |
DS2165001
|
[1] |
|
|
| 27. |
DS2807008
|
[1] |
|
DS2809001
|
| 27. |
DS2809001
|
[1] |
CLIP
|
|
| 3. |
K1001029
|
[22] |
BOLT
|
|
| 4. |
S8450006
|
[2] |
CLAMP
|
|
| 4. |
S8470020
|
[2] |
CLAMP
|
|
| 5. |
124-00209D1
|
[10] |
CLIP
|
|
| 51. |
DS2916007
|
[1] |
|
|
| 6. |
DS2508001
|
[3] |
|
|
| 61. |
K1044607
|
[1] |
FILTER;PRE FUEL
|
|
| 61. |
400403-00207
|
[1] |
|
400403-00207A
|
| 61. |
400403-00207A
|
[1] |
|
|
| 61A. |
K1006529
|
[1] |
FILTER;PRE FUEL
|
|
| 61A. |
400508-00063
|
[1] |
PRE FILTRE A ESSENCE
|
|
| 61B. |
K1046352
|
[1] |
BOWL;WATER
|
|
| 61B. |
110964-00022
|
[1] |
. BOWL
|
|
| 61BA. |
301308-00562
|
[1] |
.. SENSOR,LEVEL
|
|
| 61C. |
K1046350
|
[1] |
. SENSOR;WATER
|
|
| 7. |
124-00208D6
|
[1] |
CLIP
|
|
| 8. |
DS2304015
|
[1] |
ELBOW
|
|
| 9. |
S0561266
|
[2] |
BOLT
|
|
| 9. |
S0560766
|
[2] |
BOLT M12X1.75X50
|
|
