| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
|
[6] |

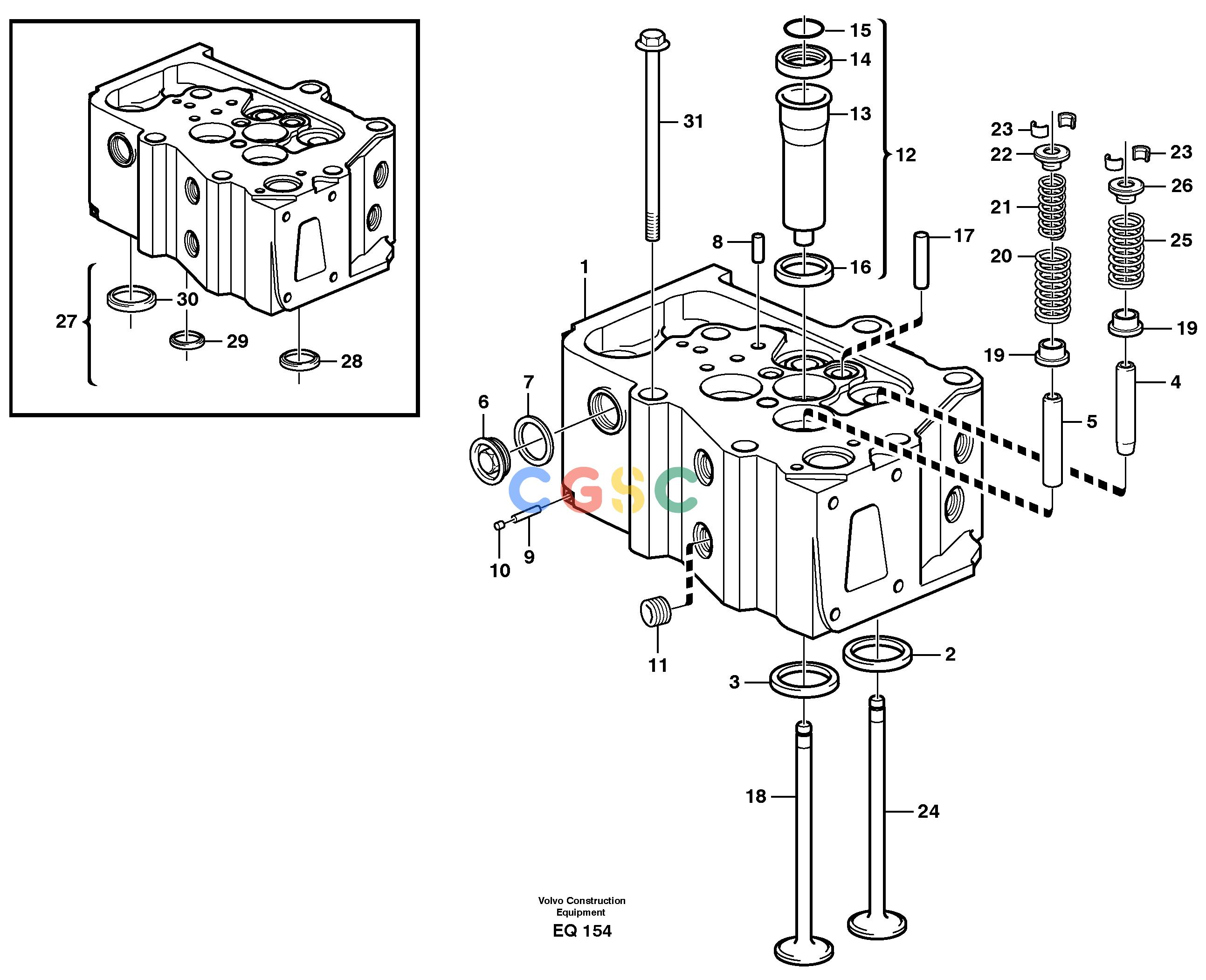

Cylinder head
|
|
| 1. |
VOE1556599
|
[6] |
Cylinder head
|
|
| 2. |
VOE1556148
|
[12] |
Valve seat
|
Inlet
|
| 3. |
VOE1556149
|
[12] |
Valve seat
|
Outlet
|
| 4. |
VOE20355012
|
[12] |
Valve guide
|
|
| 5. |
VOE20355015
|
[12] |
Valve guide
|
|
| 6. |
VOE1556989
|
[24] |
Core plug
|
|
| 7. |
VOE468463
|
[24] |
Gasket
|
|
| 8. |
VOE14025455
|
[12] |
Cylinder Pin
|
|
| 9. |
VOE1543492
|
[6] |
Pin
|
|
| 10. |
VOE955077
|
[6] |
Plug
|
|
| 11. |
VOE3964715
|
[12] |
Plug
|
|
| 12. |
VOE276836
|
[6] |
Repair kit
|
|
| 13. |
VOE1543223
|
[6] |
Sleeve
|
|
| 14. |
VOE1543606
|
[6] |
Ring
|
|
| 15. |
VOE1543574
|
[6] |
Ring
|
|
| 16. |
VOE1543225
|
[6] |
Sealing ring
|
|
| 17. |
VOE1556073
|
[12] |
Pin
|
|
| 18. |
VOE1556896
|
[12] |
Exhaust valve
|
|
| 19. |
VOE1556064
|
[24] |
Sealing ring
|
|
| 20. |
VOE1543870
|
[12] |
Valve spring
|
|
| 21. |
VOE1543871
|
[12] |
Valve spring
|
|
| 22. |
VOE1543866
|
[12] |
Spring washer
|
|
| 23. |
VOE1543078
|
[48] |
Valve sleeve
|
|
| 24. |
VOE1556813
|
[12] |
Inlet valve
|
|
| 25. |
VOE1543872
|
[12] |
Valve spring
|
|
| 26. |
VOE1543046
|
[12] |
Spring washer
|
|
| 27. |
VOE271085
|
[6] |
Gasket kit
|
|
| 28. |
VOE8192189
|
[12] |
Sealing ring
|
|
| 29. |
VOE1543576
|
[6] |
Sealing ring
|
|
| 30. |
VOE11702307
|
[12] |
Sealing ring
|
|
| 31. |
VOE1556956
|
[36] |
Screw
|
|
