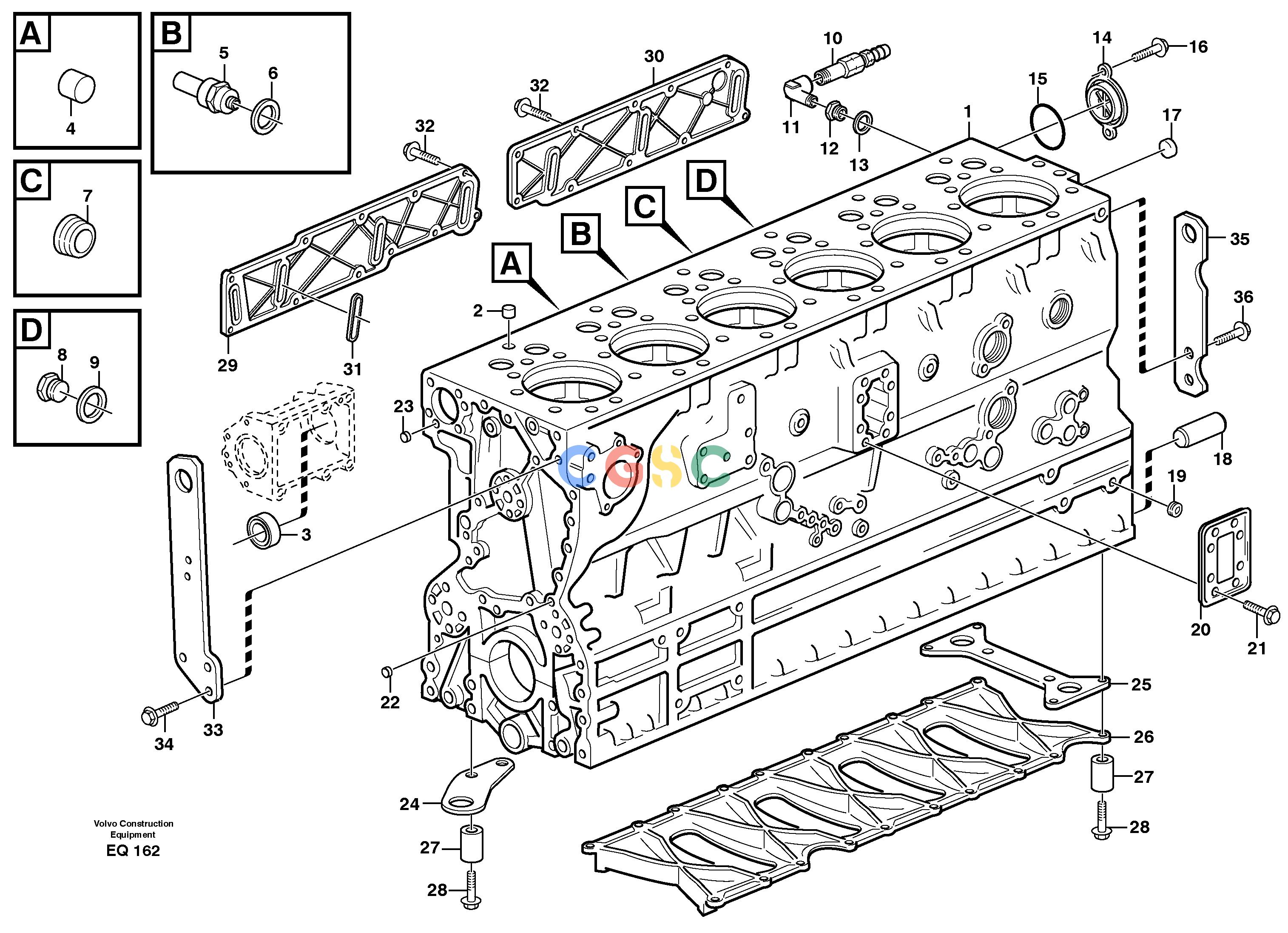

沃尔沃零件查询L330E Cylinder blockNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
679 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cylinder Block
|
|
| 2. |
VOE1543693
|
[6] |
Guide sleeve
|
|
| 3. |
|
[1] |
Sealing ring
|
|
| 4. |
VOE417588
|
[1] |
Guide sleeve
|
|
| 5. |
VOE1077574
|
[1] |
Sensor
|
|
| 6. |
VOE968559
|
[1] |
O-ring
|
|
| 7. |
VOE13968063
|
[1] |
Plug
|
|
| 8. |
VOE960631
|
[1] |
Plug
|
|
| 9. |
VOE13947622
|
[1] |
Plane gasket
|
|
| 10. |
VOE13974320
|
[1] |
Tap
|
|
| 11. |
VOE13977409
|
[1] |
Elbow nipple
|
|
| 12. |
VOE13948867
|
[1] |
Nipple
|
|
| 13. |
VOE13947627
|
[1] |
Plane gasket
|
|
| 14. |
VOE1542242
|
[1] |
Cover
|
|
| 15. |
VOE968971
|
[1] |
O-ring
|
|
| 16. |
VOE13946173
|
[2] |
Screw
|
|
| 17. |
VOE946778
|
[1] |
Cap plug
|
|
| 18. |
VOE191171
|
[2] |
Pin
|
|
| 19. |
VOE981193
|
[1] |
Plug
|
|
| 20. |
VOE1543593
|
[1] |
Hatch
|
|
| 21. |
VOE13965175
|
[8] |
Screw
|
|
| 22. |
VOE13955083
|
[2] |
Cap plug
|
|
| 23. |
VOE13967853
|
[1] |
Cap plug
|
|
| 24. |
VOE1543589
|
[4] |
Stiffening plate
|
|
| 25. |
VOE1556797
|
[5] |
Stiffener
|
|
| 26. |
VOE1556670
|
[1] |
Stiffener
|
|
| 27. |
VOE11999695
|
[8] |
Spacer sleeve
|
|
| 28. |
VOE13965192
|
[28] |
Screw
|
|
| 29. |
VOE1543486
|
[1] |
Hatch
|
|
| 30. |
VOE1543488
|
[1] |
Hatch
|
|
| 31. |
VOE469606
|
[7] |
Sealing ring
|
|
| 32. |
VOE13945444
|
[0001] |
Screw
|
M8 x 25 MM
|
| |
VOE946470
|
[0016] |
Flange screw
|
M8 x 35 MM
|
| |
VOE13948217
|
[2] |
Screw
|
M8 x 45 MM
|
| |
VOE13946752
|
[2] |
Screw
|
M10 x 35 MM
|
| 33. |
VOE1543652
|
[1] |
Tensioner
|
|
| 34. |
VOE13965191
|
[3] |
Screw
|
|
| 35. |
|
[1] |
Tensioner
|
|
| 36. |
VOE60113126
|
[2] |
Flange screw
|
|
