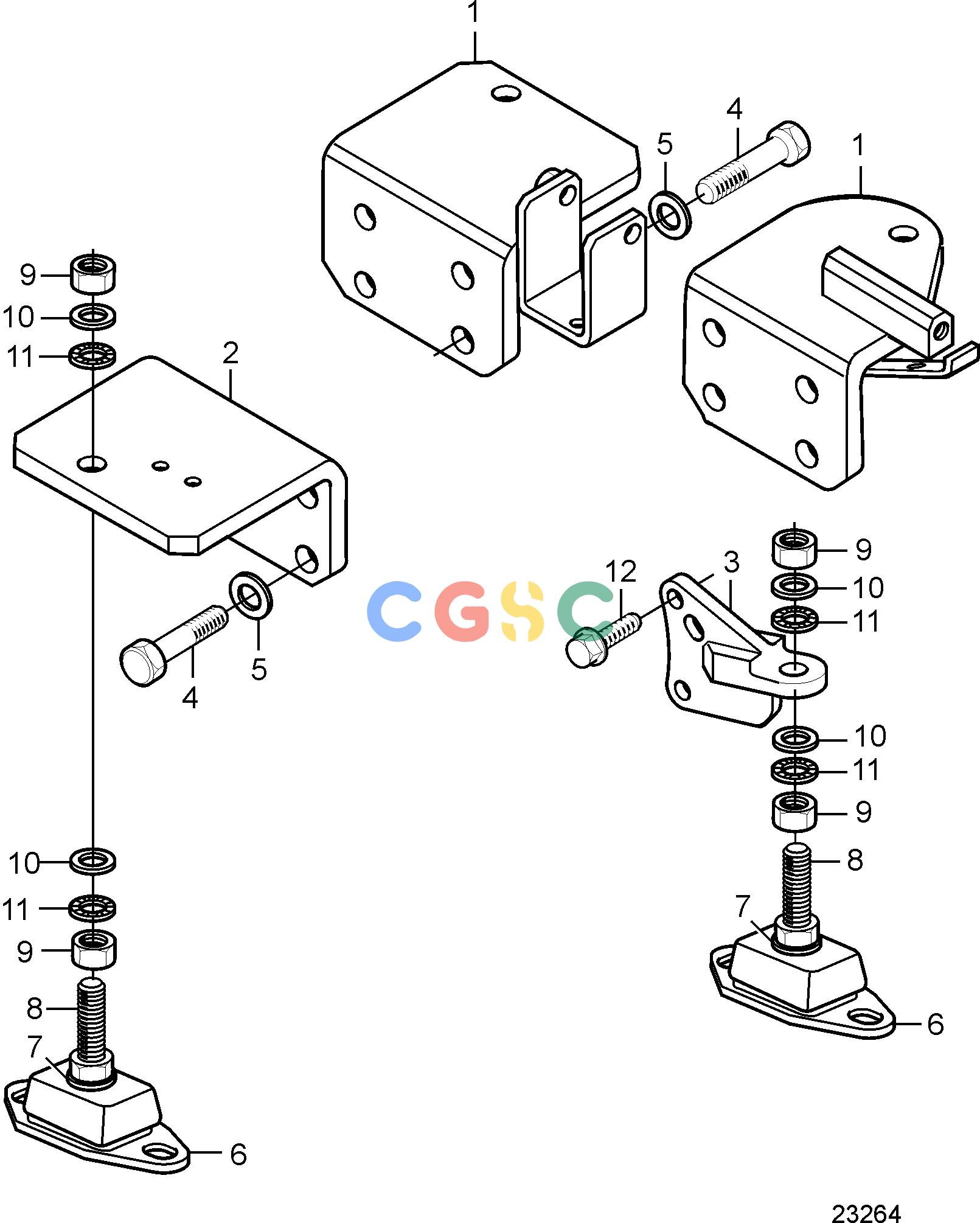

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FEngineEngine Suspension for Reverse GearEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583057
|
[1] |
Engine anchorage, front
|
D2-55A, D2-55B
|
| 1. |
3584087
|
[1] |
Engine anchorage, front
|
D2-55C, D2-55D, D2-55E, D2-55F
|
| 2. |
3583069
|
[1] |
Engine anchorage, front
|
|
| 3. |
859862
|
[2] |
Bracket, rear
|
|
| 4. |
3583794
|
[16] |
Screw
|
|
| 5. |
3583795
|
[16] |
Washer
|
|
| 6. |
846765
|
[4] |
Rubber element
|
|
| 7. |
955900
|
[4] |
Washer
|
|
| 8. |
846768
|
[4] |
Adjusting bolt
|
|
| 9. |
955805
|
[8] |
Hexagon nut
|
|
| 10. |
955900
|
[8] |
Washer
|
|
| 11. |
941912
|
[8] |
Spring washer
|
|
| 12. |
946329
|
[6] |
Flange screw
|
|
