沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FEngineEngine Suspension, Sail Boat Drive UnitEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
348 次

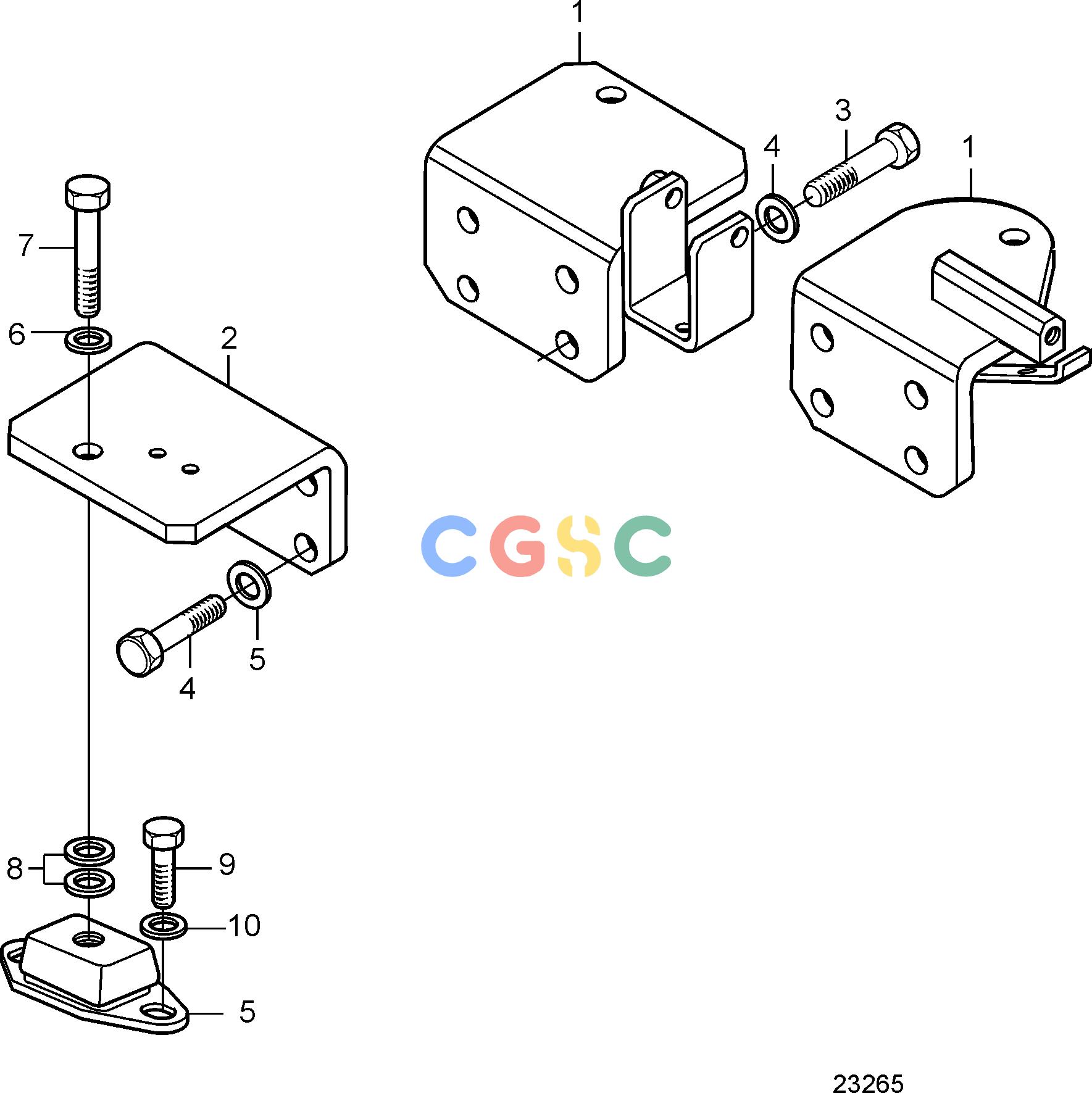

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3583057
|
[1] |
Engine anchorage, front
|
D2-55A, D2-55B
|
| 1. |
3584087
|
[1] |
Engine anchorage, front
|
D2-55C, D2-55D, D2-55E, D2-55F
|
| 2. |
3583069
|
[1] |
Engine anchorage, front
|
|
| 3. |
3583794
|
[16] |
Screw
|
|
| 4. |
3583795
|
[16] |
Washer
|
|
| 5. |
856834
|
[2] |
Rubber cushion
|
|
| 6. |
941912
|
[2] |
Spring washer
|
|
| 7. |
959710
|
[2] |
Hexagon screw
|
|
| 8. |
955900
|
[4] |
Washer
|
|
| 9. |
963580
|
[4] |
Hexagon screw
|
|
| 10. |
976945
|
[4] |
Washer
|
|
