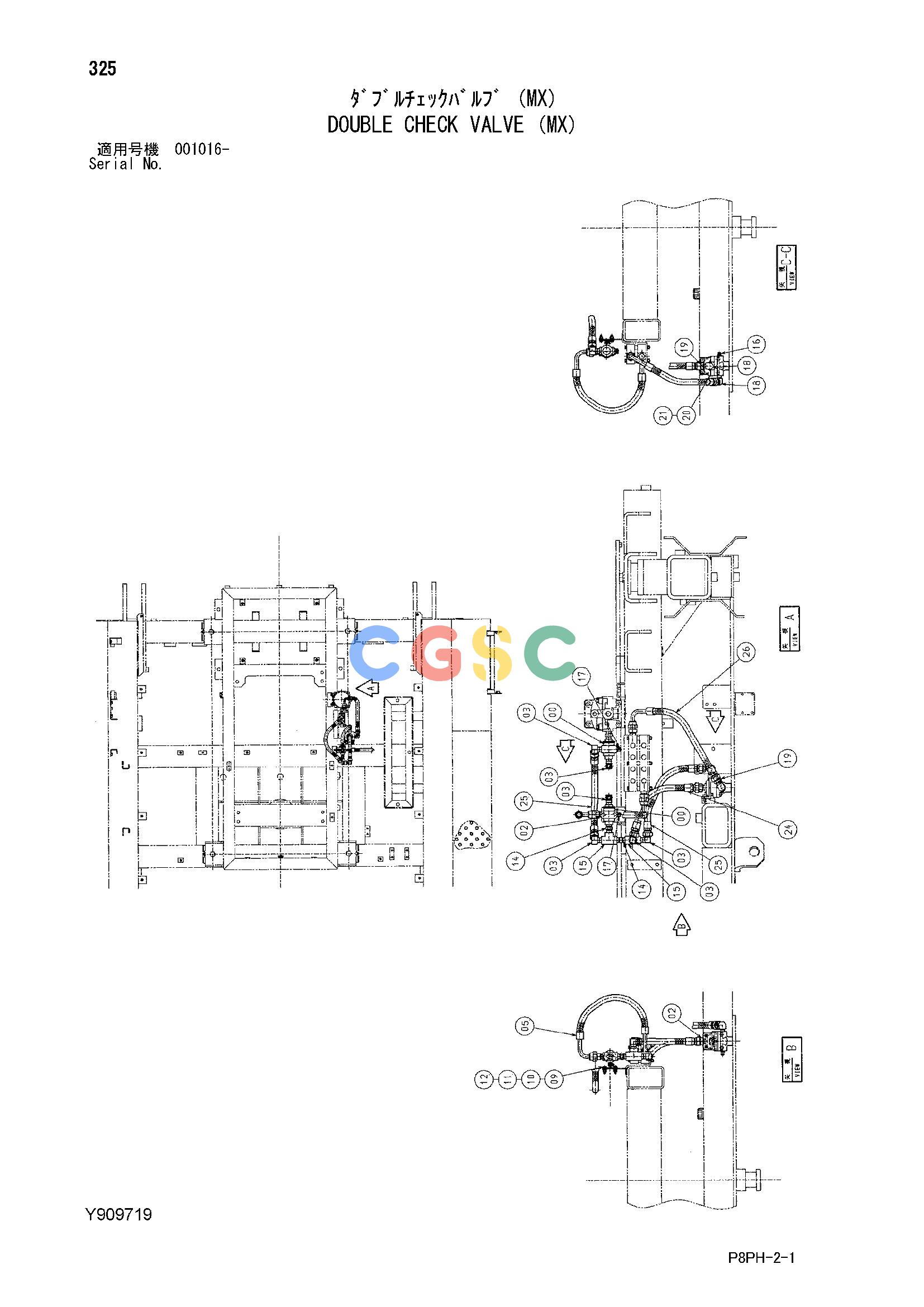

日立零件查询（AR2000）DOUBLE CHECK VALVE (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
910 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y408795 | [2] | VALVE;CHECK | |
| 02. | 4266331 | [2] | ADAPTER;S | |
| 03. | 4200315 | [6] | ELBOW;S | |
| 05. | Y408835 | [1] | HOSE | |
| 09. | J900620 | [2] | BOLT | |
| 10. | M500605 | [2] | NUT | |
| 11. | A590906 | [2] | WASHER;SPRING | |
| 12. | A590106 | [2] | WASHER;PLANE | |
| 14. | 94-1702 | [2] | ADAPTER;S | |
| 15. | 94-0661 | [2] | TEE;S | |
| 16. | 94-2022 | [1] | PLUG | |
| 17. | 94-2023 | [2] | PLUG | |
| 18. | 94-0630 | [2] | ELBOW;S | |
| 19. | Y408936 | [2] | ADAPTER;S | |
| 20. | Y410179 | [1] | VALVE;REDUCING | |
| 21. | J260820 | [2] | BOLT;SEMS | |
| 21A. | J900820 | [1] | BOLT | |
| 21B. | A590108 | [1] | WASHER;PLANE | |
| 24. | 4305001 | [1] | HOSE | |
| 25. | 4305003 | [2] | HOSE | |
| 26. | 4313149 | [1] | HOSE | |
