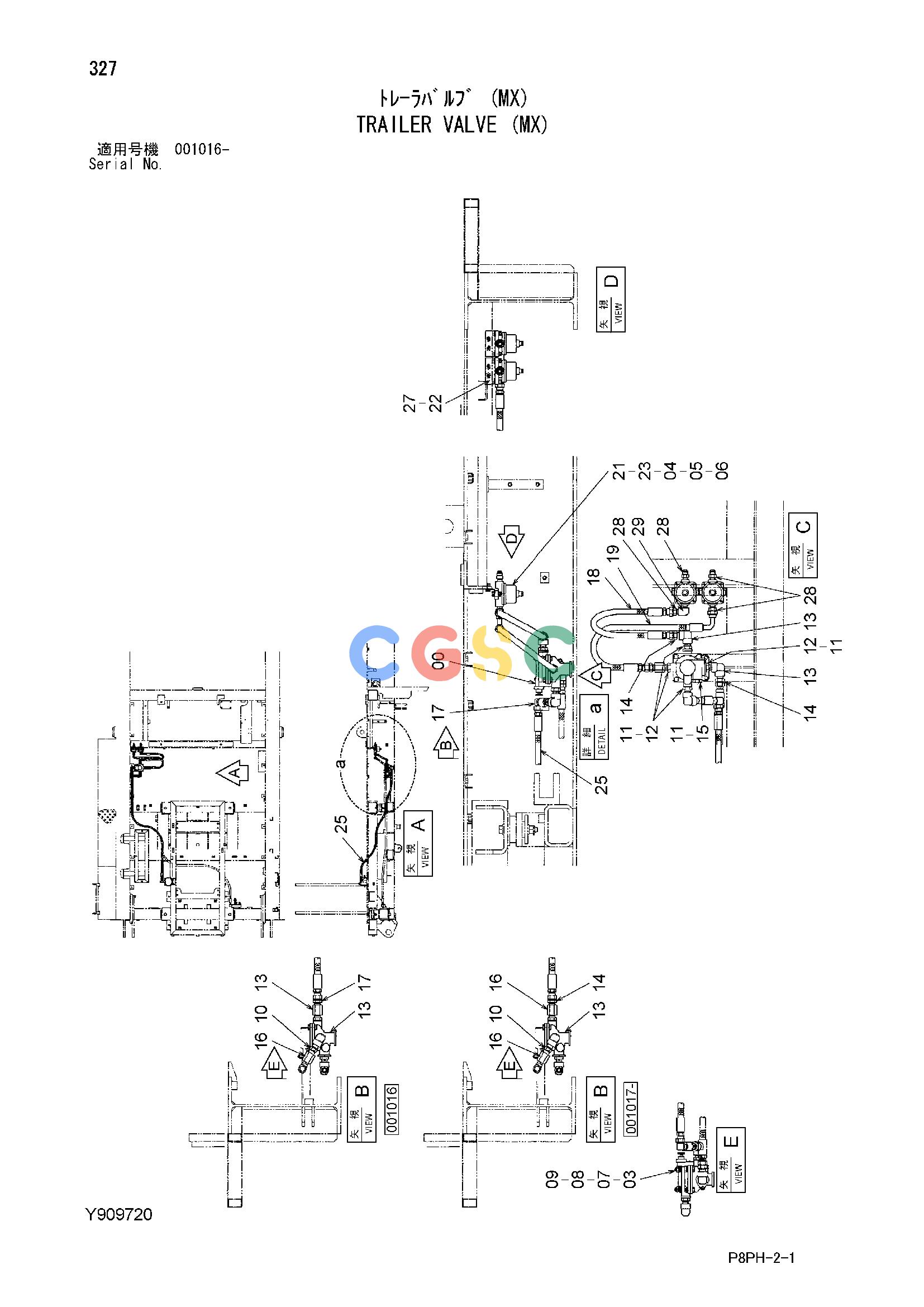

日立零件查询（AR2000）TRAILER VALVE (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
254 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y411258 | [1] | AIR CONTROL | |
| 03. | J901035 | [2] | BOLT | |
| 04. | M500807 | [4] | NUT | |
| 05. | A590908 | [4] | WASHER;SPRING | |
| 06. | A590108 | [4] | WASHER;PLANE | |
| 07. | 4114402 | [2] | WASHER | |
| 08. | A590910 | [2] | WASHER;SPRING | |
| 09. | J950010 | [2] | NUT | |
| 10. | 94-1703 | [1] | ADAPTER;S | |
| 11. | A890022 | [5] | PACKING | |
| 12. | Y408971 | [4] | ADAPTER;S | |
| 13. | 94-0617 | [4] | ELBOW;S | |
| 13. | 94-0617 | [3] | ELBOW;S | |
| 14. | 4221287 | [2] | ADAPTER;S | |
| 14. | 4221287 | [3] | ADAPTER;S | |
| 15. | Y410792 | [1] | CAP | |
| 16. | 94-0677 | [1] | SOCKET;S | |
| 16. | 94-0677 | [2] | SOCKET;S | |
| 17. | 4154658 | [2] | ELBOW;S | |
| 17. | 4154658 | [1] | ELBOW;S | |
| 18. | 4305007 | [1] | HOSE | |
| 19. | 4308024 | [1] | HOSE | |
| 21. | Y408796 | [2] | FILTER;AIR | |
| 22. | Y408862 | [2] | BRACKET | |
| 23. | J900825 | [4] | BOLT | |
| 25. | 4286513 | [1] | HOSE | |
| 27. | J260825 | [4] | BOLT;SEMS | |
| 27A. | J900825 | [1] | BOLT | |
| 27B. | A590108 | [1] | WASHER;PLANE | |
| 28. | 4266331 | [4] | ADAPTER;S | |
| 29. | 94-0631 | [1] | ELBOW;S | |
