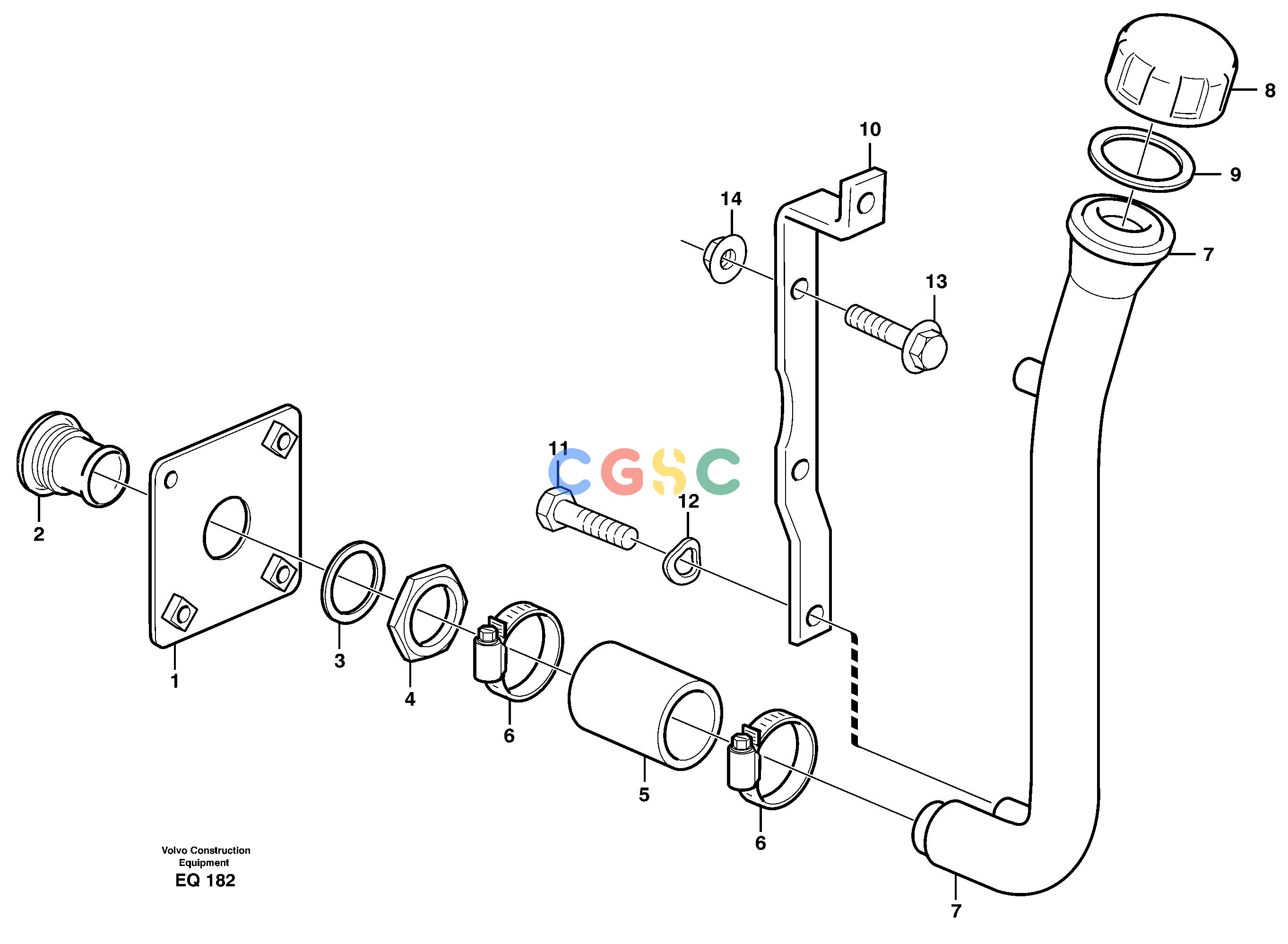

沃尔沃零件查询L330E Filler pipeNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
997 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Cover
|
|
| 2. |
VOE468940
|
[1] |
Hose connection
|
|
| 3. |
VOE468947
|
[1] |
Sealing ring
|
|
| 4. |
VOE468948
|
[1] |
Nut
|
|
| 5. |
VOE942711
|
[REQ] |
Hose
|
L = 45 MM
|
| 6. |
VOE943478
|
[2] |
Hose clamp
|
|
| 7. |
VOE822885
|
[1] |
Filler pipe
|
|
| 8. |
VOE11423437
|
[1] |
Oil filler cap
|
|
| 9. |
VOE1275379
|
[1] |
Gasket
|
|
| 10. |
VOE11031693
|
[1] |
Bracket
|
|
| 11. |
VOE13955523
|
[2] |
Screw
|
|
| 12. |
VOE13941907
|
[2] |
Washer
|
|
| 13. |
VOE13946173
|
[2] |
Screw
|
|
| 14. |
VOE13945408
|
[2] |
Nut
|
|
