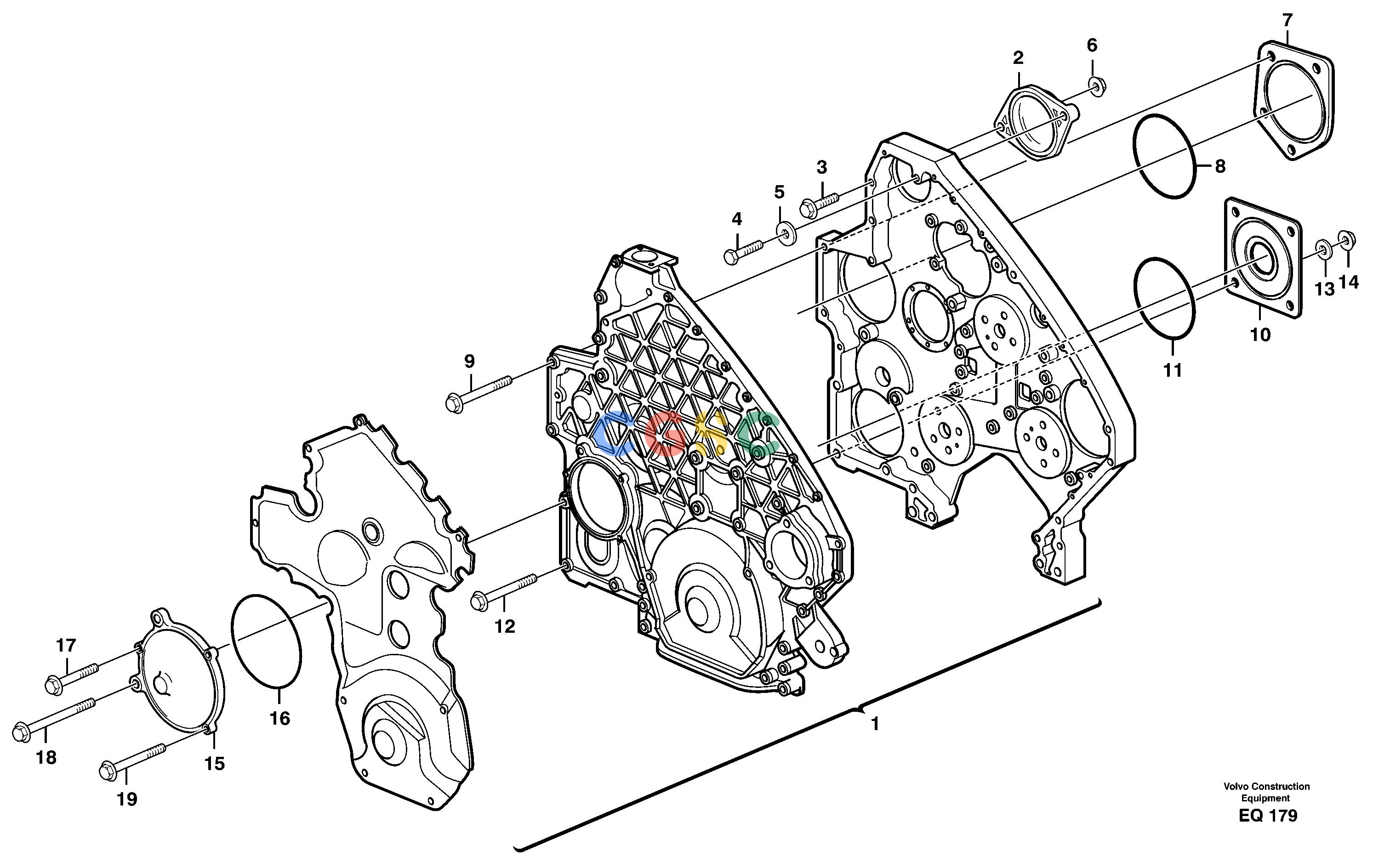

沃尔沃零件查询L330E Timing gear casing and coversNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
572 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Tmg gear casing
|
|
| 2. |
VOE468093
|
[1] |
Cover
|
|
| 3. |
VOE13965189
|
[1] |
Screw
|
|
| 4. |
VOE970961
|
[1] |
Hexagon screw
|
|
| 5. |
VOE190509
|
[1] |
Washer
|
|
| 6. |
VOE13971095
|
[2] |
Flange nut
|
|
| 7. |
VOE1556208
|
[1] |
Cover
|
|
| 8. |
VOE13948888
|
[1] |
O-ring
|
|
| 9. |
VOE946473
|
[1] |
Flange screw
|
L = 90 MM
|
| 10. |
VOE11032078
|
[1] |
Cover
|
|
| 11. |
VOE13948888
|
[1] |
O-ring
|
|
| 12. |
VOE946473
|
[1] |
Flange screw
|
L = 90 MM
|
| |
VOE965197
|
[1] |
Flange screw
|
L = 100 MM
|
| |
VOE997955
|
[1] |
Hexagon screw
|
L = 140 MM
|
| 13. |
VOE60110353
|
[1] |
Washer
|
|
| 14. |
VOE971096
|
[3] |
Flange nut
|
|
| 15. |
VOE1556347
|
[1] |
Hatch
|
|
| 16. |
VOE1556612
|
[1] |
O-ring
|
|
| 17. |
VOE13965182
|
[1] |
Screw
|
|
| 18. |
VOE13946474
|
[1] |
Flange screw
|
|
| 19. |
VOE13946173
|
[2] |
Screw
|
|
