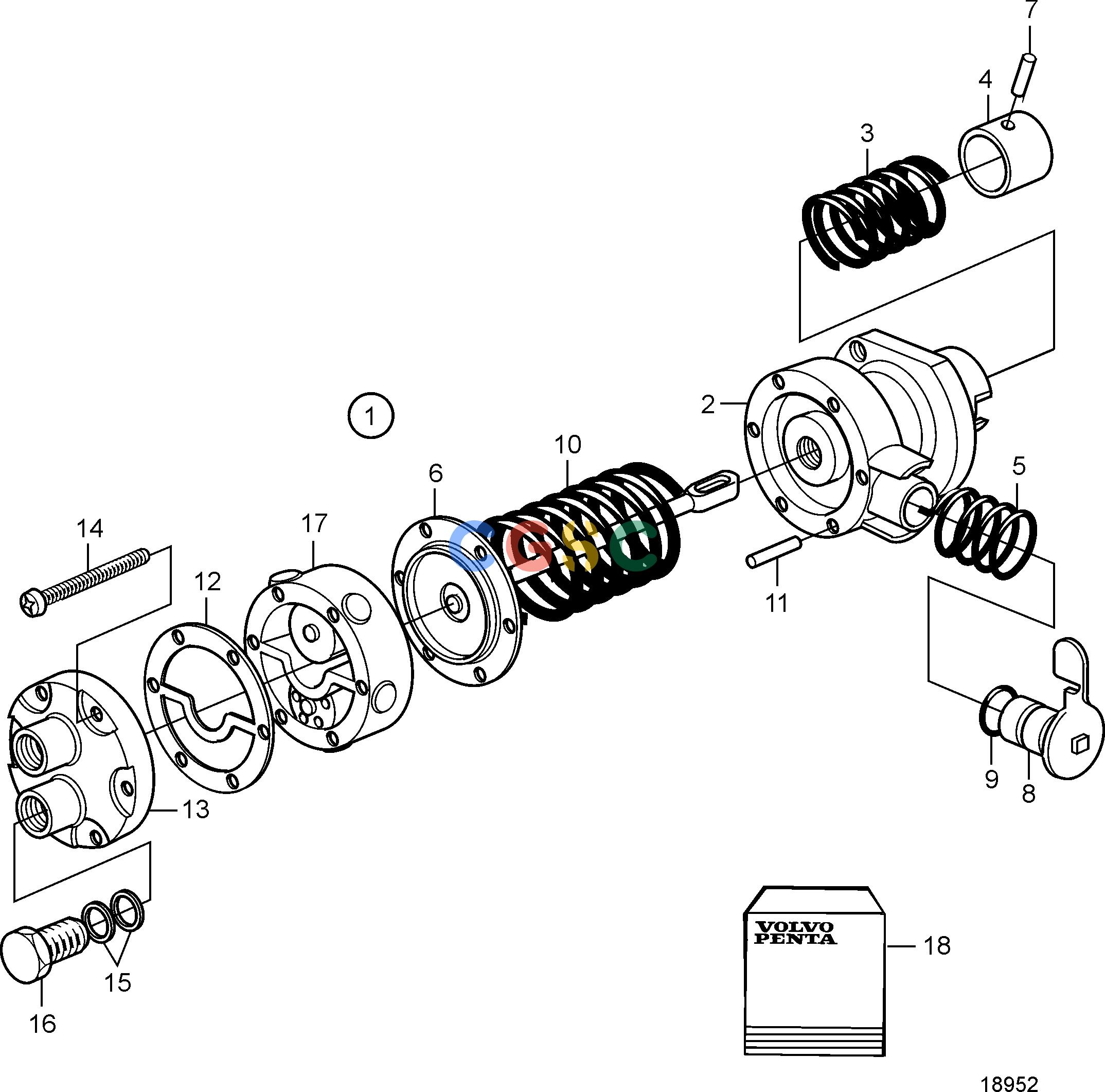

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FFuel SystemFuel Feed Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
866 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580100
|
[1] |
Feed pump
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
Included in overhaul kit.
|
| 4. |
3580192
|
[1] |
Tappet
|
|
| 5. |
|
|
|
Included in overhaul kit.
|
| 6. |
|
|
|
Included in overhaul kit.
|
| 7. |
|
|
|
Included in overhaul kit.
|
| 8. |
|
|
|
Included in overhaul kit.
|
| 9. |
3580197
|
[1] |
O-ring
|
Included in overhaul kit.
|
| 10. |
|
|
|
Included in overhaul kit.
|
| 11. |
|
|
|
Included in overhaul kit.
|
| 12. |
3580200
|
[1] |
Gasket
|
Included in overhaul kit.
|
| 13. |
|
|
|
|
| 14. |
3580202
|
[6] |
Screw
|
|
| 15. |
11992
|
[4] |
Gasket
|
|
| 16. |
3580204
|
[2] |
Hollow screw
|
|
| 17. |
|
|
|
|
| 18. |
876688
|
[1] |
Repair kit
|
|
