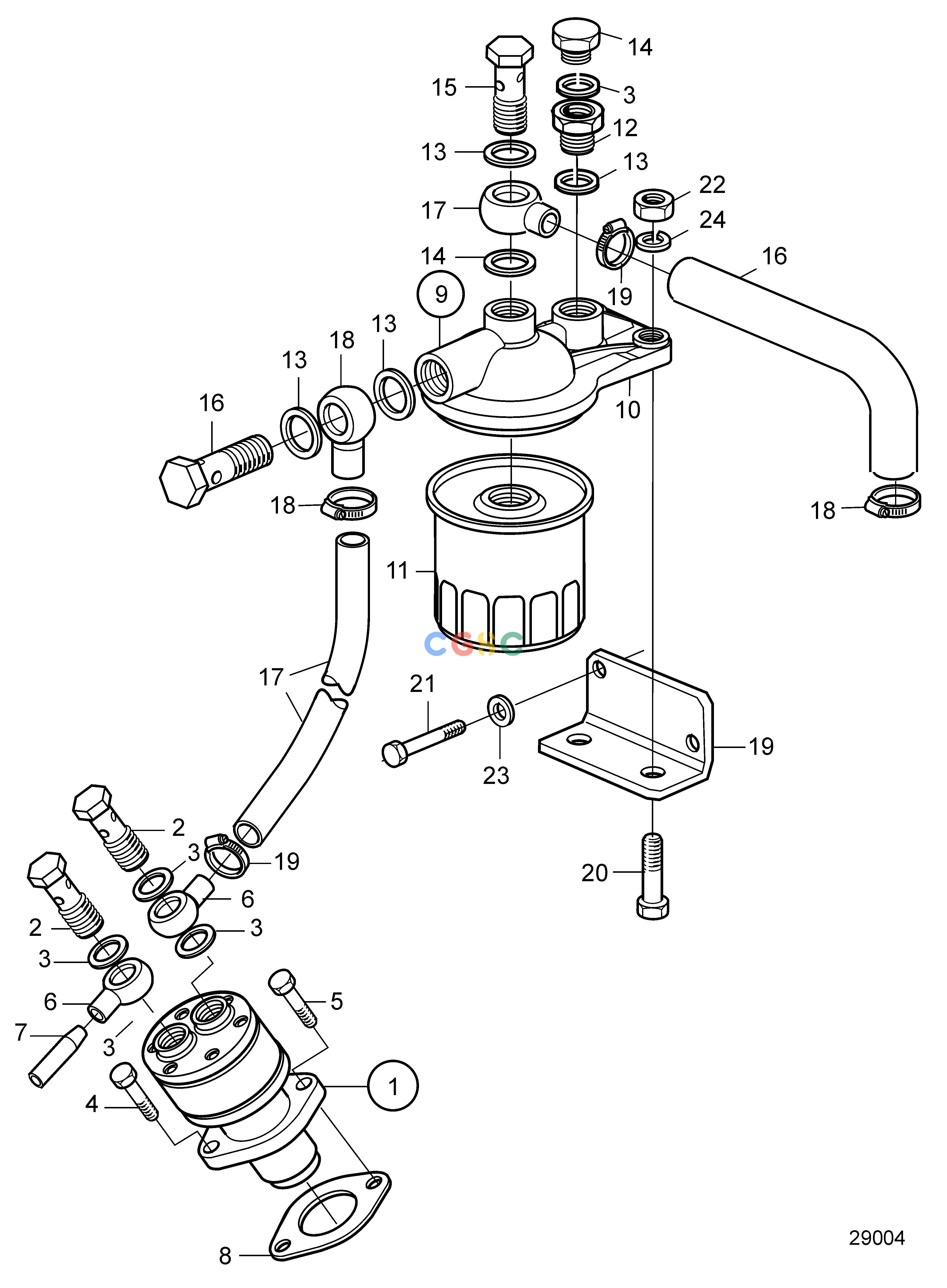

沃尔沃零件查询D2-55; D2-55B; D2-55C; D2-55D; D2-55E; D2-55FFuel SystemFuel Filter and Feed PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
487 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580100
|
[1] |
Feed pump
|
|
| 1. |
|
|
|
|
| 2. |
3580204
|
[2] |
Hollow screw
|
|
| 3. |
11992
|
[5] |
Gasket
|
|
| 4. |
3583785
|
[1] |
Screw
|
L=14mm
|
| 5. |
3580269
|
[1] |
Screw
|
L=16mm
|
| 6. |
3580107
|
[2] |
Banjo nipple
|
|
| 7. |
3582507
|
[1] |
Strainer
|
|
| 8. |
3580111
|
[1] |
Gasket
|
|
| 9. |
3580095
|
[1] |
Fuel filter
|
|
| 10. |
|
|
|
|
| 11. |
861477
|
[1] |
Fuel filter
|
|
| 12. |
837322
|
[1] |
Nipple
|
|
| 13. |
969011
|
[5] |
Gasket
|
|
| 14. |
471177
|
[1] |
Hollow screw
|
|
| 15. |
3580098
|
[2] |
Hollow screw
|
|
| 16. |
3583782
|
[2] |
Hose
|
|
| 17. |
3580101
|
[2] |
Banjo nipple
|
|
| 18. |
961664
|
[4] |
Hose clamp
|
|
| 19. |
3583558
|
[1] |
Bracket
|
|
| 20. |
946173
|
[2] |
Flange screw
|
(861849)
|
| 21. |
3583783
|
[2] |
Screw
|
|
| 22. |
971071
|
[2] |
Hexagon nut
|
|
| 23. |
955894
|
[2] |
Washer
|
|
| 24. |
3580015
|
[2] |
Spring washer
|
|
