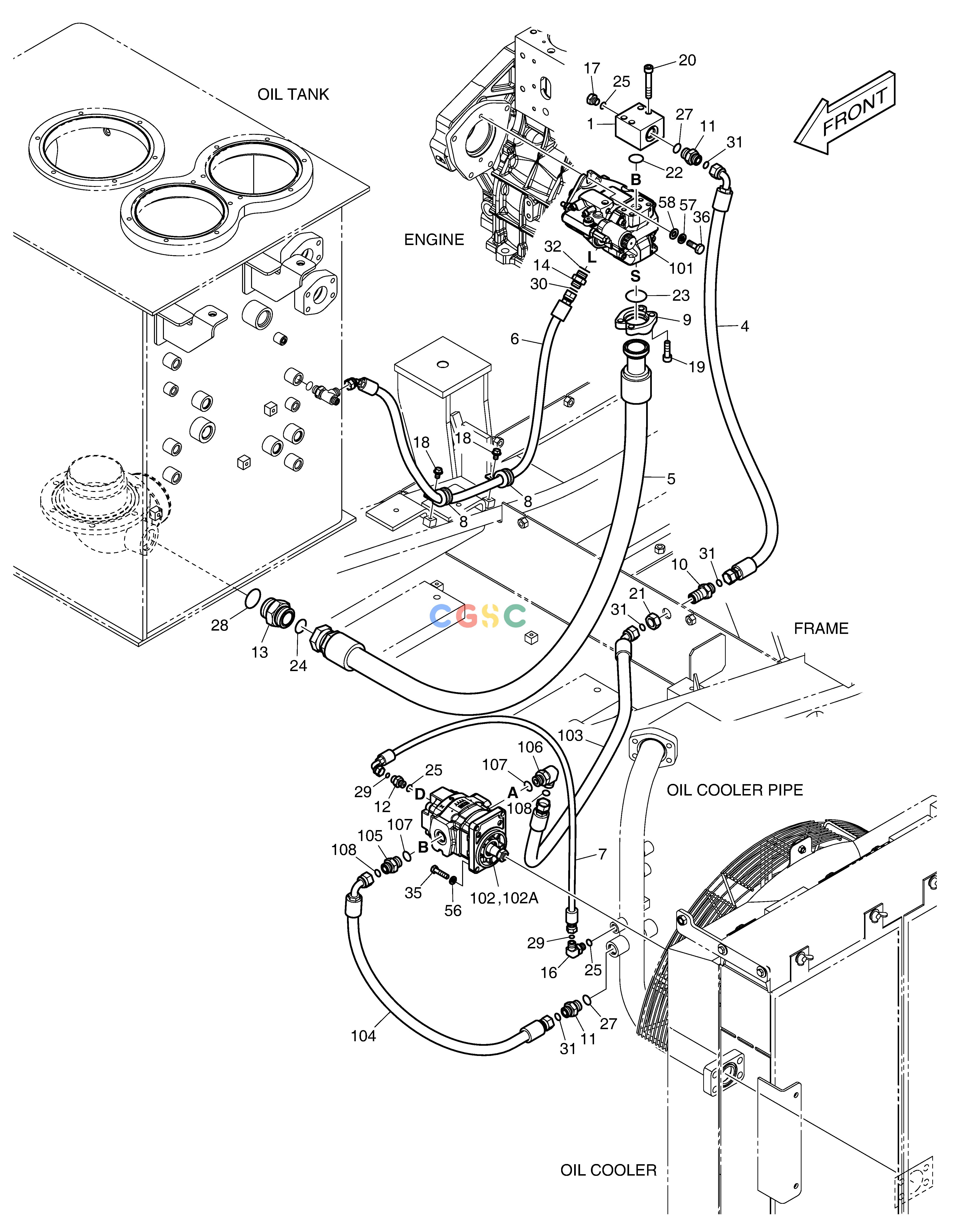

斗山零件查询MAIN PIPING(6) - FAN DRIVE DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
744 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-11043
|
[-] |
|
|
| 1. |
100201-00308A
|
[1] |
|
|
| 10. |
181-00128D3
|
[1] |
ADAPTER
|
|
| 101. |
400911-00148
|
[1] |
|
|
| 102. |
400702-00084
|
[1] |
|
|
| 102A. |
401107-01051
|
[1] |
|
|
| 103. |
DS2012907
|
[1] |
|
|
| 104. |
DS20132476
|
[1] |
|
|
| 105. |
2181-4133D3
|
[1] |
ADAPTER
|
|
| 106. |
2181-2815D3
|
[1] |
ELBOW
|
|
| 107. |
S8000181
|
[2] |
O-RING
|
|
| 108. |
S8030081
|
[2] |
O-RING
|
|
| 11. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 12. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 13. |
2181-4133D35
|
[1] |
ADAPTER
|
|
| 14. |
2181-4133D33
|
[1] |
ADAPTER
|
|
| 16. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 17. |
2181-1950D1
|
[1] |
PLUG
|
|
| 18. |
K1001029
|
[2] |
BOLT
|
|
| 19. |
S2212266
|
[4] |
BOLT
|
|
| 20. |
S2212966
|
[4] |
BOLT;SOCKET M10X1.5X65
|
|
| 21. |
121-00010D5
|
[1] |
NUT
|
|
| 22. |
2180-1026D2
|
[1] |
O-RING
|
|
| 23. |
2180-1026D23
|
[1] |
O-RING
|
|
| 24. |
S8030201
|
[1] |
|
|
| 25. |
S8000111
|
[3] |
O-RING
|
|
| 27. |
S8000181
|
[2] |
O-RING
|
|
| 28. |
S8000381
|
[1] |
O-RING
|
|
| 29. |
S8030041
|
[2] |
O-RING
|
|
| 30. |
S8030061
|
[1] |
O-RING
|
|
| 31. |
S8030081
|
[4] |
O-RING
|
|
| 32. |
S8040081
|
[1] |
O-RING
|
|
| 35. |
S0509266
|
[4] |
BOLT
|
|
| 36. |
S0512066
|
[2] |
. BOLT
|
|
| 4. |
DS2013446
|
[1] |
HOSE ORFS13/16-825L
|
|
| 5. |
DS2016171
|
[1] |
|
|
| 56. |
S5102503
|
[4] |
. WASHER
|
|
| 57. |
S5102603
|
[2] |
. WASHER
|
|
| 58. |
S5010613
|
[2] |
WASHER
|
|
| 6. |
DS2120122
|
[1] |
|
|
| 7. |
DS2121178
|
[1] |
|
|
| 8. |
124-00208D3
|
[2] |
CLIP
|
|
| 9. |
4215-1003D4
|
[2] |
FLANGE
|
|
