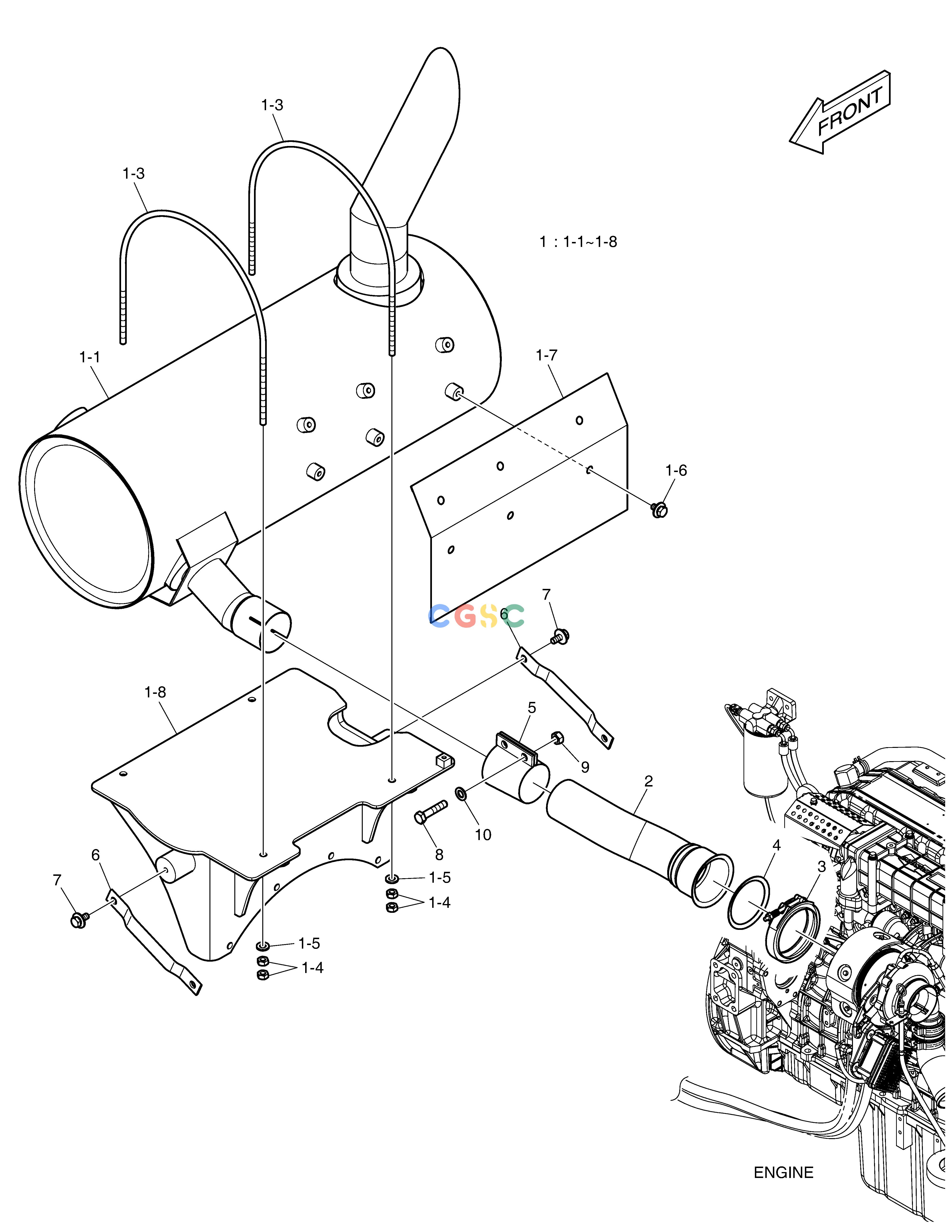

斗山零件查询MUFFLER DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
150109-00938
|
[-] |
|
|
| 1. |
240103-00436A
|
[1] |
|
|
| 1-1. |
240103-00533
|
[1] |
|
|
| 1-3. |
K1023547
|
[2] |
BOLT;U
|
|
| 1-4. |
S4012633
|
[8] |
NUT
|
|
| 1-5. |
2114-1058D63
|
[4] |
WASHER
|
|
| 1-6. |
DS0025013
|
[6] |
BOLT
|
|
| 1-7. |
K1004466
|
[1] |
PLATE;INSULATION
|
|
| 1-8. |
110406-02417A
|
[1] |
|
|
| 10. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 2. |
420203-00304
|
[1] |
|
|
| 3. |
120202-00018
|
[1] |
|
|
| 4. |
400612-00011
|
[1] |
|
|
| 5. |
124-00310A
|
[1] |
CLAMP
|
|
| 6. |
K1004507
|
[2] |
STAY
|
|
| 7. |
DS0025017
|
[4] |
BOLT
|
|
| 8. |
S0515866
|
[2] |
BOLT
|
|
| 9. |
S4012733
|
[2] |
NUT
|
|
