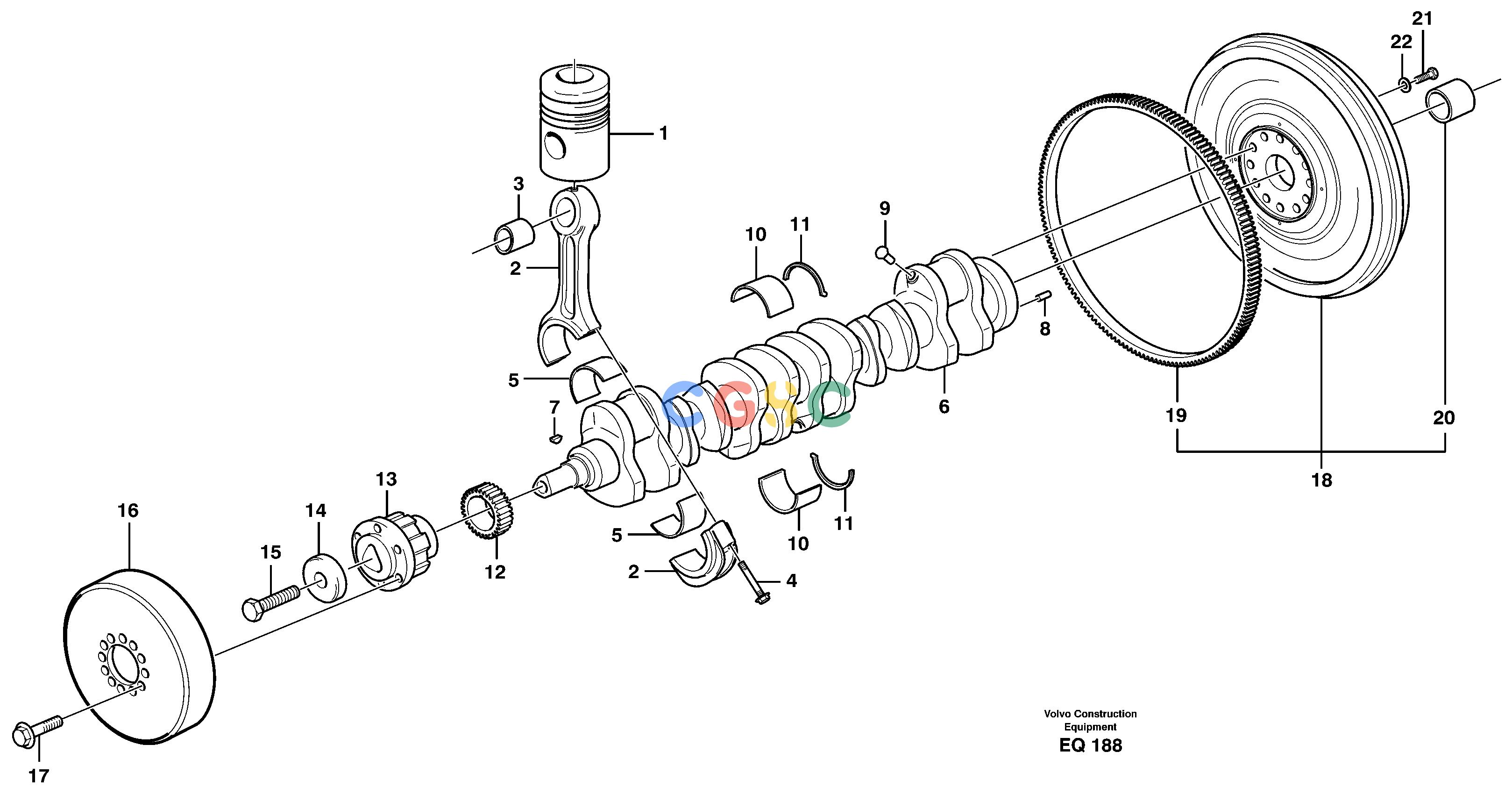

沃尔沃零件查询L330E Crankshaft and related partsNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
977 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE1556963
|
[0006] |
Piston
|
|
| 2. |
VOE1556319
|
[6] |
Connecting rod
|
|
| 3. |
VOE1556321
|
[6] |
Bushing
|
|
| 4. |
VOE1543035
|
[6] |
Screw
|
|
| 5. |
VOE270796
|
[6] |
Piston Bearing
|
STD
|
| |
VOE270797
|
[6] |
Piston Bearing
|
0,25 MM U SZ
|
| |
VOE270798
|
[6] |
Piston Bearing
|
0,50 MM U SZ
|
| |
VOE270799
|
[6] |
Piston Bearing
|
0,75 MM U SZ
|
| 6. |
VOE24424603
|
[1] |
Crankshaft
|
|
| 7. |
VOE422253
|
[1] |
Key
|
|
| 8. |
VOE950644
|
[1] |
Pin
|
|
| 9. |
VOE13978130
|
[6] |
Plug
|
|
| 10. |
VOE270792
|
[7] |
Main bearing kit
|
STD
|
| |
VOE270793
|
[7] |
Main bearing kit
|
0,25 MM U SZ
|
| |
VOE270794
|
[7] |
Main bearing kit
|
0,50 MM U SZ
|
| |
VOE270795
|
[7] |
Main bearing kit
|
0,75 MM U SZ
|
| 11. |
VOE270929
|
[1] |
Thrust washer kit
|
STD
|
| |
VOE270930
|
[1] |
Thrust washer kit
|
0,10 MM O SZ
|
| |
VOE270931
|
[1] |
Thrust washer kit
|
0,20 MM O SZ
|
| |
VOE270932
|
[1] |
Thrust washer kit
|
0,30 MM O SZ
|
| 12. |
VOE1556173
|
[1] |
Gear
|
|
| 13. |
VOE1556974
|
[1] |
Hub
|
|
| 14. |
VOE422124
|
[1] |
Washer
|
|
| 15. |
VOE1543316
|
[1] |
Screw
|
|
| 16. |
VOE1543834
|
[1] |
Vibration damper
|
|
| 17. |
VOE13965220
|
[12] |
Screw
|
|
| 18. |
VOE11032179
|
[1] |
Flywheel
|
|
| 19. |
VOE20711957
|
[1] |
Ring gear
|
|
| 20. |
VOE11031838
|
[1] |
Sleeve
|
|
| 21. |
VOE1677893
|
[14] |
Screw
|
|
| 22. |
VOE1543563
|
[14] |
Washer
|
|
