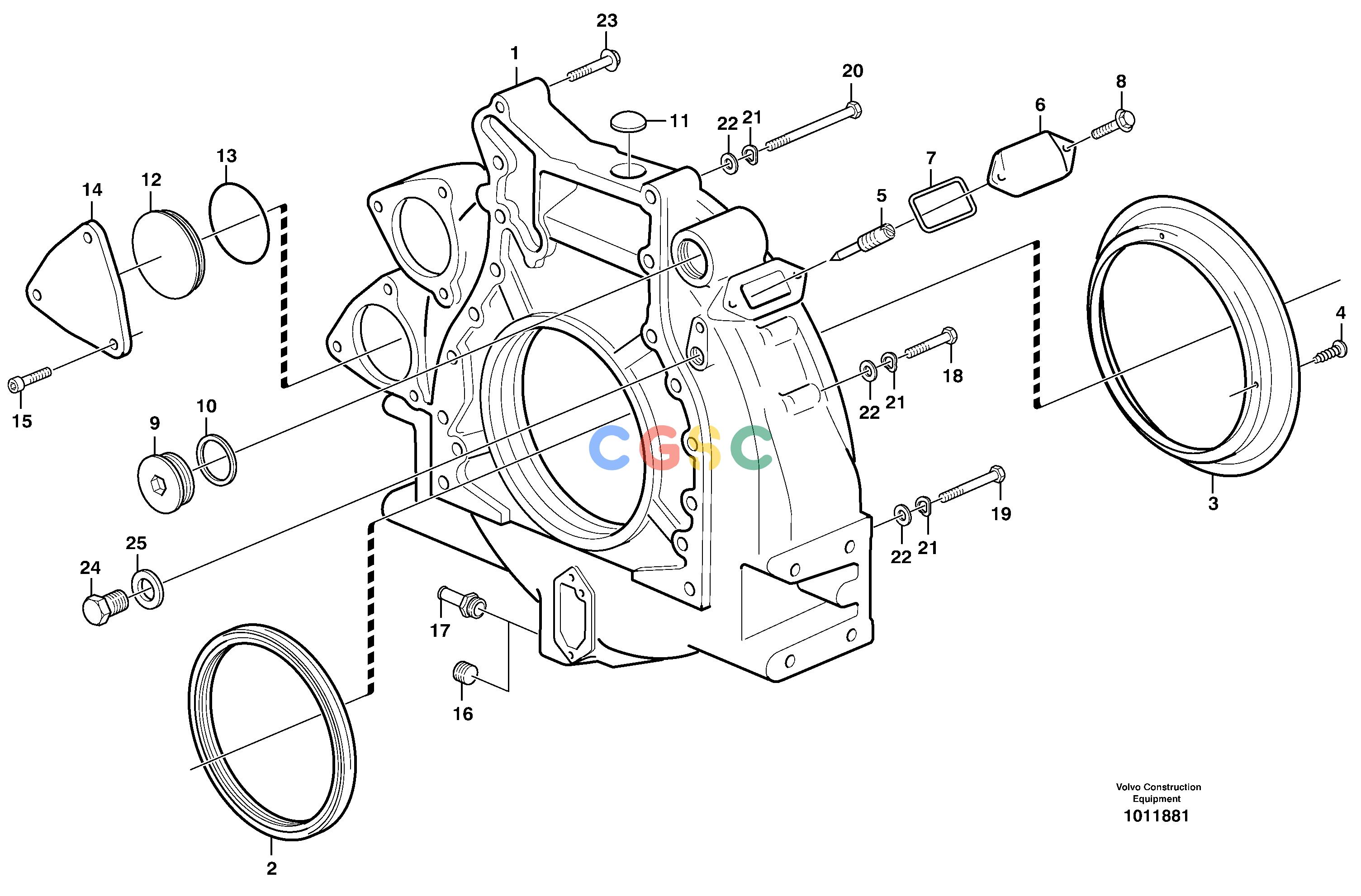

沃尔沃零件查询L330E Flywheel housingNone NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11032206
|
[1] |
Flywheel housing
|
|
| 2. |
VOE1543896
|
[1] |
Sealing ring
|
|
| 3. |
VOE11030271
|
[1] |
Oil deflector ring
|
|
| 4. |
VOE13905650
|
[4] |
Drive screw
|
|
| 5. |
VOE1543173
|
[1] |
Setting indicator
|
|
| 6. |
VOE4772168
|
[2] |
Cover
|
|
| 7. |
VOE4804167
|
[2] |
Gasket
|
|
| 8. |
VOE13946934
|
[4] |
Screw
|
|
| 9. |
VOE467367
|
[1] |
Plug
|
|
| 10. |
VOE1556907
|
[1] |
Gasket
|
|
| 11. |
VOE955100
|
[1] |
Expansion plug
|
|
| 12. |
VOE11032027
|
[1] |
Cover
|
|
| 13. |
VOE967344
|
[1] |
O-ring
|
|
| 14. |
VOE849135
|
[1] |
Cover
|
|
| 15. |
VOE13959253
|
[3] |
Allen Hd Screw
|
|
| 16. |
VOE968145
|
[1] |
Plug
|
|
| 17. |
|
[1] |
Nipple
|
|
| 18. |
VOE997967
|
[10] |
Hexagon screw
|
|
| 19. |
VOE971005
|
[2] |
Hexagon screw
|
M14 x 80 MM
|
| 20. |
VOE13971008
|
[2] |
Hexagon screw
|
M14 x 110 MM
|
| 21. |
VOE941911
|
[14] |
Spring washer
|
|
| 22. |
VOE955899
|
[14] |
Plain washer
|
|
| 23. |
VOE13965181
|
[1] |
Screw
|
|
| 24. |
VOE180761
|
[1] |
Plug
|
|
| 25. |
VOE13947622
|
[1] |
Plane gasket
|
|
