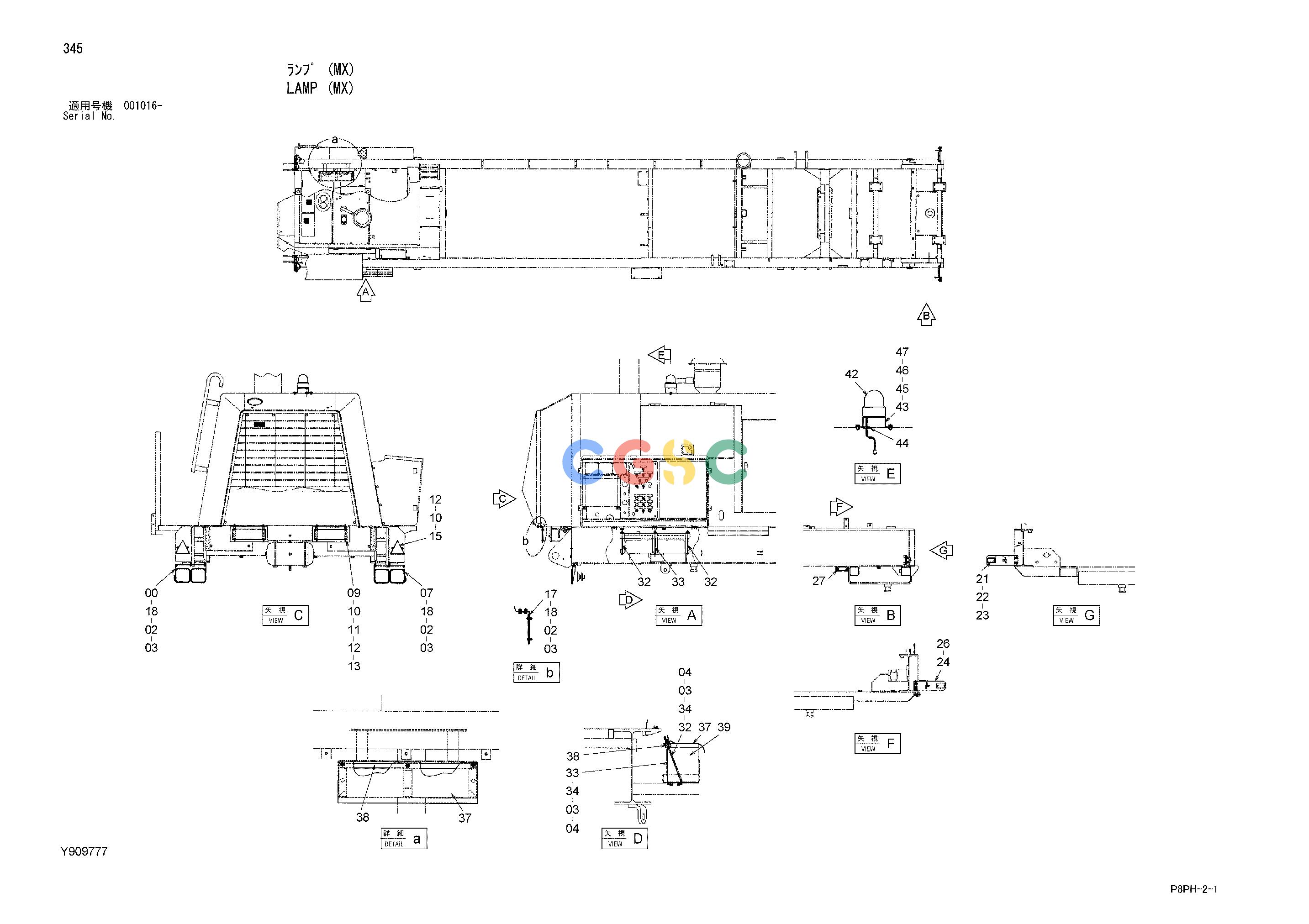

日立零件查询（AR2000）LAMP (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
427 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y410430 | [1] | LAMP;TAIL (L) | |
| 02. | A590908 | [12] | WASHER;SPRING | |
| 03. | A590108 | [18] | WASHER;PLANE | |
| 04. | M500807 | [6] | NUT | |
| 07. | Y410429 | [1] | LAMP;TAIL (R) | |
| 09. | Y410427 | [1] | REFLECTOR | |
| 10. | M430620 | [12] | SCREW | |
| 11. | A590906 | [8] | WASHER;SPRING | |
| 12. | A590106 | [20] | WASHER;PLANE | |
| 13. | M500605 | [8] | NUT | |
| 15. | Y410428 | [2] | REFLECTOR | |
| 17. | Y410446 | [4] | BRACKET | |
| 18. | J900820 | [12] | BOLT | |
| 21. | Y410426 | [2] | LAMP;CLEARANCE | |
| 22. | A590104 | [4] | WASHER;PLANE | |
| 23. | M500403 | [4] | NUT | |
| 24. | Y971419 | [2] | BRACKET | |
| 26. | J271020 | [4] | BOLT;SEMS | |
| 26A. | J901020 | [1] | BOLT | |
| 26B. | J222010 | [1] | WASHER | |
| 27. | Y403964 | [2] | LAMP;SIDE | |
| 32. | 4305880 | [2] | BOLT | |
| 32. | Y414252 | [2] | BOLT | |
| 33. | 4338536 | [1] | BOLT | |
| 33. | Y414251 | [1] | BOLT | |
| 34. | M570008 | [3] | NUT;WING | |
| 37. | Y410284 | [1] | RUBBER | |
| 37. | Y414253 | [1] | RUBBER | |
| 38. | 9745586 | [1] | HOLDER | |
| 38. | Y971601 | [1] | HOLDER | |
| 39. | 4187027 | [2] | BATTERY | |
| 39. | 4628452 | [2] | BATTERY | |
| 42. | 4310604 | [1] | PATLITE | |
| 43. | Y407719 | [1] | BRACKET | |
| 44. | 94-2816 | [2] | BUSHING;RUBBER | |
| 45. | J901020 | [2] | BOLT | |
| 46. | A590910 | [2] | WASHER;SPRING | |
| 47. | J950010 | [2] | NUT | |
