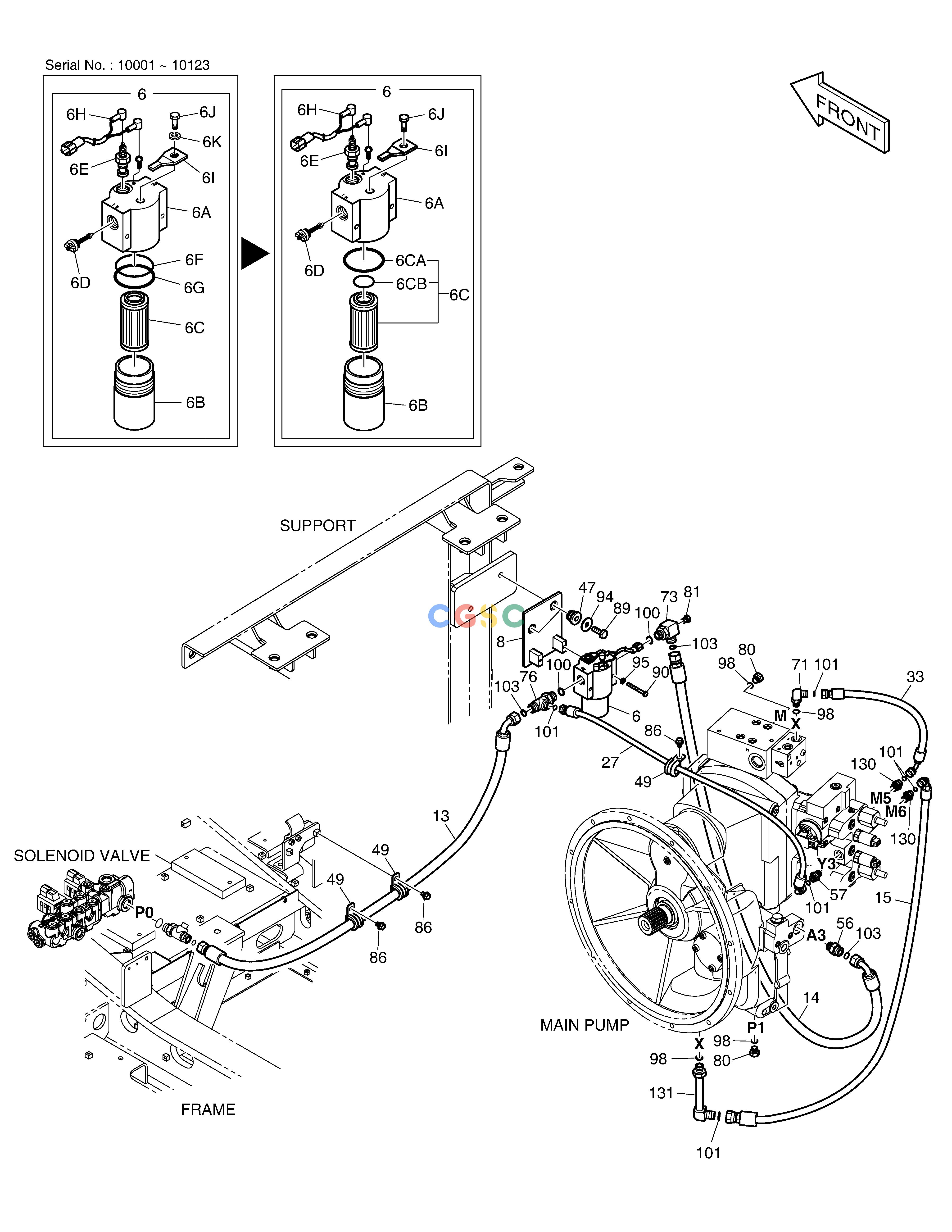

斗山零件查询PILOT PIPING(1) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
180 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01115
|
[-] |
|
|
| 100. |
S8000181
|
[2] |
O-RING
|
|
| 101. |
S8030041
|
[6] |
O-RING
|
|
| 103. |
S8030081
|
[3] |
O-RING
|
|
| 13. |
DS20131691
|
[1] |
|
|
| 130. |
430201-00612
|
[2] |
|
|
| 130. |
430201-00182
|
[2] |
|
|
| 131. |
DS2304138
|
[1] |
|
|
| 14. |
DS20132197
|
[1] |
|
|
| 15. |
DS2121004
|
[1] |
|
|
| 27. |
DS2121162
|
[1] |
|
|
| 33. |
DS20131865
|
[1] |
|
|
| 47. |
198-00016
|
[2] |
RUBBER
|
|
| 49. |
124-00208D3
|
[3] |
CLIP
|
|
| 56. |
430201-00110
|
[1] |
|
|
| 57. |
430201-00182
|
[1] |
|
|
| 6. |
400407-00006
|
[1] |
FILTER,PILOT
|
|
| 6. |
471-00075A
|
[1] |
FILTER;PILOT
|
400407-00006
|
| 6A. |
NA00509
|
[1] |
. HEAD
|
|
| 6B. |
110913-00333
|
[1] |
|
|
| 6B. |
2472-7003
|
[1] |
CASE
|
|
| 6C. |
400504-00241
|
[1] |
ELEMENT,FILTER
|
|
| 6C. |
2471-1154
|
[1] |
ELEMENT;PILOT FILTER
|
|
| 6CA. |
401002-01472
|
[1] |
. O-RING
|
|
| 6CB. |
401002-01473
|
[1] |
. O-RING
|
|
| 6D. |
410128-00073
|
[1] |
|
|
| 6D. |
2426-1237
|
[1] |
VALVE;BY-PASS
|
|
| 6E. |
800217-00115
|
[1] |
|
|
| 6E. |
2471-1155A
|
[1] |
INDICATOR
|
|
| 6F. |
Y-3738-04
|
[1] |
O-RING
|
|
| 6G. |
Y-3738-05
|
[1] |
RING;BACK UP
|
|
| 6H. |
310207-03984
|
[1] |
|
|
| 6H. |
530-00236
|
[1] |
HARNESS;PILOT FILTER
|
|
| 6I. |
2197-1661
|
[1] |
BRACKET
|
|
| 6J. |
S0508653
|
[1] |
BOLT
|
|
| 6K. |
S5102503
|
[1] |
. WASHER
|
|
| 71. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 73. |
DS2470005
|
[1] |
|
|
| 76. |
181-00121D6
|
[1] |
|
|
| 8. |
110413-00011A
|
[1] |
|
|
| 80. |
2181-1950D1
|
[2] |
PLUG
|
|
| 81. |
2181-2047A
|
[1] |
PLUG
|
|
| 86. |
K1001029
|
[3] |
BOLT
|
|
| 89. |
S0512266
|
[2] |
BOLT
|
|
| 90. |
S0553766
|
[2] |
BOLT
|
|
| 94. |
2114-1058D10
|
[2] |
WASHER
|
|
| 95. |
S5102303
|
[2] |
. WASHER
|
|
| 98. |
S8000111
|
[4] |
O-RING
|
|
