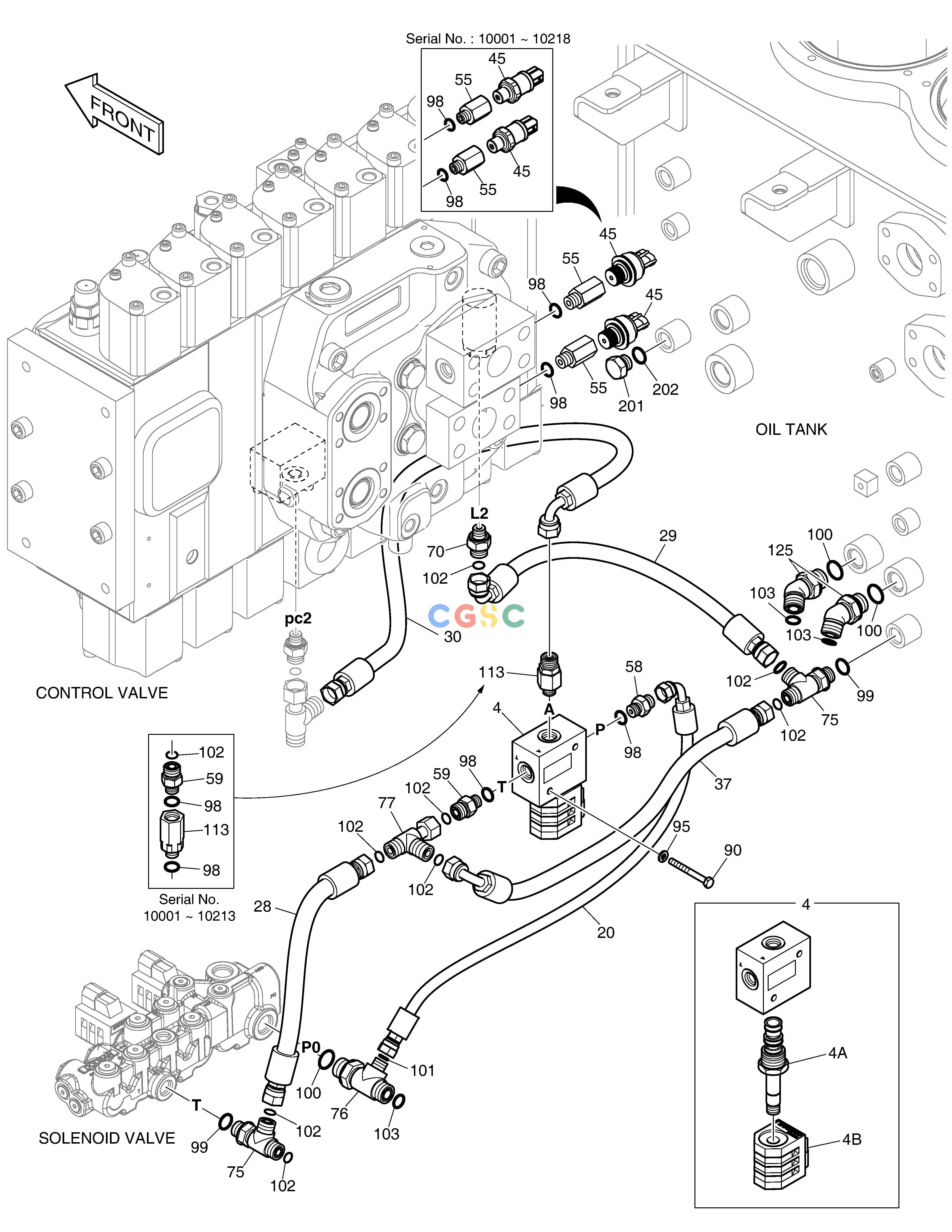

斗山零件查询PILOT PIPING(2) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
119 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01115
|
[-] |
|
|
| 100. |
S8000181
|
[3] |
O-RING
|
|
| 101. |
S8030041
|
[2] |
O-RING
|
|
| 102. |
S8030061
|
[8] |
O-RING
|
|
| 102. |
S8030061
|
[9] |
O-RING
|
|
| 103. |
S8030081
|
[3] |
O-RING
|
|
| 113. |
430201-00448
|
[1] |
|
|
| 113. |
430201-00448B
|
[1] |
|
|
| 125. |
2181-2816D4
|
[2] |
ELBOW
|
DS2338004
|
| 125. |
DS2338004
|
[2] |
|
|
| 20. |
DS2121128
|
[1] |
|
|
| 201. |
2181-1950D2
|
[1] |
PLUG
|
|
| 202. |
S8000141
|
[1] |
O-RING
|
|
| 28. |
DS2119159
|
[1] |
|
|
| 29. |
DS2121021
|
[1] |
|
|
| 30. |
DS2121198
|
[1] |
|
|
| 37. |
DS2121250
|
[1] |
|
|
| 4. |
410135-00239
|
[1] |
|
|
| 45. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
| 45. |
K1048145
|
[2] |
SENSOR,PRESSURE
|
|
| 4A. |
410207-00145
|
[1] |
SPOOL,SOLENOID
|
|
| 4B. |
300715-00038
|
[1] |
COIL 24V
|
|
| 55. |
DS2242005
|
[2] |
|
|
| 55. |
DS2242030
|
[2] |
|
|
| 55. |
DS2242023
|
[2] |
|
|
| 58. |
2181-4133D1
|
[1] |
ADAPTER
|
|
| 59. |
2181-4133D40
|
[2] |
ADAPTER
|
|
| 59. |
2181-4133D40
|
[1] |
ADAPTER
|
|
| 70. |
K1010455
|
[1] |
ADAPTER
|
|
| 75. |
181-00121D2
|
[2] |
TEE
|
|
| 76. |
181-00121D6
|
[1] |
|
|
| 77. |
DS2362011
|
[1] |
|
|
| 90. |
S0553766
|
[2] |
BOLT
|
|
| 95. |
S5102303
|
[2] |
. WASHER
|
|
| 98. |
S8000111
|
[6] |
O-RING
|
|
| 98. |
S8000111
|
[4] |
O-RING
|
|
| 99. |
S8000141
|
[2] |
O-RING
|
|
