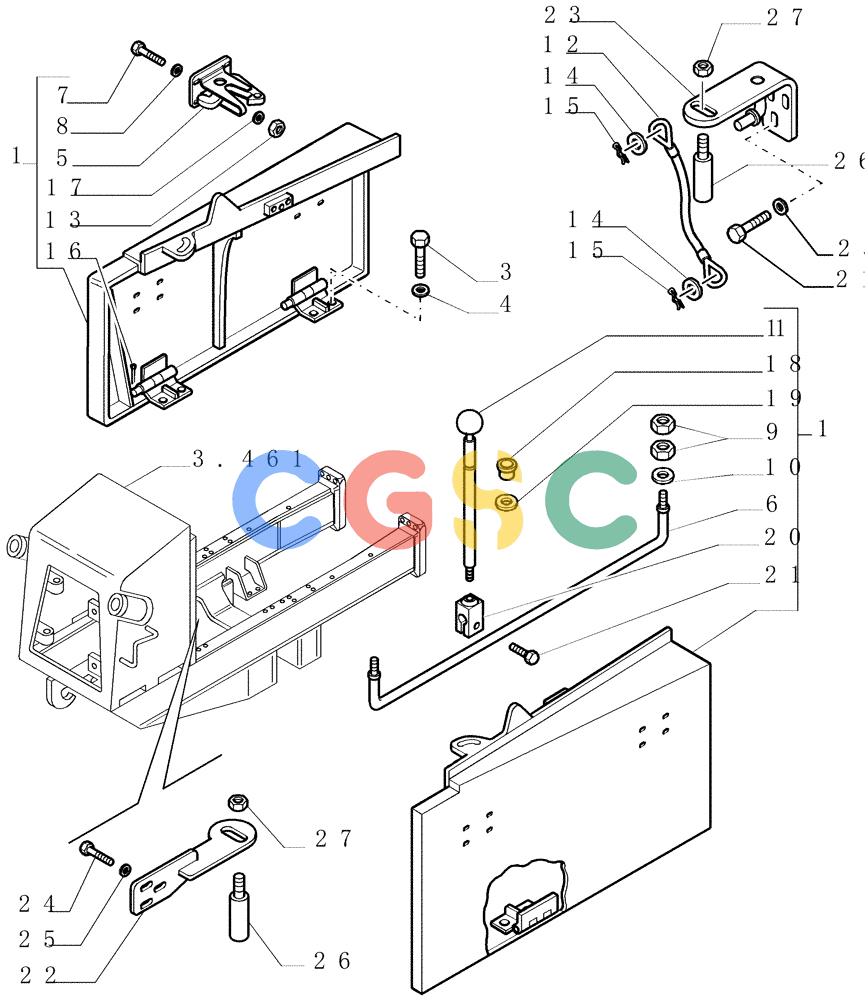

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (5.601[02]) - HOODS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
817 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76066310 | [1] | PANEL | TOR- ASSY LOWER LEFT |
| 1. | 76066311 | [1] | PANEL | TOR- ASSY LOWER RIGHT |
| 3. | 11112231 | [8] | SCREW,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd | LEC Superseded by part number: 398792 |
| 4. | 12648531 | [8] | WASHER,12.2mm ID x 28mm OD x 4mm Thk | LEC Superseded by part number: 86625256 |
| 5. | 76066312 | [2] | LOCK | LEC- ASSY SEE TAV. 7 |
| 6. | 76066344 | [1] | TIE-ROD | LEC |
| 7. | 13301511 | [8] | SCREW,M6 x 20mm | LEC Superseded by part number: 13301521 |
| 8. | 14496431 | [8] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 9. | 16104121 | [10] | NUT,M8 x 1.25, Cl 10 | LEC Superseded by part number: 17152821 |
| 10. | 14496531 | [2] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 11. | 76066332 | [1] | KNOB | LEC |
| 12. | 76066336 | [2] | CABLE | LEC |
| 13. | 12574221 | [8] | NUT,M6 x 1, Cl 10 | LEC |
| 15. | 10734301 | [4] | COTTER PIN,M2 x 18 | TTF Superseded by part number: 16854101 |
| 16. | 10796401 | [2] | COTTER PIN,M3.2 x 18 | TTF Superseded by part number: |
| 17. | 10615479 | [8] | LOCK WASHER,6.4mm ID x 11mm OD x 0.7mm Thk | LEC Superseded by part number: |
| 18. | 79068087 | [1] | BUSHING | LEC |
| 19. | 16160976 | [1] | CIRCLIP,M9 | LEC Superseded by part number: 84607076 |
| 20. | 76066345 | [1] | TIE-ROD | TOR Superseded by part number: 76066344 |
| 21. | 16043431 | [8] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
| 22. | 76066349 | [1] | SUPPORT | LEC- LEFT |
| 22. | 76066346 | [1] | SUPPORT | LEC- RIGHT |
| 23. | 76066347 | [2] | SUPPORT | LEC- REAR |
| 24. | 16043231 | [6] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 25. | 12645031 | [12] | WASHER,8.45mm ID x 21mm OD x 3mm Thk | LEC |
| 26. | 79092929 | [4] | PIN,12mm OD x 80mm L | LEC |
| 27. | 12577521 | [4] | NUT,M12 x 1.75 | LEC |
