纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (5.601[04]) - HOODS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
334 次

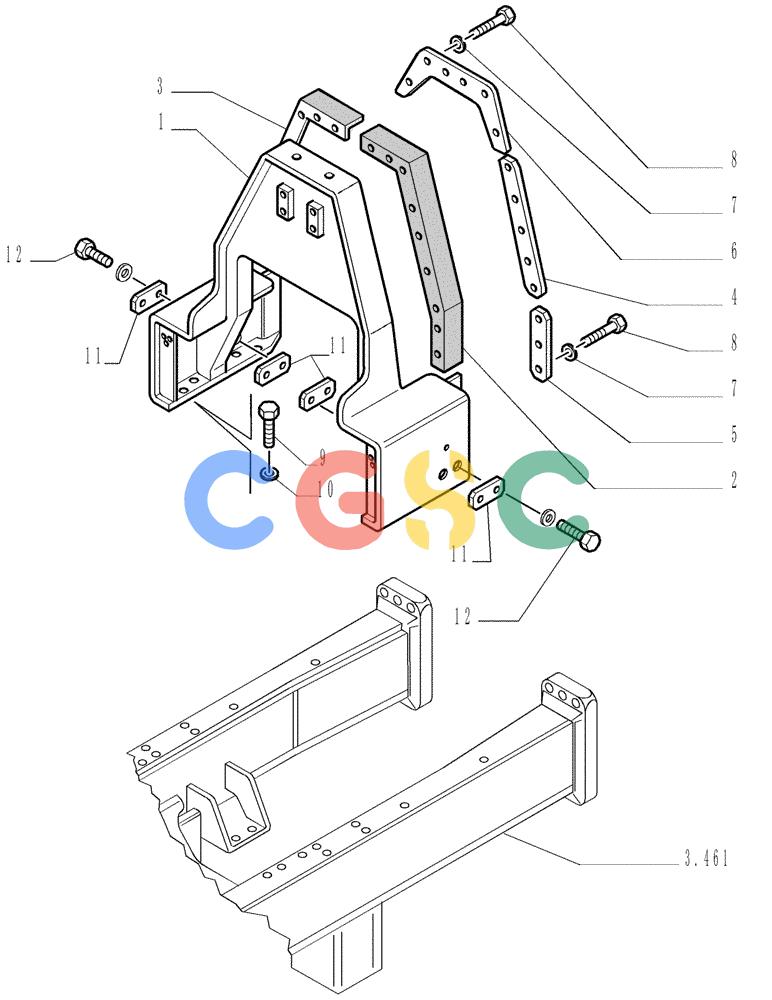

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76053933 | [1] | FRAME | TOR |
| 2. | 76066367 | [1] | SEAL | LEC- LEFT |
| 3. | 76066368 | [1] | SEAL | LEC- RIGHT |
| 4. | 76046945 | [2] | STRAP | LEC |
| 5. | 76066366 | [2] | STRAP | LEC |
| 6. | 76046949 | [1] | PLATE | LEC |
| 7. | 13336707 | [20] | WASHER | LEC7 |
| 8. | 13313217 | [18] | SCREW,Pozidriv Oval Hd, Csk, M6 x 20mm, Cl 5.8, Full Thd | LEC |
| 9. | 11394331 | [8] | BOLT,Hex, M14 x 1.5 x 45, 8.8, Full Thd | IMO |
| 10. | 79005238 | [8] | WASHER,14.8mm ID x 32mm OD x 7mm Thk | LEC14X32 |
| 11. | 76054905 | [4] | COVER | LEC Superseded by part number: 76089227 |
| 12. | 16043431 | [8] | SCREW,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | BHB Superseded by part number: 16605534 |
