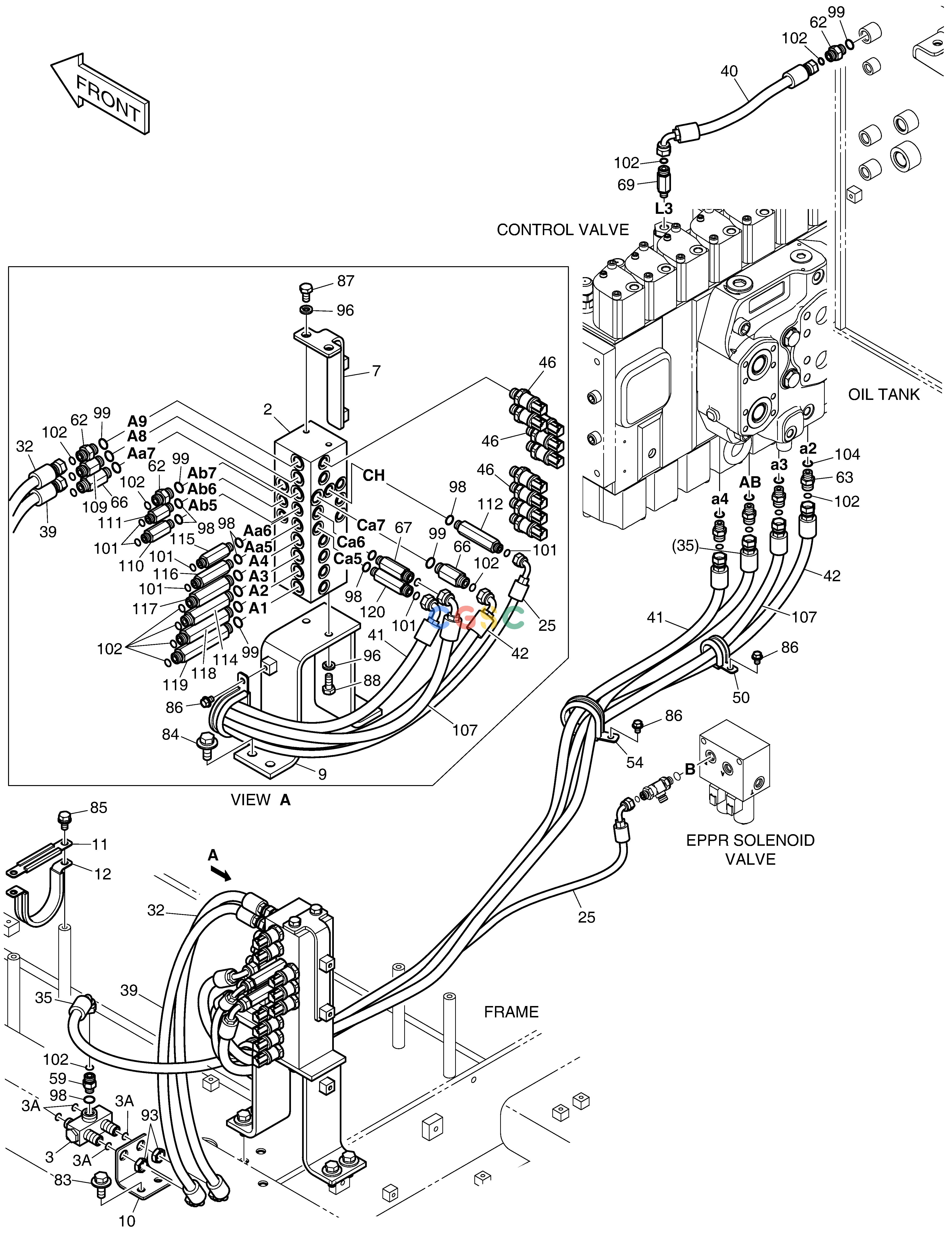

斗山零件查询PILOT PIPING(4) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
698 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01115
|
[-] |
|
|
| 10. |
250122-00059A
|
[1] |
|
|
| 101. |
S8030041
|
[5] |
O-RING
|
|
| 102. |
S8030061
|
[22] |
O-RING
|
|
| 104. |
S8040061
|
[4] |
O-RING
|
|
| 107. |
DS2121140
|
[1] |
|
|
| 109. |
2181-4133D24
|
[1] |
ADAPTER
|
|
| 11. |
120202-00055
|
[1] |
|
|
| 110. |
2181-4133D43
|
[1] |
ADAPTER
|
|
| 111. |
2181-4133D44
|
[1] |
ADAPTER
|
|
| 112. |
2181-4133D45
|
[1] |
|
|
| 114. |
DS2232096
|
[1] |
ADAPTER
|
|
| 115. |
DS2232099
|
[1] |
ADAPTER
|
|
| 116. |
DS2232198
|
[1] |
|
|
| 117. |
DS2232199
|
[1] |
|
|
| 118. |
DS2232200
|
[1] |
|
|
| 119. |
DS2232201
|
[1] |
|
|
| 12. |
120202-00057A
|
[1] |
|
|
| 120. |
DS2232202
|
[1] |
|
|
| 2. |
410134-00012
|
[1] |
|
|
| 25. |
DS2123005
|
[1] |
|
|
| 3. |
410134-00038
|
[1] |
|
|
| 32. |
DS2121024
|
[1] |
|
|
| 35. |
DS2121034
|
[1] |
|
|
| 39. |
DS2121338
|
[1] |
|
|
| 3A. |
S8030061
|
[4] |
O-RING
|
|
| 40. |
DS2121112
|
[1] |
|
|
| 41. |
DS2121117
|
[1] |
|
|
| 42. |
DS2121118
|
[1] |
|
|
| 46. |
K1057340
|
[9] |
SENSOR,PRESSURE
|
|
| 50. |
124-00208D5
|
[1] |
CLIP
|
|
| 54. |
124-00208D9
|
[2] |
CLIP
|
|
| 59. |
2181-4133D40
|
[1] |
ADAPTER
|
|
| 62. |
2181-4133D2
|
[3] |
ADAPTER
|
|
| 63. |
DS2232066
|
[4] |
ADAPTER
|
|
| 66. |
DS2232085
|
[2] |
ADAPTER
|
|
| 67. |
DS2232140
|
[1] |
|
|
| 69. |
K1044052
|
[1] |
ADAPTER
|
|
| 7. |
110452-00028
|
[1] |
|
|
| 83. |
DS0025017
|
[2] |
BOLT
|
|
| 84. |
DS0025020
|
[4] |
BOLT
|
|
| 85. |
DS0025042
|
[2] |
BOLT
|
|
| 86. |
K1001029
|
[3] |
BOLT
|
|
| 87. |
S0511866
|
[2] |
BOLT
|
|
| 88. |
S0512066
|
[2] |
. BOLT
|
|
| 9. |
110425-00045A
|
[1] |
|
|
| 93. |
DS0301032
|
[2] |
NUT
|
|
| 96. |
S5102603
|
[4] |
. WASHER
|
|
| 98. |
S8000111
|
[8] |
O-RING
|
|
| 99. |
S8000141
|
[10] |
O-RING
|
|
