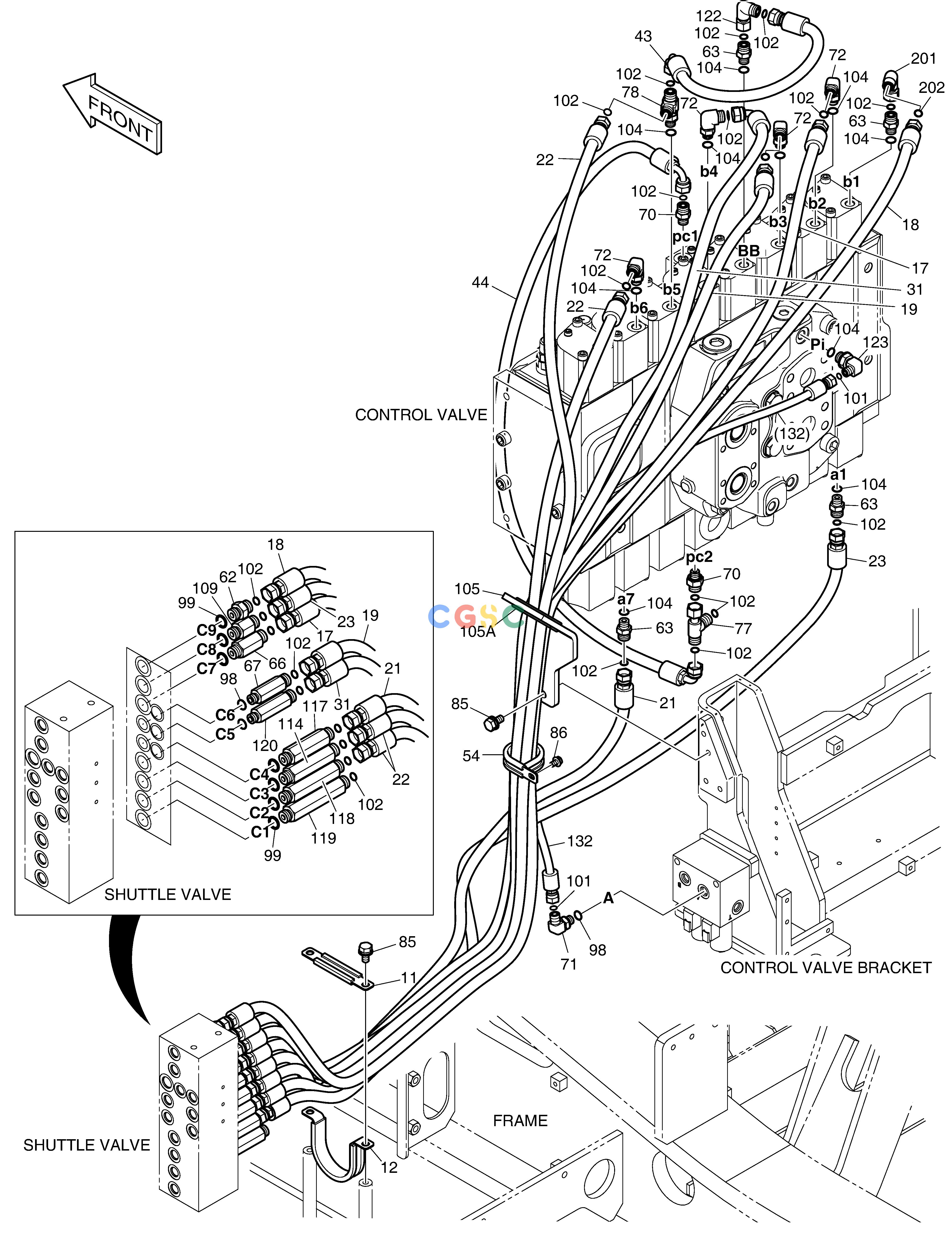

斗山零件查询PILOT PIPING(5) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
940 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-01115
|
[-] |
|
|
| 101. |
S8030041
|
[2] |
O-RING
|
|
| 102. |
S8030061
|
[24] |
O-RING
|
|
| 104. |
S8040061
|
[10] |
O-RING
|
|
| 105. |
110406-01477
|
[1] |
|
|
| 105A. |
2160-1004D3
|
[1] |
BUSHING
|
|
| 109. |
2181-4133D24
|
[1] |
ADAPTER
|
|
| 11. |
120202-00055
|
[1] |
|
|
| 114. |
DS2232096
|
[1] |
ADAPTER
|
|
| 117. |
DS2232199
|
[1] |
|
|
| 118. |
DS2232200
|
[1] |
|
|
| 119. |
DS2232201
|
[1] |
|
|
| 12. |
120202-00057A
|
[1] |
|
|
| 120. |
DS2232202
|
[1] |
|
|
| 122. |
DS2291007
|
[1] |
ELBOW
|
|
| 123. |
DS2304056
|
[1] |
|
|
| 132. |
DS2119133
|
[1] |
|
|
| 17. |
DS2119039
|
[1] |
|
|
| 18. |
DS2119156
|
[1] |
|
|
| 19. |
DS2119051
|
[1] |
|
|
| 201. |
DS2291007
|
[1] |
ELBOW
|
|
| 202. |
S8030061
|
[1] |
O-RING
|
|
| 21. |
DS2119157
|
[1] |
|
|
| 22. |
DS2119158
|
[2] |
|
|
| 23. |
DS2119051
|
[1] |
|
|
| 31. |
DS2121117
|
[1] |
|
|
| 43. |
DS2121159
|
[1] |
|
|
| 44. |
DS2123028
|
[1] |
|
|
| 54. |
124-00208D9
|
[1] |
CLIP
|
|
| 62. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 63. |
DS2232066
|
[4] |
ADAPTER
|
|
| 66. |
DS2232085
|
[1] |
ADAPTER
|
|
| 67. |
DS2232140
|
[1] |
|
|
| 70. |
K1010455
|
[2] |
ADAPTER
|
|
| 71. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 72. |
DS2304052
|
[4] |
ELBOW
|
|
| 77. |
DS2362011
|
[1] |
|
|
| 78. |
DS2376007
|
[1] |
|
|
| 85. |
DS0025042
|
[4] |
BOLT
|
|
| 86. |
K1001029
|
[1] |
BOLT
|
|
| 98. |
S8000111
|
[3] |
O-RING
|
|
| 99. |
S8000141
|
[7] |
O-RING
|
|
