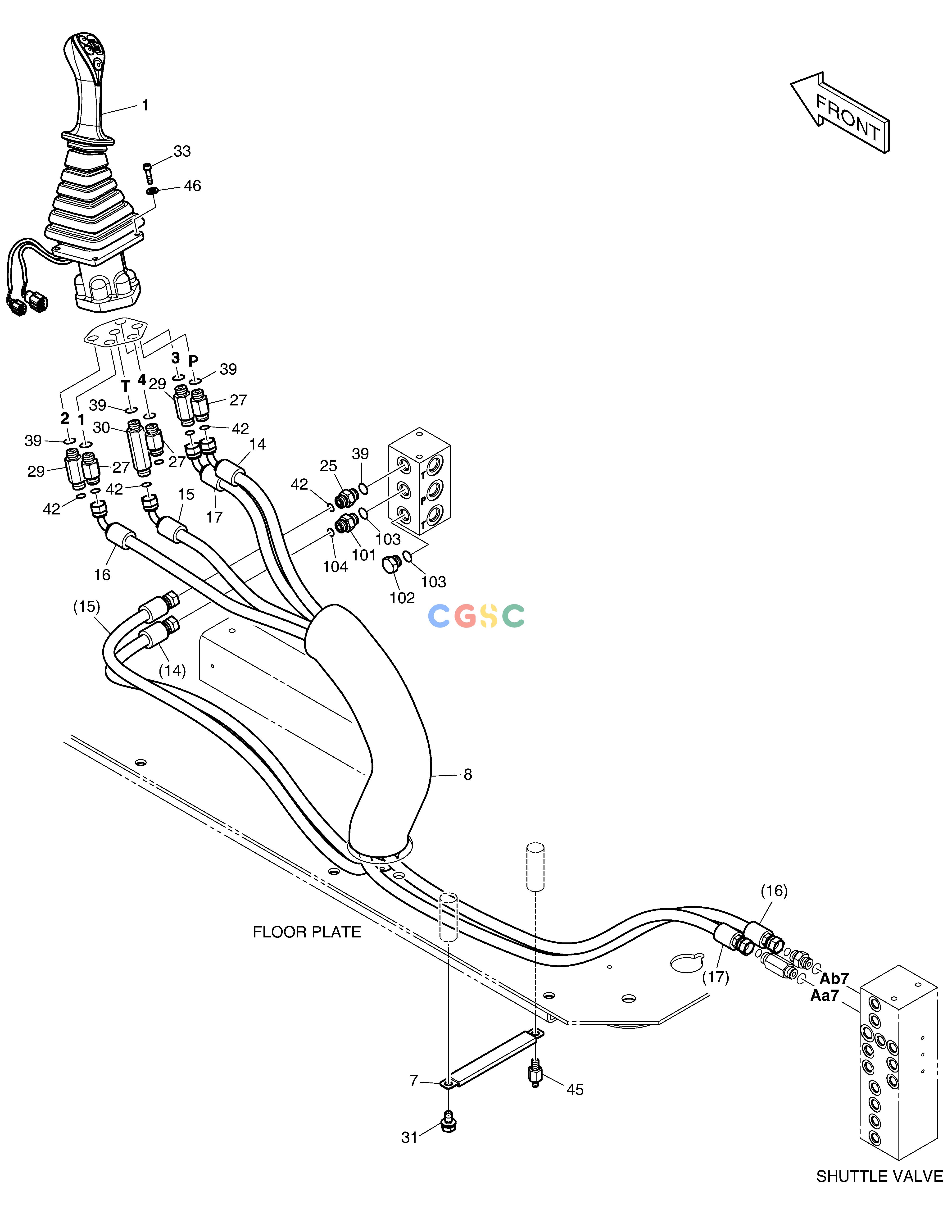

斗山零件查询PILOT PIPING(6) DX380LC-3(OCEANIA) Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
156 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-03857E
|
[-] |
|
|
| -. |
420212-03857M
|
[-] |
|
|
| 1. |
410113-00081B
|
[1] |
|
410113-00081E
|
| 1. |
410113-00081E
|
[1] |
|
|
| 101. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 102. |
2181-1950D2
|
[1] |
PLUG
|
DS2901012
|
| 102. |
DS2901012
|
[1] |
PLUG
|
|
| 103. |
S8000141
|
[2] |
O-RING
|
|
| 104. |
S8030061
|
[1] |
O-RING
|
|
| 14. |
DS2113043
|
[1] |
|
|
| 15. |
DS2113054
|
[1] |
|
|
| 16. |
DS2113049
|
[1] |
|
|
| 17. |
DS2113076
|
[1] |
|
|
| 25. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 27. |
DS2232039
|
[3] |
|
|
| 27. |
2181-4133D24
|
[3] |
ADAPTER
|
DS2232039
|
| 29. |
DS2232085
|
[2] |
ADAPTER
|
|
| 30. |
DS2232169
|
[1] |
|
|
| 31. |
DS0025042
|
[1] |
BOLT
|
|
| 33. |
S2205066
|
[4] |
BOLT
|
|
| 39. |
S8000141
|
[7] |
O-RING
|
|
| 42. |
S8030061
|
[7] |
O-RING
|
|
| 45. |
DS0014013
|
[1] |
|
|
| 46. |
S5010313
|
[4] |
WASHER
|
|
| 7. |
120202-00008
|
[1] |
|
|
| 8. |
K1003945
|
[1] |
PROTECTOR
|
|
