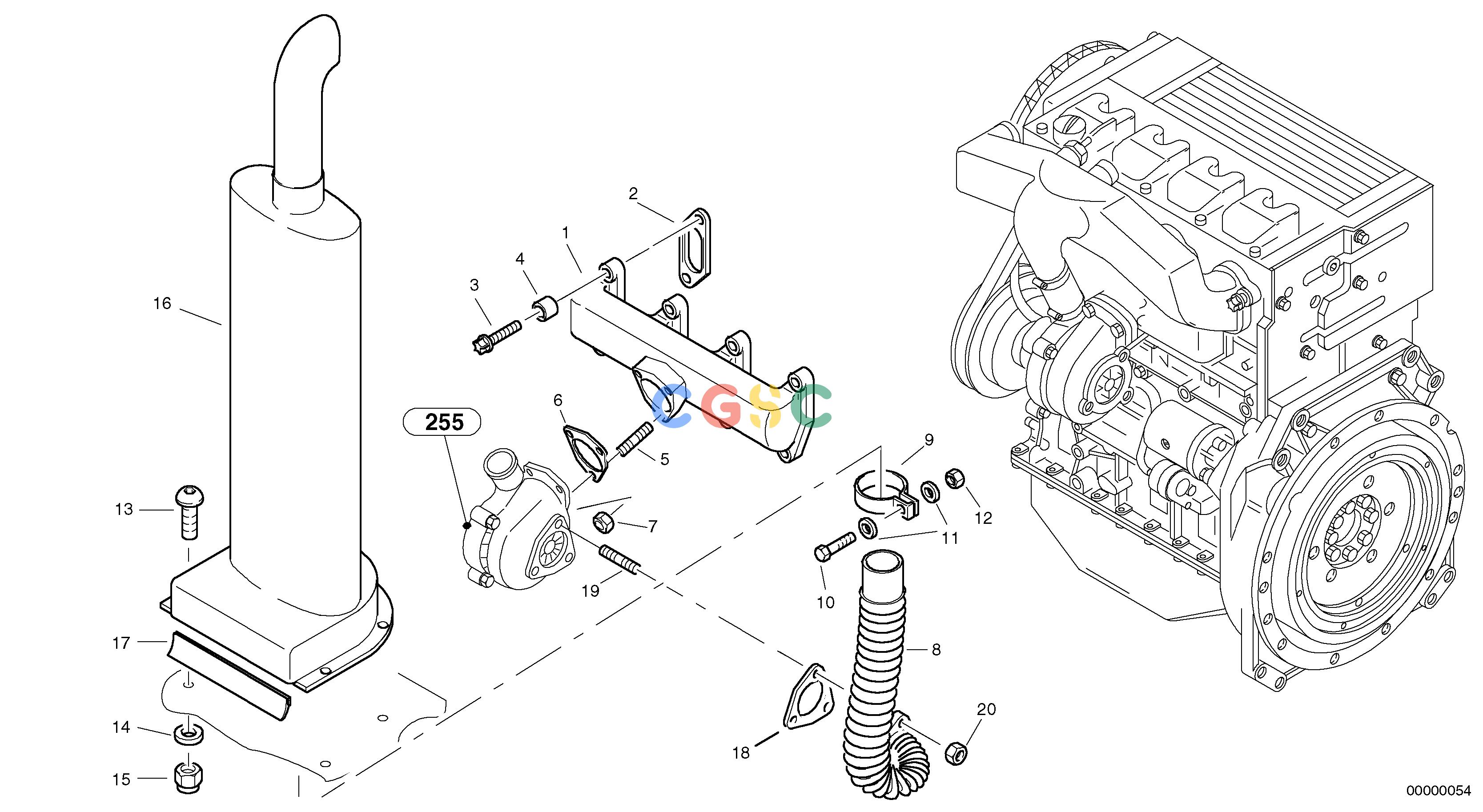

沃尔沃零件查询L35 Exhaust systemTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
249 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE17443562
|
[1] |
Exhaust manifold
|
|
| 2. |
ZM4083910
|
[4] |
Stiffener
|
|
| 3. |
VOE20481810
|
[8] |
Screw
|
|
| 4. |
ZM2904412
|
[8] |
Bushing
|
|
| 5. |
VOE20834041
|
[3] |
Ball pin
|
M8x20
|
| 6. |
ZM2900459
|
[1] |
Gasket
|
|
| 7. |
ZM7098010
|
[3] |
Nut
|
M8
|
| 8. |
ZM2810937
|
[1] |
Exhaust hose
|
|
| 9. |
VOE11306075
|
[1] |
Clamp
|
58,5
|
| 10. |
VOE983244
|
[1] |
Hexagon screw
|
M8x30
|
| 11. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 12. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 13. |
ZM2810334
|
[4] |
Screw
|
M10x25
|
| 14. |
VOE11307559
|
[4] |
Washer
|
B10,5
|
| 15. |
ZM2120430
|
[4] |
Nut
|
VM10
|
| 16. |
ZM2810936
|
[1] |
Muffler
|
|
| 17. |
VOE11306373
|
[1] |
Sealing moulding
|
L = 300MM
|
| 18. |
ZM4083930
|
[1] |
Stiffener
|
|
| 19. |
VOE20834041
|
[3] |
Ball pin
|
M8x20
|
| 20. |
ZM7098010
|
[3] |
Nut
|
M8
|
