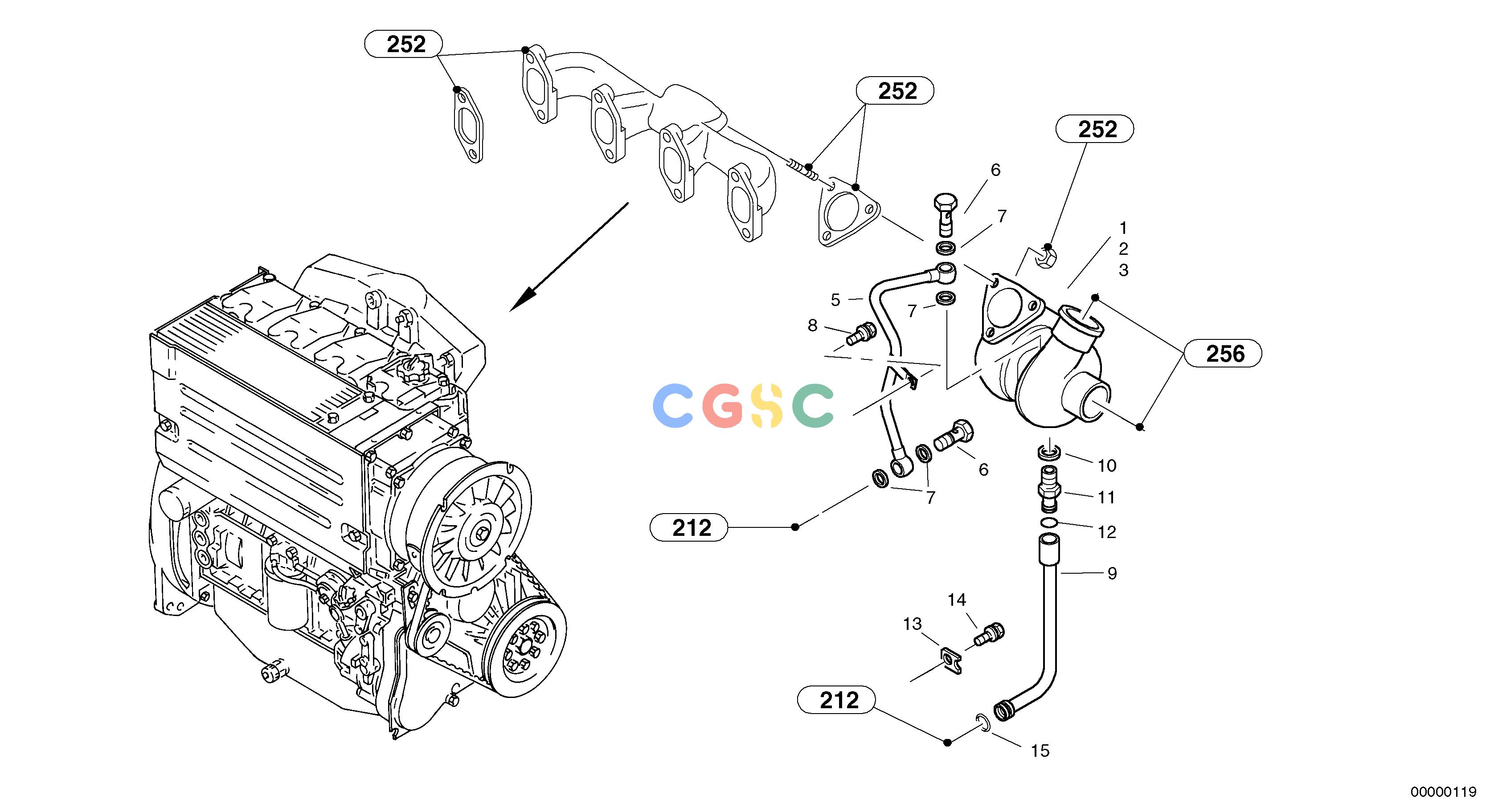

沃尔沃零件查询L35 Exhaust turbo - super chargerTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
428 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2904185
|
[1] |
Exhaust turbo - super cha
|
|
| 11. |
VOE20459171
|
[1] |
Nipple
|
|
| 12. |
VOE20459172
|
[1] |
Sealing ring
|
|
| 13. |
ZM2905360
|
[1] |
Retaining plate
|
|
| 14. |
ZM2904733
|
[1] |
Screw
|
|
| 15. |
ZM2904191
|
[1] |
O-ring
|
|
| 2. |
ZM2905393
|
[REQ] |
Repair Kit
|
|
| 3. |
ZM2905394
|
[REQ] |
Fuselage group
|
|
| 5. |
ZM2904732
|
[1] |
Oil Pipe
|
|
| 6. |
ZM2290272
|
[2] |
Hollow screw
|
8
|
| 7. |
VOE13947282
|
[4] |
Gasket
|
A12x16
|
| 8. |
ZM2904733
|
[1] |
Screw
|
|
| 9. |
VOE22819693
|
[1] |
Oil Return Pipe
|
|
| 10. |
VOE13947622
|
[1] |
Plane gasket
|
A16x20
|
