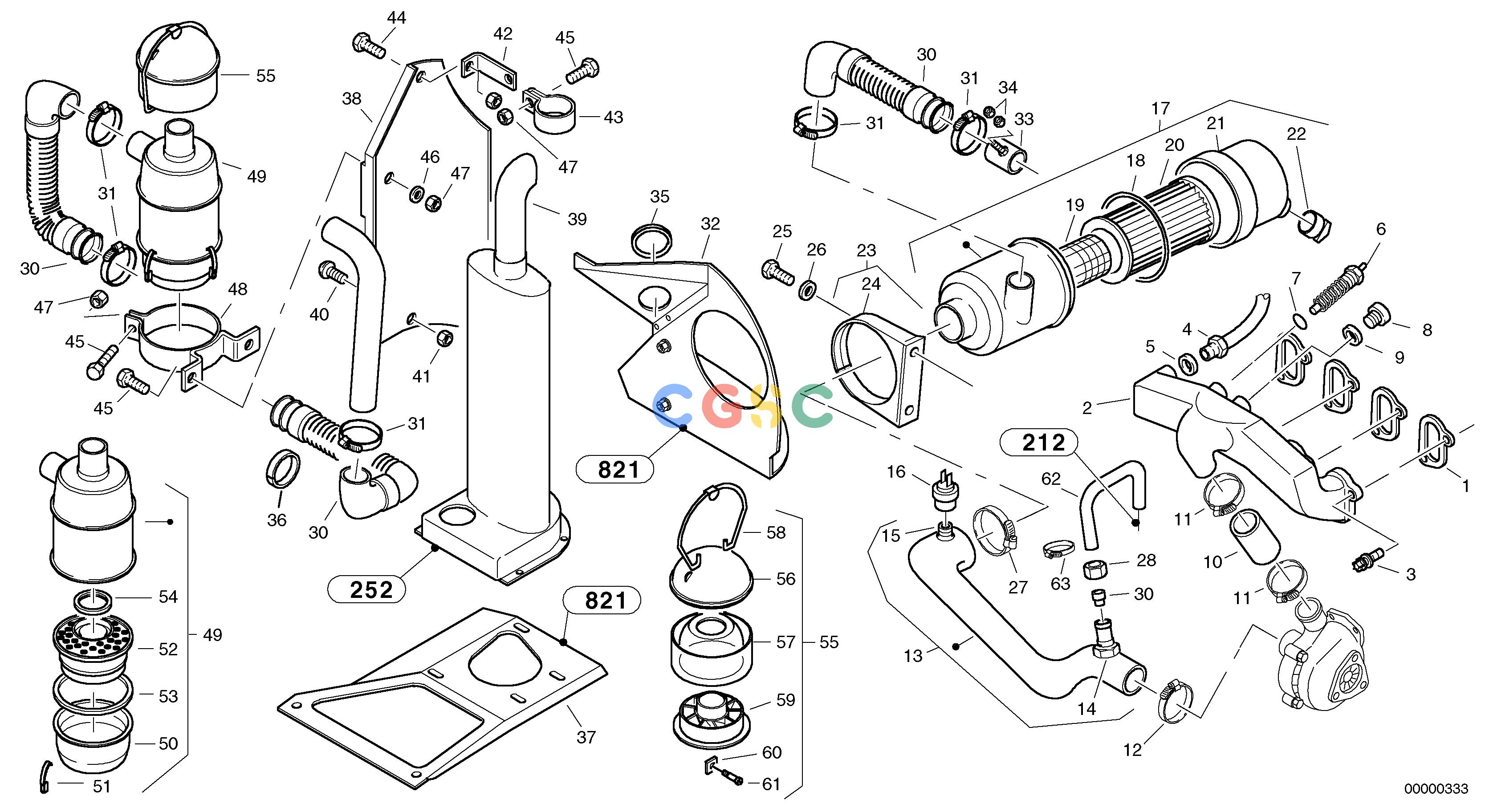

沃尔沃零件查询L35 Prefilter - Oil bath air filterTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2903605
|
[4] |
Gasket
|
|
| 10. |
ZM4074550
|
[1] |
Hose connection
|
|
| 11. |
ZM4084040
|
[2] |
Clamp
|
|
| 12. |
ZM2060784
|
[1] |
Clip
|
AS50-70
|
| 13. |
ZM2815506
|
[1] |
Warning switch
|
|
| 14. |
ZM2815843
|
[1] |
Hose kit
|
|
| 15. |
ZM2906058
|
[1] |
Nipple
|
|
| 16. |
ZM2815506
|
[1] |
Warning switch
|
|
| 17. |
ZM2811086
|
[1] |
Air filter
|
|
| 18. |
ZM2907908
|
[1] |
Ring
|
|
| 19. |
ZM2903850
|
[1] |
Insert
|
|
| 2. |
VOE15053387
|
[1] |
Suction pipe
|
|
| 20. |
ZM2903849
|
[1] |
Insert
|
|
| 21. |
ZM2907907
|
[1] |
Air filter housing
|
|
| 22. |
ZM2061390
|
[1] |
Dust discharge valve
|
|
| 23. |
ZM2804863
|
[1] |
Retainer
|
|
| 24. |
ZM2903851
|
[1] |
Spring
|
|
| 25. |
VOE14370277
|
[2] |
Hexagon screw
|
M8x40
|
| 26. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 27. |
ZM2060785
|
[1] |
Clip
|
AS70-90
|
| 28. |
ZM7092960
|
[1] |
Nut
|
AL12
|
| 29. |
ZM7092970
|
[1] |
Ferrule
|
L12
|
| 3. |
VOE3586624
|
[8] |
Hexagon screw
|
|
| 30. |
ZM2806244
|
[3] |
Hose
|
|
| 31. |
ZM2060785
|
[6] |
Clip
|
AS70-90
|
| 32. |
ZM2814234
|
[1] |
Bulkhead
|
|
| 33. |
ZM2814233
|
[1] |
Pipe
|
|
| 34. |
ZM7098010
|
[2] |
Nut
|
M8
|
| 35. |
ZM2812123
|
[1] |
Edge protection
|
L = 300MM
|
| 36. |
ZM4346043
|
[1] |
Strap
|
|
| 37. |
ZM2814327
|
[1] |
Support
|
|
| 38. |
ZM2814227
|
[1] |
Bracket
|
|
| 39. |
ZM2810936
|
[1] |
Muffler
|
|
| 4. |
ZM2905386
|
[1] |
Hose assembly
|
M10x1
|
| 40. |
ZM2810329
|
[3] |
Screw
|
MLF M8x16
|
| 41. |
ZM7098010
|
[3] |
Nut
|
M8
|
| 42. |
ZM2814232
|
[1] |
Holder
|
|
| 43. |
VOE11306009
|
[1] |
Clamp
|
|
| 44. |
VOE983242
|
[1] |
Hexagon screw
|
M8x20
|
| 45. |
VOE983244
|
[3] |
Hexagon screw
|
M8x30
|
| 46. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 47. |
ZM7098010
|
[4] |
Nut
|
M8
|
| 48. |
VOE11305642
|
[1] |
Retainer
|
|
| 49. |
VOE11305643
|
[1] |
Oil bath air cleaner
|
|
| 5. |
VOE13947281
|
[1] |
Gasket
|
A10x13,5
|
| 50. |
ZM5027660
|
[1] |
Oil tank
|
|
| 51. |
VOE6212135
|
[3] |
Oil reservoir
|
|
| 52. |
ZM5027670
|
[1] |
Insert
|
|
| 53. |
VOE6611320
|
[1] |
Gasket
|
|
| 54. |
ZM5027680
|
[1] |
Gasket
|
|
| 55. |
VOE11305645
|
[1] |
Cyclone cleaner
|
|
| 56. |
ZM2133280
|
[1] |
Cover
|
|
| 57. |
ZM2189680
|
[1] |
Pot
|
|
| 58. |
ZM2133300
|
[1] |
Brace
|
|
| 59. |
ZM2189690
|
[1] |
Wing wheel
|
|
| 6. |
ZM4065780
|
[1] |
Support
|
|
| 60. |
VOE6617832
|
[1] |
Nut
|
|
| 61. |
ZM2136120
|
[1] |
Screw
|
|
| 62. |
ZM2813363
|
[1] |
Air vent hose
|
|
| 63. |
ZM2060782
|
[2] |
Clip
|
AS20-32
|
| 7. |
VOE20460026
|
[1] |
Sealing ring
|
A22x27
|
| 8. |
ZM7099424
|
[1] |
Lock plug
|
M22x1,5
|
| 9. |
VOE20460026
|
[1] |
Sealing ring
|
A22x27
|
