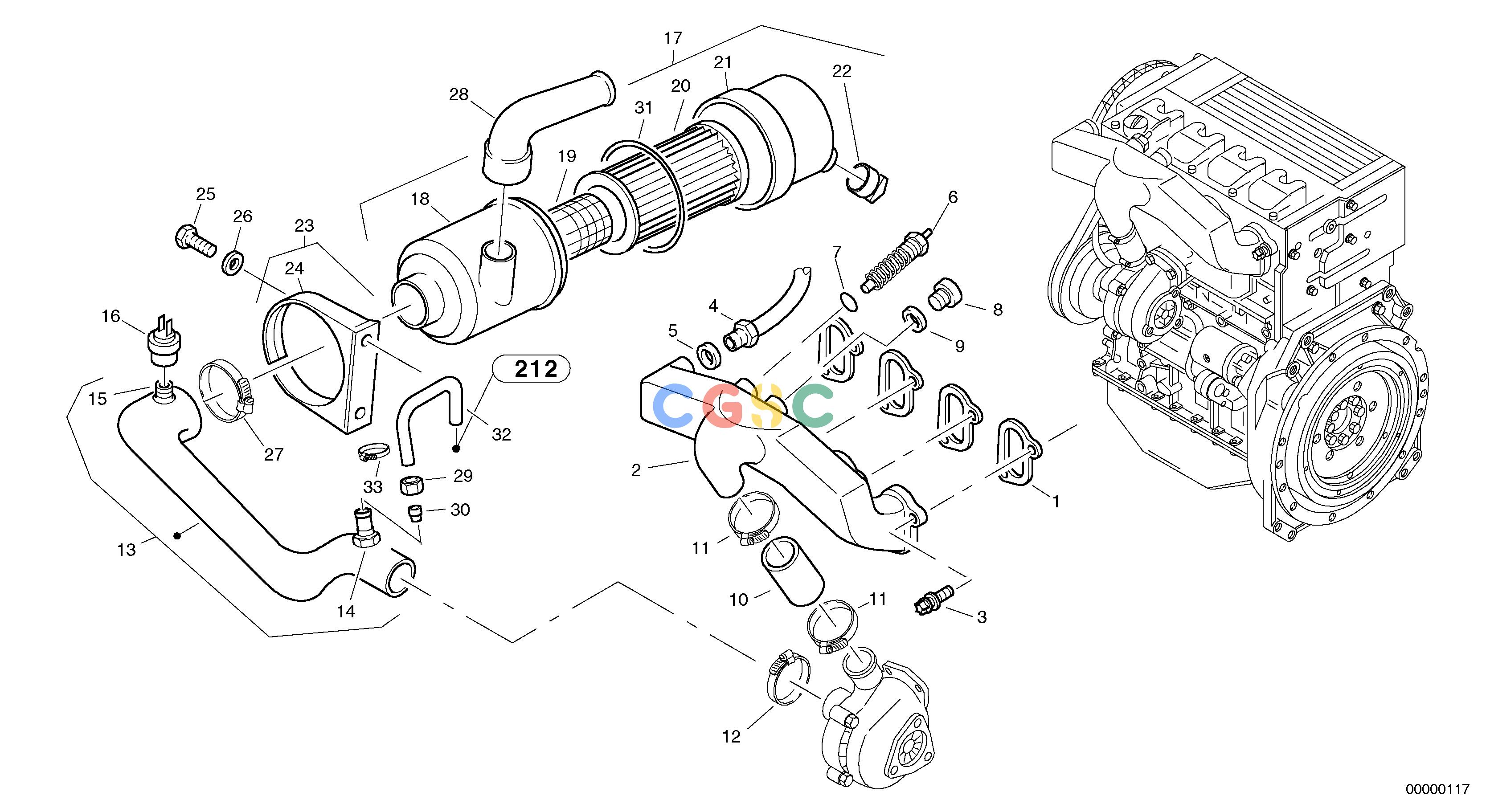

沃尔沃零件查询L35 Suction system, filterTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
491 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2903605
|
[4] |
Gasket
|
|
| 10. |
ZM4074550
|
[1] |
Hose connection
|
|
| 11. |
ZM4084040
|
[2] |
Clamp
|
|
| 12. |
ZM2060784
|
[1] |
Clip
|
AS50-70
|
| 13. |
ZM2817353
|
[1] |
Suction hose
|
|
| 14. |
ZM2815843
|
[1] |
Hose kit
|
|
| 15. |
ZM2906058
|
[1] |
Nipple
|
|
| 16. |
ZM2815506
|
[1] |
Warning switch
|
|
| 17. |
ZM2804861
|
[1] |
Air filter, cpl.
|
-1860230/-1880012
-1890020
|
| 17. |
ZM2811086
|
[1] |
Air filter
|
1860231-/1880013-
1890013-
|
| 18. |
ZM2903847
|
[1] |
Upper part
|
-1860230/-1880012
-1890020
|
| 2. |
VOE15053387
|
[1] |
Suction pipe
|
|
| 19. |
ZM2903850
|
[1] |
Insert
|
|
| 20. |
ZM2903849
|
[1] |
Insert
|
|
| 21. |
ZM2903846
|
[1] |
Under part
|
-1860230/-1880012
-1890020
|
| 21. |
ZM2907907
|
[1] |
Air filter housing
|
1860231-/1880013-
1890013-
|
| 22. |
ZM2061390
|
[1] |
Dust discharge valve
|
|
| 23. |
ZM2804863
|
[1] |
Retainer
|
|
| 24. |
ZM2903851
|
[1] |
Spring
|
|
| 25. |
VOE14370277
|
[2] |
Hexagon screw
|
M8x40
|
| 26. |
VOE11305837
|
[2] |
Washer
|
B 8,4
|
| 27. |
ZM2060785
|
[1] |
Clip
|
AS70-90
|
| 3. |
VOE3586624
|
[8] |
Hexagon screw
|
|
| 28. |
ZM2808883
|
[1] |
Exhaust pipe
|
|
| 29. |
ZM7092960
|
[1] |
Nut
|
AL12
|
| 30. |
ZM7092970
|
[1] |
Ferrule
|
L12
|
| 31. |
ZM2907908
|
[1] |
Ring
|
1860231-/1880013-
1890013-
|
| 32. |
ZM2813363
|
[1] |
Air vent hose
|
|
| 33. |
ZM2060782
|
[2] |
Clip
|
AS20-32
|
| 4. |
ZM2905386
|
[1] |
Hose assembly
|
M10x1
|
| 5. |
VOE13947281
|
[1] |
Gasket
|
A10x13,5
|
| 6. |
ZM4065780
|
[1] |
Support
|
|
| 7. |
VOE20460026
|
[1] |
Sealing ring
|
A22x27
|
| 8. |
ZM7099424
|
[1] |
Lock plug
|
M22x1,5
|
| 9. |
VOE20460026
|
[1] |
Sealing ring
|
A22x27
|
