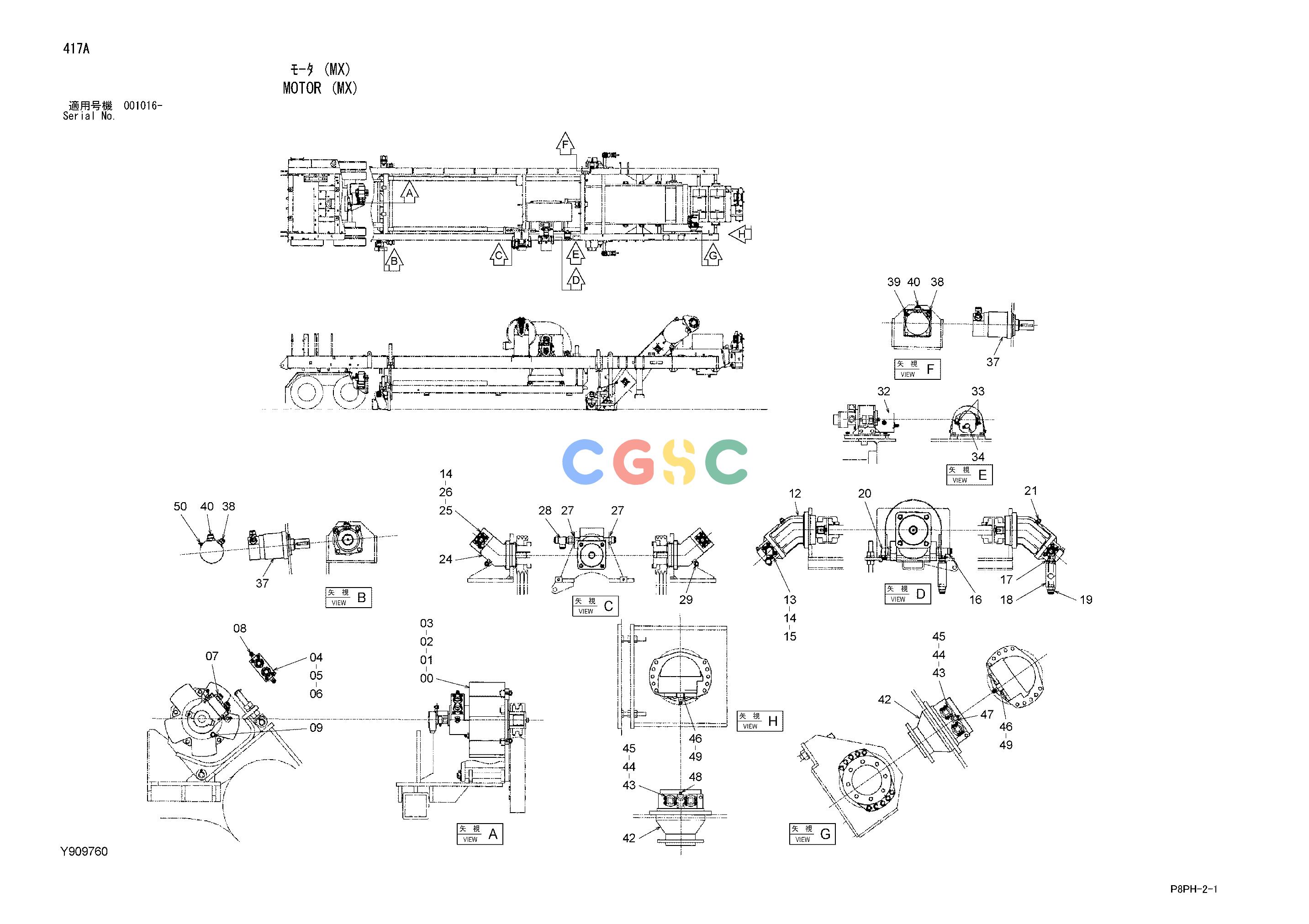

日立零件查询（AR2000）MOTOR (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
480 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y411204 | [1] | MOTOR:OIL | |
| 01. | J901260 | [5] | BOLT | |
| 02. | J950012 | [5] | NUT | |
| 03. | A590912 | [5] | WASHER;SPRING | |
| 04. | Y301788 | [1] | FLANGE | |
| 05. | A811040 | [2] | O-RING | |
| 06. | J781050 | [4] | BOLT;SOCKET | |
| 07. | 4214444 | [2] | ADAPTER;S | |
| 07A. | 4506429 | [1] | O-RING | |
| 08. | A852333 | [2] | ELBOW;S | |
| 08A. | 4509180 | [1] | O-RING | |
| 09. | 4475056 | [1] | ADAPTER;S | |
| 09A. | 4461521 | [1] | O-RING | |
| 12. | Y411201 | [1] | MOTOR;OIL | |
| 13. | Y301342 | [2] | FLANGE | |
| 14. | A811035 | [4] | O-RING | |
| 15. | J781235 | [8] | BOLT;SOCKET | |
| 16. | Y411676 | [1] | TEE;S | |
| 17. | Y411673 | [1] | ADAPTER;S | |
| 18. | Y412011 | [1] | VALVE;CHECK | |
| 19. | Y411688 | [1] | ADAPTER;S | |
| 20. | Y411685 | [1] | ELBOW;S | |
| 21. | Y411797 | [1] | ADAPTER;S | |
| 24. | Y411206 | [1] | MOTOR;OIL | |
| 25. | Y301353 | [2] | FLANGE | |
| 26. | J781030 | [8] | BOLT;SOCKET | |
| 27. | Y412952 | [2] | ADPTER;S | |
| 28. | Y411693 | [1] | TEE;S | |
| 29. | Y411796 | [1] | TEE;S | |
| 32. | Y414931 | [1] | MOTOR;GEAR | |
| 33. | 4419882 | [2] | ADAPTER;S | |
| 34. | 4277654 | [1] | ELBOW;S | |
| 34A. | R26448R | [1] | O-RING | |
| 37. | Y411208 | [2] | MOTOR;OIL | |
| 38. | 4367380 | [2] | ADAPTER;S | |
| 38A. | U12547U | [1] | O-RING | |
| 39. | 4241381 | [1] | ADAPTER;S | |
| 39A. | 4510185 | [1] | O-RING | |
| 40. | Y412952 | [2] | ADAPTER;S | |
| 42. | Y411207 | [2] | MOTOR;OIL | |
| 43. | 4506459 | [8] | FLANGE;SPLIT | |
| 44. | 971489 | [4] | O-RING | |
| 45. | J781035 | [16] | BOLT;SOCKET | |
| 46. | 4240494 | [2] | ADAPTER;S | |
| 47. | A852333 | [1] | ELBOW;S | |
| 47A. | 4509180 | [1] | O-RING | |
| 48. | A852233 | [1] | ELBOW;S | |
| 48A. | 4509180 | [1] | O-RING | |
| 49. | 966689 | [2] | O-RING | |
| 50. | 4278239 | [1] | ELBOW;S | |
| 50A. | 4510185 | [1] | O-RING | |
