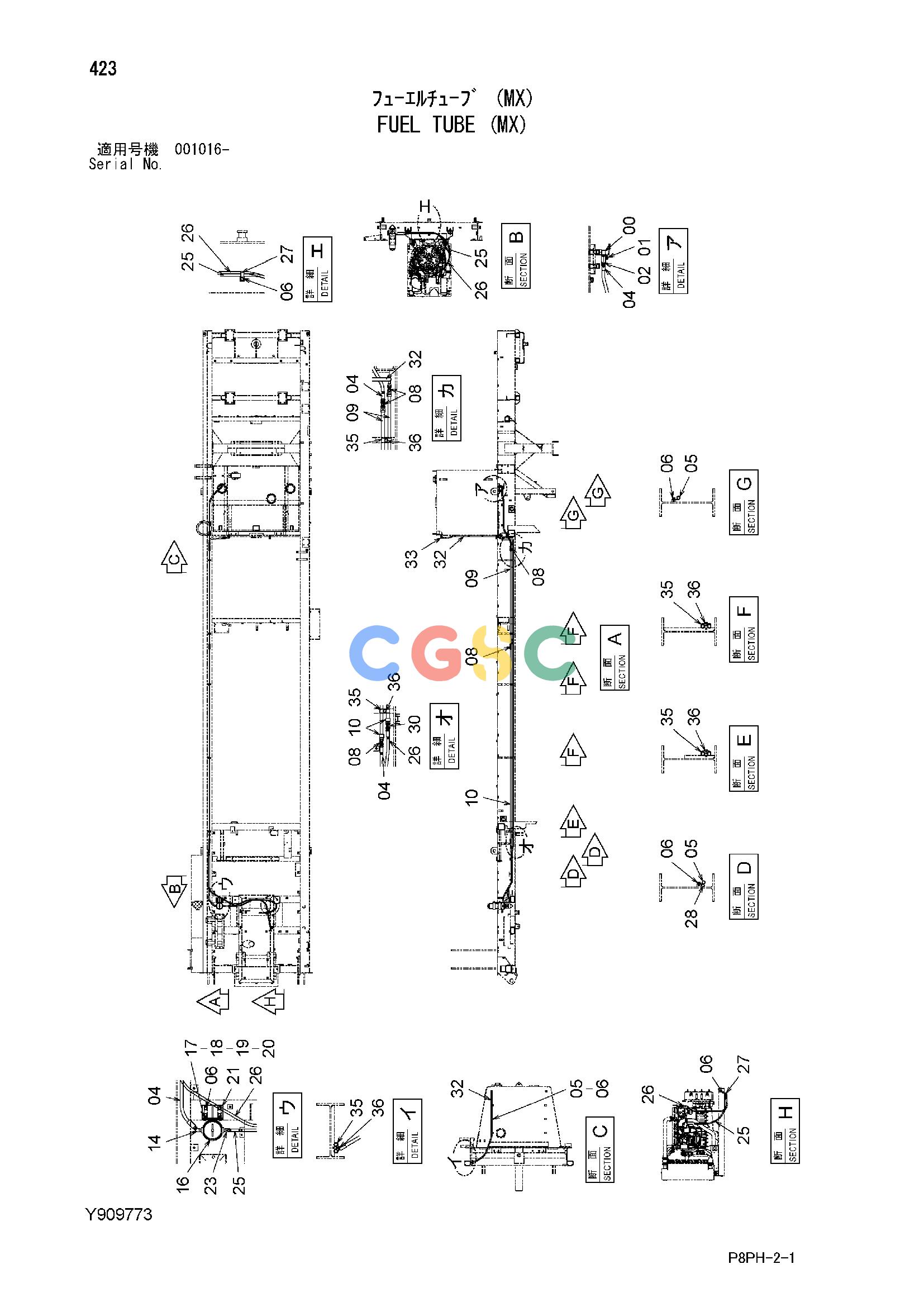

日立零件查询（AR2000）FUEL TUBE (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
145 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 4174588 | [1] | ELBOW;S | |
| 00A. | 4506424 | [1] | O-RING | |
| 01. | 94-4029 | [1] | COCK | |
| 02. | 4317015 | [1] | ADAPTER;S | |
| 04. | Y412941 | [2] | HOSE | |
| 05. | 4190277 | [7] | CLIP | |
| 06. | J271020 | [12] | BOLT;SEMS | |
| 06A. | J901020 | [1] | BOLT | |
| 06B. | J222010 | [1] | WASHER | |
| 08. | 4277889 | [5] | ADAPTER;S | |
| 09. | Y971461 | [2] | PIPE | |
| 10. | Y971462 | [2] | PIPE | |
| 14. | 4182658 | [1] | ELBOW;S | |
| 16. | Y409588 | [1] | FILTER;FUEL | |
| 17. | J900825 | [4] | BOLT | |
| 18. | A590908 | [4] | WASHER;SPRING | |
| 19. | A590108 | [4] | WASHER;PLANE | |
| 20. | J950008 | [4] | NUT | |
| 21. | Y971504 | [1] | BRACKET | |
| 23. | 4215651 | [1] | ADAPTER;S | |
| 25. | Y412942 | [1] | HOSE | |
| 26. | Y412943 | [1] | HOSE | |
| 27. | 4190282 | [1] | CLIP | |
| 28. | 4190273 | [2] | CLIP | |
| 30. | 4354585 | [1] | ADAPTER;S | |
| 32. | Y412944 | [1] | HOSE | |
| 33. | 4353073 | [1] | ELBOW;S | |
| 33A. | 4506424 | [1] | O-RING | |
| 35. | 4189858 | [5] | CLAMP;PIPE | |
| 36. | J271245 | [5] | BOLT;SEMS | |
| 36A. | J901245 | [1] | BOLT | |
| 36B. | J222012 | [1] | WASHER | |
