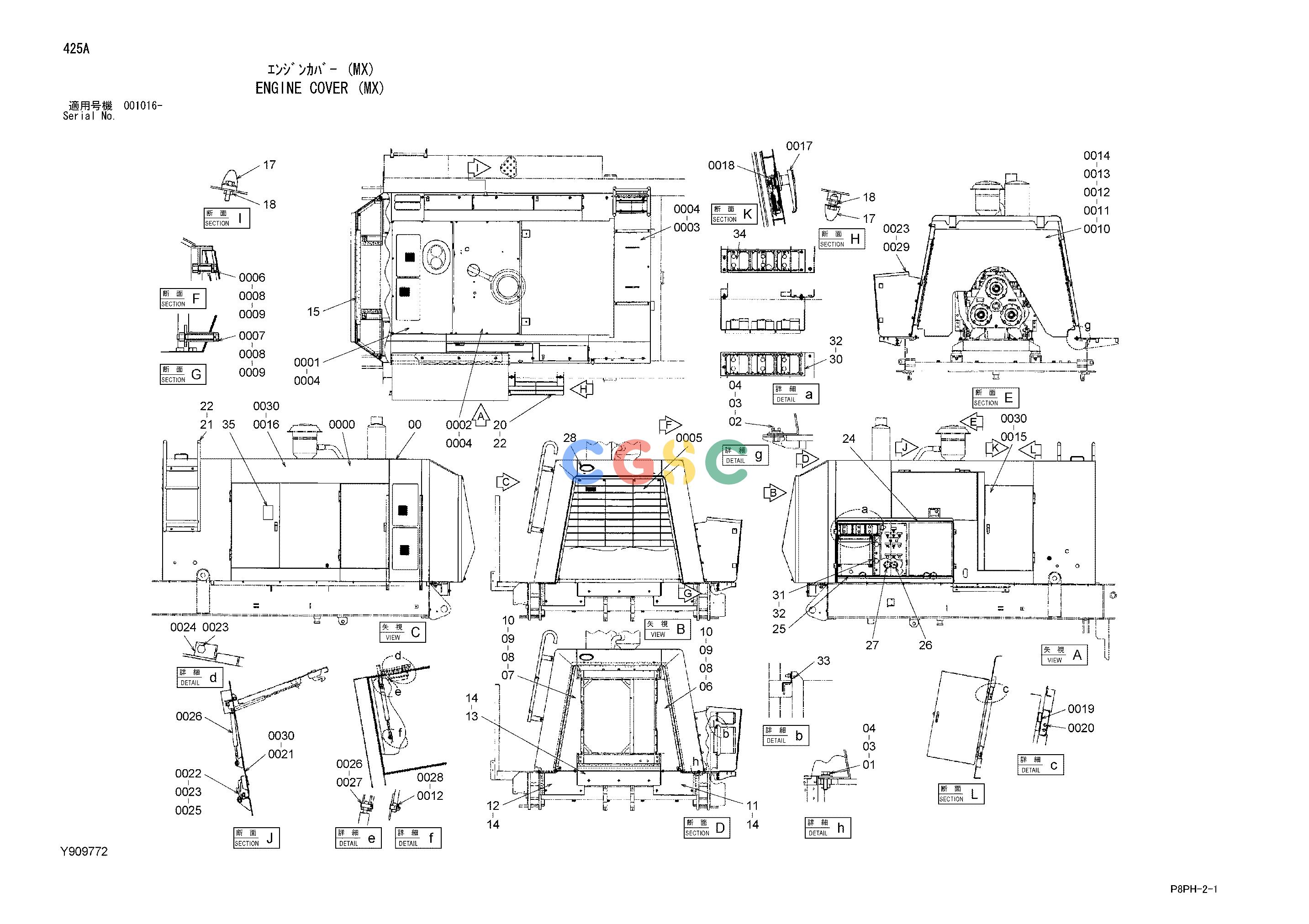

日立零件查询（AR2000）ENGINE COVER (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
685 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y413105 | [1] | COVER;ENGINE | |
| 00. | Y414233 | [1] | COVER;ENGINE | |
| 0000. | Y500311 | [1] | COVER;ENGINE | |
| 0000. | Y500316 | [1] | COVER;ENGINE | |
| 0001. | Y802264 | [1] | ROOF | |
| 0002. | Y802263 | [1] | ROOF | |
| 0002. | Y802350 | [1] | ROOF | |
| 0003. | Y802262 | [1] | COVER | |
| 0004. | J260820 | [21] | BOLT;SEMS | |
| 0004A. | J900820 | [1] | BOLT | |
| 0004B. | A590108 | [1] | WASHER;PLANE | |
| 0005. | Y700985 | [1] | COVER;FRONT | |
| 0006. | J901050 | [4] | BOLT | |
| 0007. | J901090 | [2] | BOLT | |
| 0008. | A590110 | [6] | WASHER;PLANE | |
| 0009. | A590910 | [6] | WASHER;SPRING | |
| 0010. | Y301829 | [1] | COVER | |
| 0011. | J900820 | [6] | BOLT | |
| 0012. | A590108 | [8] | WASHER;PLANE | |
| 0013. | A590908 | [6] | WASHER;SPRING | |
| 0014. | M500807 | [6] | NUT | |
| 0015. | Y700916 | [1] | DOOR (R) | |
| 0016. | Y700917 | [2] | DOOR (L) | |
| 0017. | Y411669 | [3] | HANDLE;DOOR | |
| 0018. | Y411721 | [3] | RATCH | |
| 0019. | Y411623 | [8] | HINGE | |
| 0020. | J260825 | [16] | BOLT;SEMS | |
| 0020A. | J900825 | [1] | BOLT | |
| 0020B. | A590108 | [1] | WASHER;PLANE | |
| 0021. | Y700992 | [1] | DOOR | |
| 0022. | Y971547 | [1] | CATCH | |
| 0022. | Y971593 | [1] | CATCH | |
| 0023. | J271025 | [11] | BOLT;SEMS | |
| 0023A. | J901025 | [1] | BOLT | |
| 0023B. | J222010 | [1] | WASHER | |
| 0024. | Y413099 | [1] | STOPPER | |
| 0025. | Y413100 | [1] | SHIM | |
| 0026. | Y413103 | [2] | CYL. | |
| 0027. | 4430050 | [2] | PIN | |
| 0028. | 4022697 | [4] | PIN;LOCK | |
| 0029. | Y700988 | [1] | COVER | |
| 0030. | Y412690 | [4] | RUBBER | |
| 01. | J921035 | [2] | BOLT | |
| 02. | J921025 | [14] | BOLT | |
| 03. | A590910 | [16] | WASHER;SPRING | |
| 04. | J217083 | [16] | WASHER | |
| 06. | Y700995 | [1] | COVER | |
| 07. | Y700996 | [1] | COVER | |
| 08. | J900820 | [8] | BOLT | |
| 09. | A590908 | [8] | WASHER;SPRING | |
| 10. | A590108 | [8] | WASHER;PLANE | |
| 11. | Y700999 | [1] | COVER | |
| 12. | Y701000 | [1] | COVER | |
| 13. | Y802308 | [1] | COVER | |
| 14. | J271020 | [11] | BOLT;SEMS | |
| 14A. | J901020 | [1] | BOLT | |
| 14B. | J222010 | [1] | WASHER | |
| 15. | Y411734 | [1] | RUBBER | |
| 17. | 4204586 | [2] | STOPPER | |
| 18. | J950010 | [2] | NUT | |
| 20. | Y802279 | [1] | STEP | |
| 21. | Y802280 | [1] | LADDER | |
| 22. | J271025 | [8] | BOLT;SEMS | |
| 22A. | J901025 | [1] | BOLT | |
| 22B. | J222010 | [1] | WASHER | |
| 24. | Y413067 | [1] | RUBBER | |
| 25. | Y413068 | [1] | RUBBER | |
| 26. | 4161992 | [3] | BUSHING;RUBBER | |
| 27. | 4075227 | [2] | BUSHING;RUBBER | |
| 28. | Y410249 | [1] | RUBBER | |
| 30. | Y301848 | [1] | BRACKET | |
| 31. | Y412949 | [1] | BRACKET | |
| 31. | Y971584 | [1] | BRACKET | |
| 32. | J260820 | [6] | BOLT;SEMS | |
| 32A. | J900820 | [1] | BOLT | |
| 32B. | A590108 | [1] | WASHER;PLANE | |
| 33. | Y413066 | [1] | BRACKET | |
| 33. | Y971597 | [1] | BRACKET | |
| 34. | Y413073 | [3] | BRACKET | |
| 35. | Y414232 | [1] | RUBBER | |
