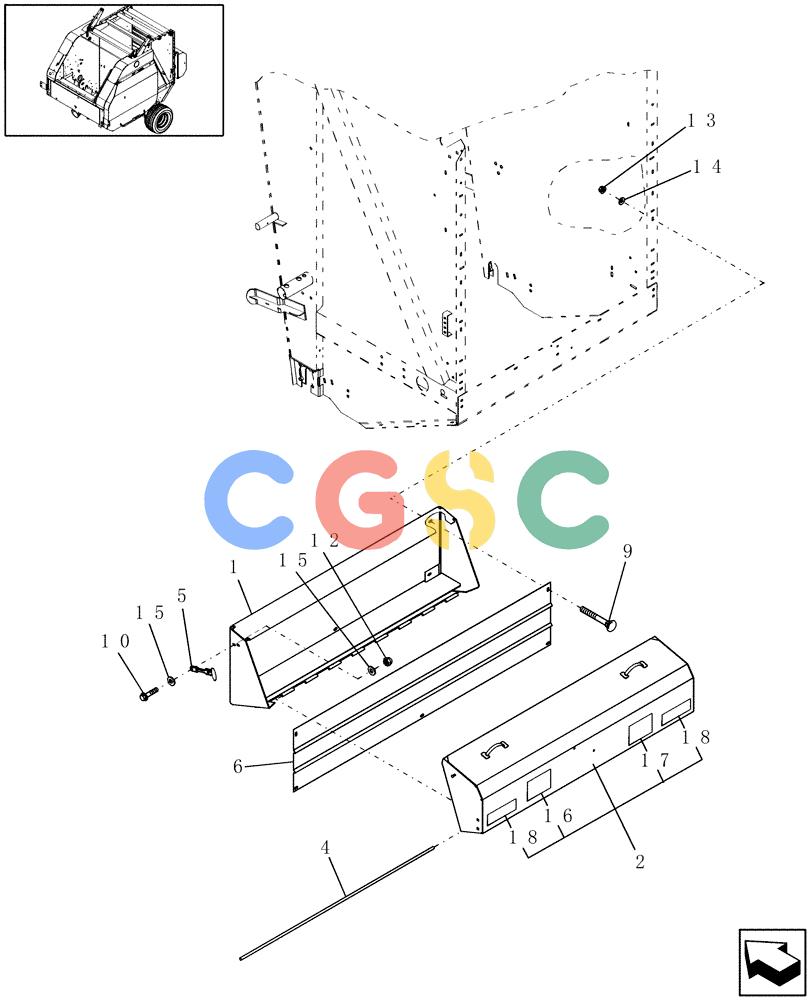

凯斯零件查询(RBX453) - CASE IH ROUND BALER (9/05-12/06) (08.71) - SHIELDS, NET BOX, SINGLE, NORTH AMERICA Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
223 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86729858
|
[1] |
SUPPORT
|
NH
|
| 2. |
87019808
|
[1] |
LID
|
PA
|
| 4. |
9617447
|
[1] |
ROLL PIN
|
NH
Hinge
|
| 5. |
86000448
|
[2] |
LATCH
|
NH
Rubber
|
| 6. |
87021785
|
[1] |
SHIELD
|
PA
|
| 9. |
308761
|
[4] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 10. |
844-6020
|
[4] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| 12. |
832-46406
|
[4] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 13. |
825-2408
|
[4] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 14. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 15. |
495-21031
|
[8] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| 16. |
86631519
|
[1] |
DANGER DECAL
|
NH
English
|
| 16. |
86632802
|
[1] |
DECAL
|
NH
DANGER, French
|
| 17. |
86631516
|
[1] |
WARNING DECAL
|
NH
English
|
| 17. |
86632799
|
[1] |
DANGER DECAL
|
NH
WARNING, French
|
| 18. |
86547781
|
[2] |
REFLECTOR,RED
|
NH
Red Retroreflective
|
