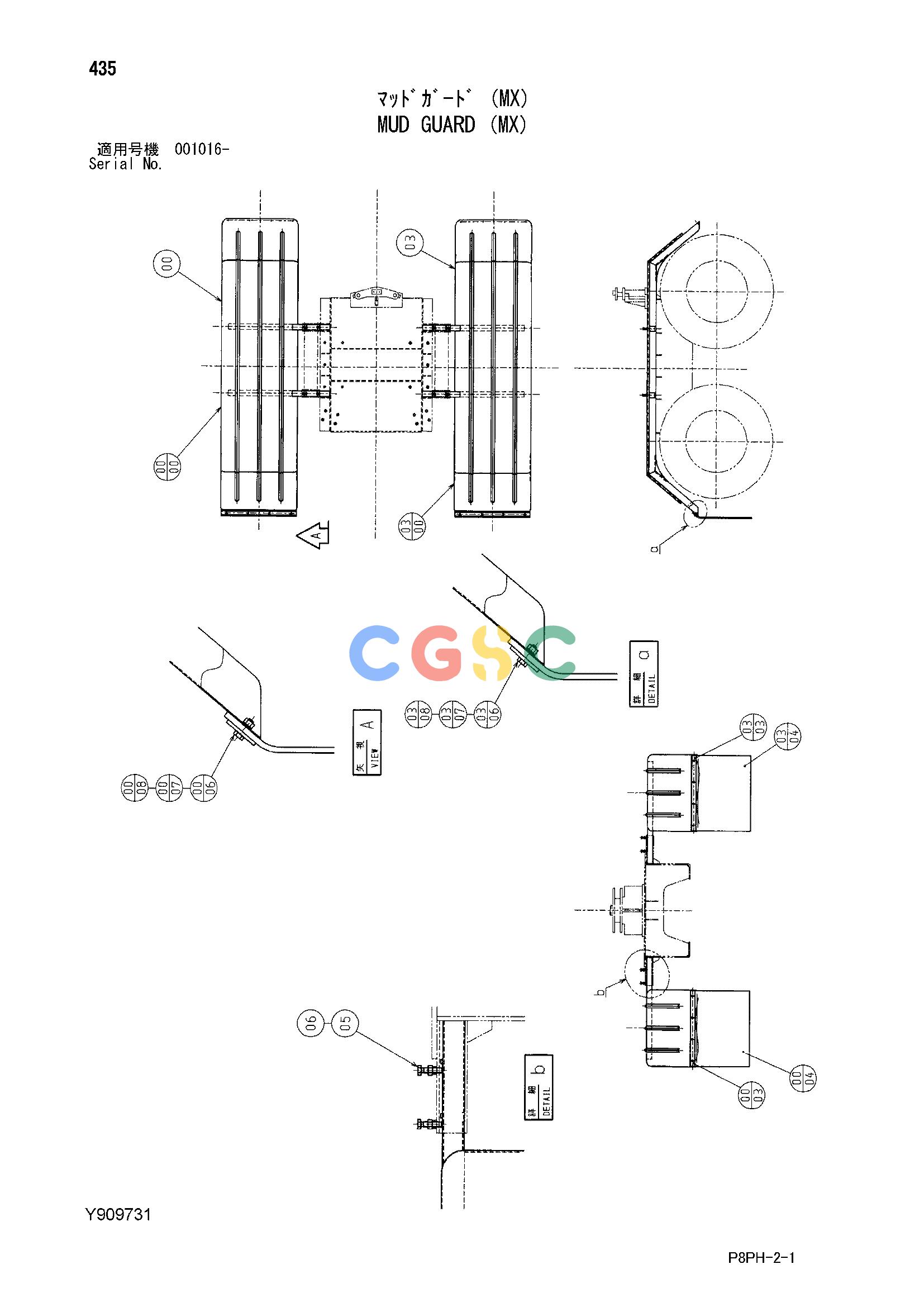

日立零件查询（AR2000）MUD GUARD (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
616 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y909732 | [1] | MUD GUARD (L)(MX) | |
| 0000. | Y700829 | [1] | FENDER | |
| 0003. | Y410415 | [1] | FLAT BAR | |
| 0004. | Y410420 | [1] | RUBBER | |
| 0006. | J900825 | [4] | BOLT | |
| 0007. | J950008 | [4] | NUT | |
| 0008. | A590908 | [4] | WASHER;SPRING | |
| 03. | Y909733 | [1] | MUD GUARD (R)(MX) | |
| 0300. | Y700830 | [1] | FENDER | |
| 0303. | Y410415 | [1] | FLAT BAR | |
| 0304. | Y410420 | [1] | RUBBER | |
| 0306. | J900825 | [4] | BOLT | |
| 0307. | J950008 | [4] | NUT | |
| 0308. | A590908 | [4] | WASHER;SPRING | |
| 05. | M261250 | [8] | BOLT | |
| 06. | J950012 | [8] | NUT | |
