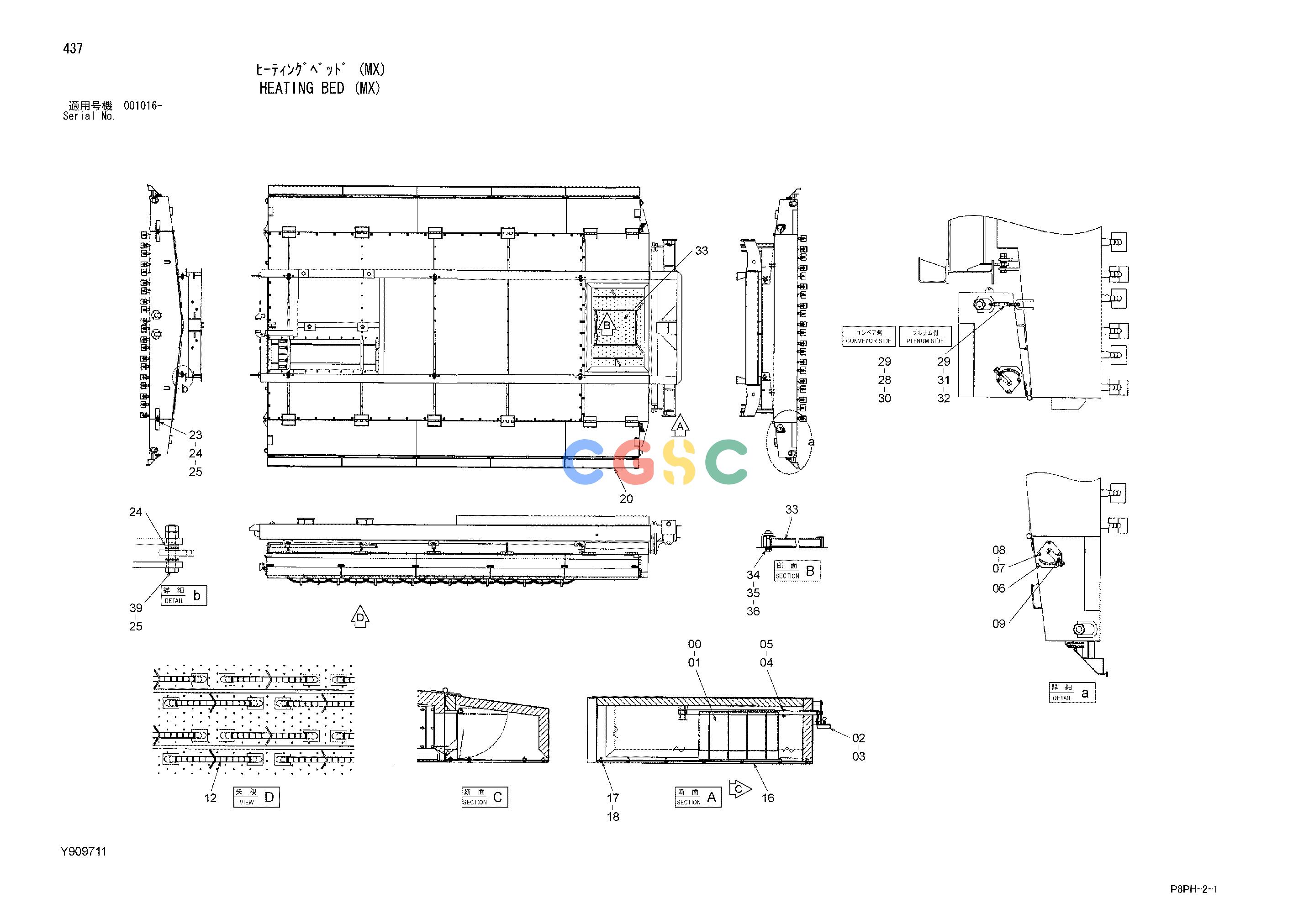

日立零件查询（AR2000）HEATING BED (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
229 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802240 | [1] | DIAPHRAGM | |
| 01. | Y802241 | [1] | DIAPHRAGM | |
| 02. | Y802090 | [1] | LEVER | |
| 03. | Y802089 | [1] | LEVER | |
| 04. | J900835 | [4] | BOLT | |
| 05. | M500807 | [4] | NUT | |
| 06. | Y407851 | [2] | PLATE | |
| 07. | J900816 | [6] | BOLT | |
| 08. | A590908 | [6] | WASHER;SPRING | |
| 09. | M570010 | [2] | NUT;WING | |
| 12. | Y414606 | [150] | BLADE;WIRE | |
| 16. | Y301811 | [2] | SHEET-METAL | |
| 17. | J900820 | [28] | BOLT | |
| 18. | A590108 | [28] | WASHER;PLANE | |
| 20. | Y700980 | [10] | SHIELD | |
| 23. | J921670 | [2] | BOLT | |
| 24. | A590116 | [44] | WASHER;PLANE | |
| 25. | J950016 | [14] | NUT | |
| 28. | Y408029 | [2] | LUG | |
| 29. | Y971057 | [4] | BODY | |
| 30. | Y410186 | [2] | LUG | |
| 31. | Y412804 | [2] | LUG | |
| 32. | Y412803 | [2] | LUG | |
| 33. | Y301711 | [1] | COVER;BOTTOM | |
| 34. | J901060 | [1] | BOLT | |
| 35. | A590910 | [1] | WASHER;SPRING | |
| 36. | A590110 | [1] | WASHER;PLANE | |
| 39. | J921690 | [6] | BOLT | |
