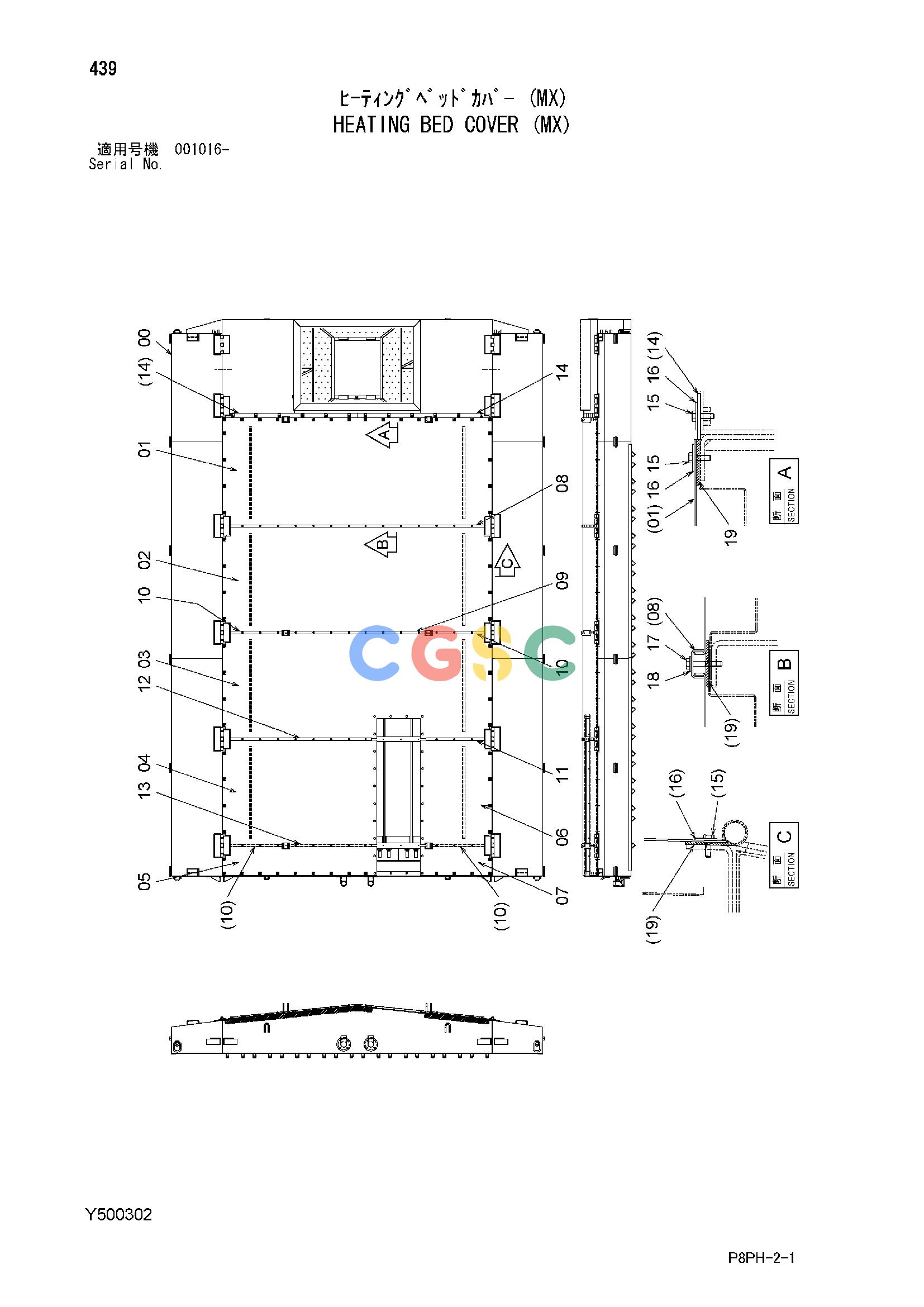

日立零件查询（AR2000）HEATING BED COVER (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y500301 | [1] | MAIN BED | |
| 01. | Y802157 | [1] | SHEET-METAL | |
| 02. | Y802158 | [1] | SHEET-METAL | |
| 03. | Y802159 | [1] | SHEET-METAL | |
| 04. | Y802160 | [1] | SHEET-METAL | |
| 05. | Y301810 | [1] | SHEET-METAL | |
| 06. | Y802163 | [1] | SHEET-METAL | |
| 07. | Y412787 | [1] | SHEET-METAL | |
| 08. | Y412518 | [1] | C-CHANNEL | |
| 09. | Y412519 | [1] | C-CHANNEL | |
| 10. | Y412521 | [4] | C-CHANNEL | |
| 11. | Y412520 | [1] | C-CHANNEL | |
| 12. | Y412523 | [1] | C-CHANNEL | |
| 13. | Y412522 | [1] | C-CHANNEL | |
| 14. | Y412763 | [2] | FLAT BAR | |
| 15. | J900620 | [75] | BOLT | |
| 16. | Y407646 | [75] | WASHER | |
| 17. | J900635 | [50] | BOLT | |
| 18. | A590108 | [50] | WASHER;PLANE | |
| 19. | Y409270 | [1] | 1260 PAPER C | |
