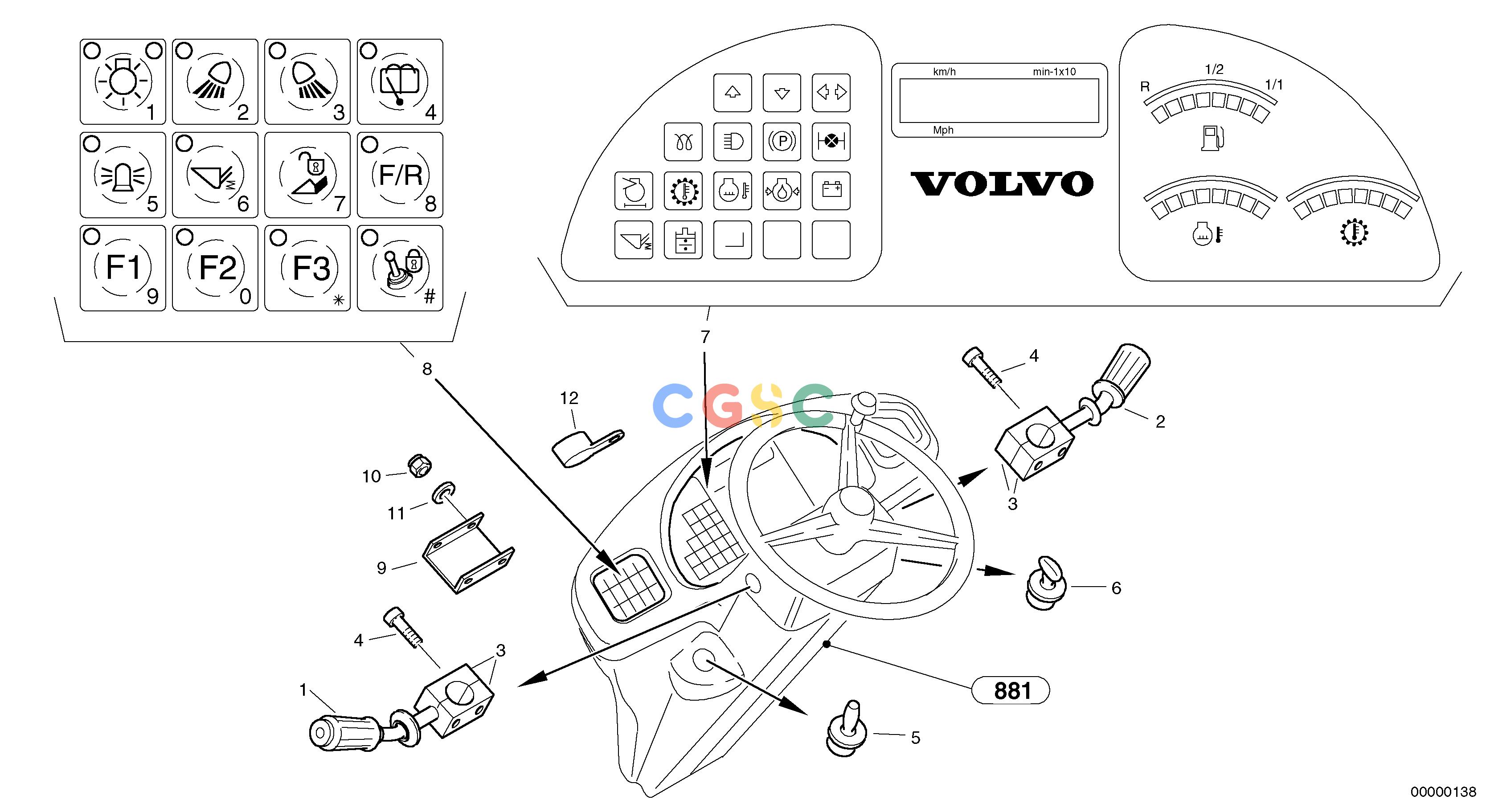

沃尔沃零件查询L35 Instruments panelTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
732 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2907097
|
[1] |
Contact arm
|
|
| 10. |
ZM2289705
|
[14] |
Nut
|
M4
|
| 11. |
VOE955891
|
[4] |
Plain washer
|
A4,3
|
| 12. |
ZM2907927
|
[1] |
Warning buzzer
|
|
| 2. |
ZM2907099
|
[1] |
Contactor
|
|
| 3. |
ZM2804706
|
[4] |
Clamp shoe
|
|
| 4. |
ZM8096556
|
[2] |
Screw
|
M5x30
|
| 5. |
ZM2907100
|
[1] |
Switch
|
|
| 6. |
ZM2907102
|
[1] |
Starter switch
|
|
| 7. |
ZM2907103
|
[1] |
Display
|
|
| 8. |
ZM2907104
|
[1] |
Display
|
|
| 9. |
ZM2907105
|
[1] |
Bracket
|
|
