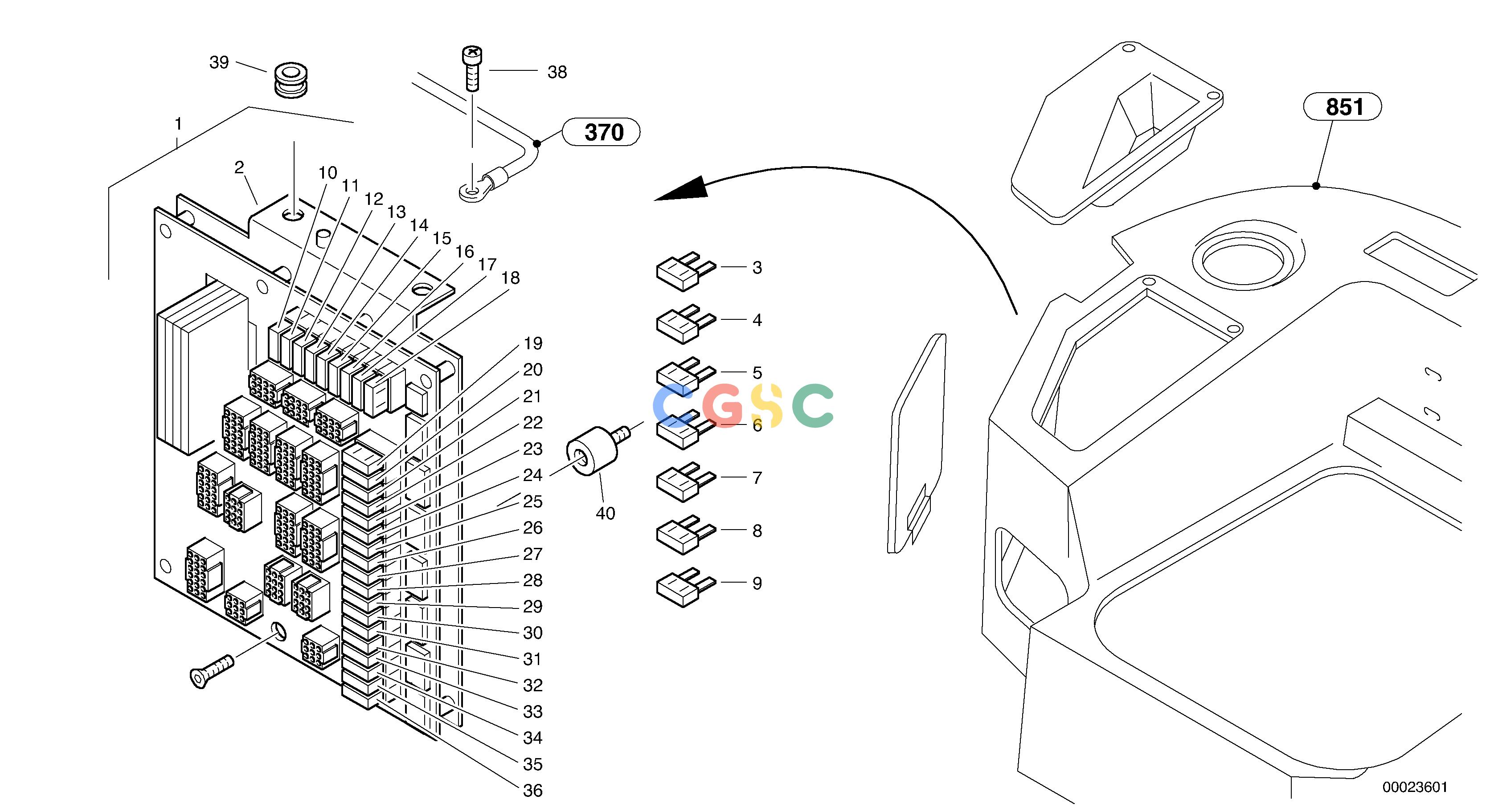

沃尔沃零件查询L35 Central computerTYPE 186, 188, 189 SER NO - 22001860001-1880001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
908 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15216782
|
[1] |
Conversion kit
|
|
| 10. |
|
|
Magnetic clamp: float pos
|
|
| 11. |
|
|
Instrument panel
|
|
| 12. |
|
|
Reversing light
|
|
| 13. |
|
|
Optional hydraulic, 4th c
|
|
| 14. |
|
|
Water pomp, front
|
|
| 15. |
|
|
Aux. Pomp, hydraulic hamm
|
|
| 16. |
|
|
Radio
|
|
| 17. |
|
|
Vehicle horn
|
|
| 18. |
|
|
Water pomp, rear
|
|
| 19. |
|
|
Seat heating
|
|
| 2. |
ZM2811157
|
[1] |
Retainer
|
|
| 20. |
|
|
Inductive transmitter/loading position
|
|
| 21. |
|
|
High beam
|
|
| 22. |
|
|
Water pomp, sweeper
|
|
| 23. |
|
|
Dipped beam, left
|
|
| 24. |
|
|
Dipped beam, right
|
|
| 25. |
|
|
Working beam, front right
|
|
| 26. |
|
|
Inside light
|
|
| 27. |
|
|
Working beam, front left
|
|
| 28. |
|
|
Working beam, rear
|
|
| 29. |
|
|
All-round side lamp
|
|
| 3. |
ZM2810493
|
[2] |
Fuse
|
C1
|
| 30. |
|
|
Vehicle heater
|
|
| 31. |
|
|
Wiper motor, rear
|
|
| 32. |
|
|
Brake light
|
|
| 33. |
|
|
Wall socket
|
|
| 34. |
|
|
Ignition switch
|
|
| 35. |
|
|
Wiper motor, front, step
|
|
| 36. |
|
|
Wiper motor, front, step
|
|
| 38. |
ZM7096665
|
[1] |
Screw
|
M4x10
|
| 39. |
VOE11305425
|
[2] |
Grommet
|
|
| 40. |
ZM2908467
|
[1] |
Buffer
|
|
| 4. |
VOE981405
|
[2] |
Fuse
|
C3
|
| 5. |
VOE13969160
|
[5] |
Fuse
|
C5
|
| 6. |
VOE980555
|
[10] |
Fuse
|
C7,5
|
| 7. |
VOE969161
|
[2] |
Fuse
|
C10
|
| 8. |
VOE13969162
|
[5] |
Fuse
|
|
| 9. |
ZM4375509
|
[1] |
Safety
|
C20
|
