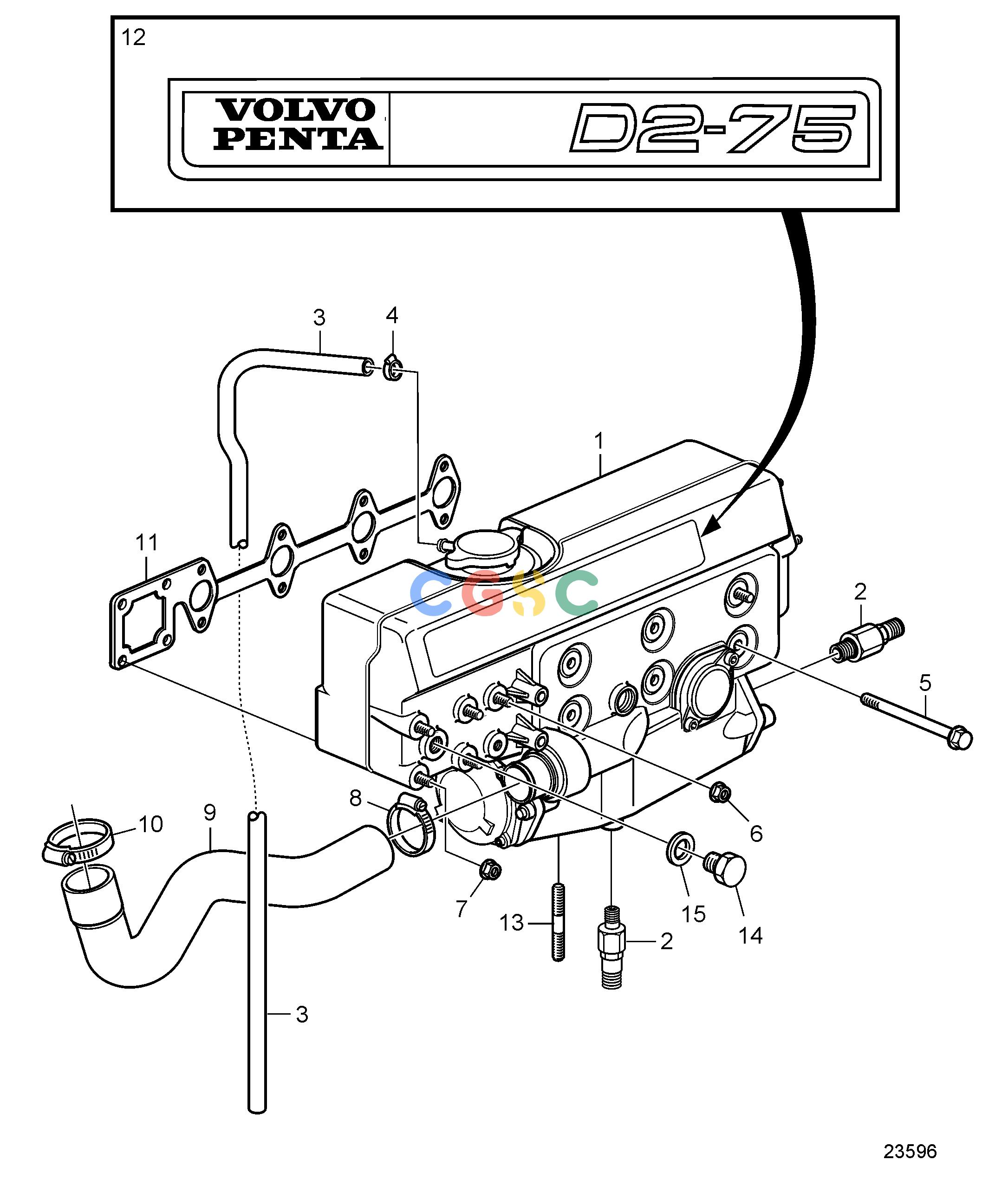

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FCooling SystemHeat ExchangerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
242 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808561
|
[1] |
Heat exchanger
|
|
| 1. |
|
|
|
|
| 2. |
949918
|
[3] |
Shut-off cock
|
|
| 3. |
192618
|
[1] |
Hose
|
|
| 4. |
961662
|
[1] |
Hose clamp
|
|
| 5. |
968842
|
[6] |
Flange screw
|
L=110mm
|
| 6. |
948645
|
[2] |
Flange lock nut
|
D2-75B, D2-75C
|
| 6. |
21246409
|
[2] |
Flange nut
|
D2-75F
|
| 7. |
971096
|
[4] |
Flange nut
|
D2-75B, D2-75C
|
| 7. |
945407
|
[1] |
Flange nut
|
D2-75F
|
| 8. |
853548
|
[1] |
Hose clamp
|
|
| 9. |
3583065
|
[1] |
Pipe
|
|
| 10. |
961669
|
[1] |
Hose clamp
|
|
| 11. |
3583781
|
[1] |
Gasket
|
|
| 12. |
3584101
|
[1] |
Decal
|
|
| 13. |
3584105
|
[4] |
Stud
|
|
| 14. |
960631
|
[1] |
Plug
|
|
| 15. |
11996
|
[1] |
Gasket
|
|
