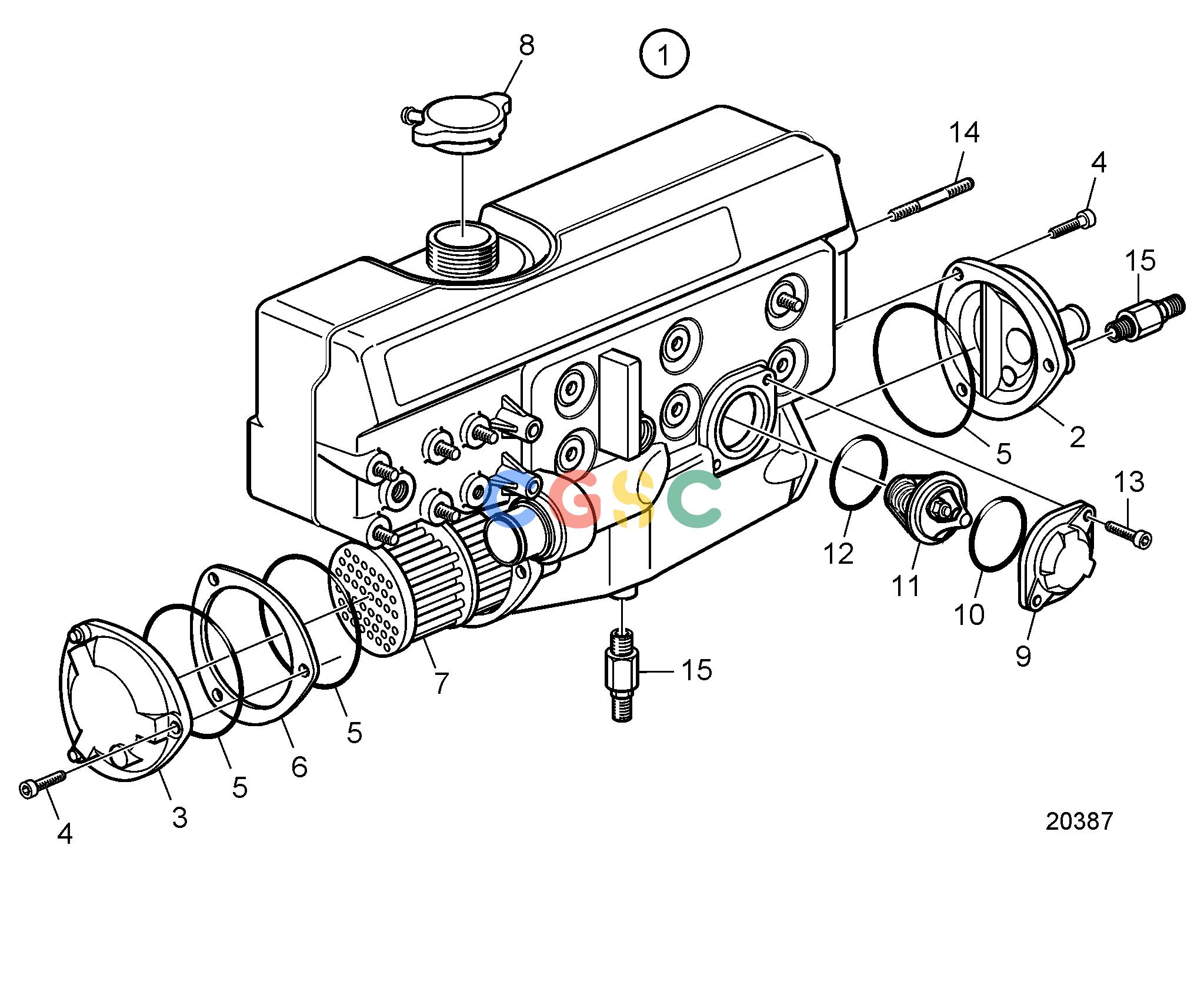

沃尔沃零件查询D2-75; D2-75B; D2-75C; D2-60F; D2-75FCooling SystemHeat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
615 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3808561
|
[1] |
Heat exchanger
|
|
| 2. |
888628
|
[1] |
Cover
|
|
| 3. |
888627
|
[1] |
Heater
|
|
| 4. |
3838337
|
[6] |
Screw
|
|
| 5. |
3581070
|
[4] |
O-ring
|
|
| 6. |
3580870
|
[1] |
Washer
|
|
| 7. |
888626
|
[1] |
Heater
|
|
| 8. |
888625
|
[1] |
Cap
|
|
| 9. |
888622
|
[1] |
Cover
|
|
| 10. |
3586514
|
[1] |
O-ring
|
(888623)
|
| 11. |
888624
|
[1] |
Thermostat
|
|
| 12. |
3583830
|
[1] |
O-ring
|
|
| 13. |
959222
|
[2] |
Hex. socket screw
|
|
| 14. |
3584203
|
[4] |
Stud
|
|
| 15. |
949918
|
[2] |
Shut-off cock
|
|
