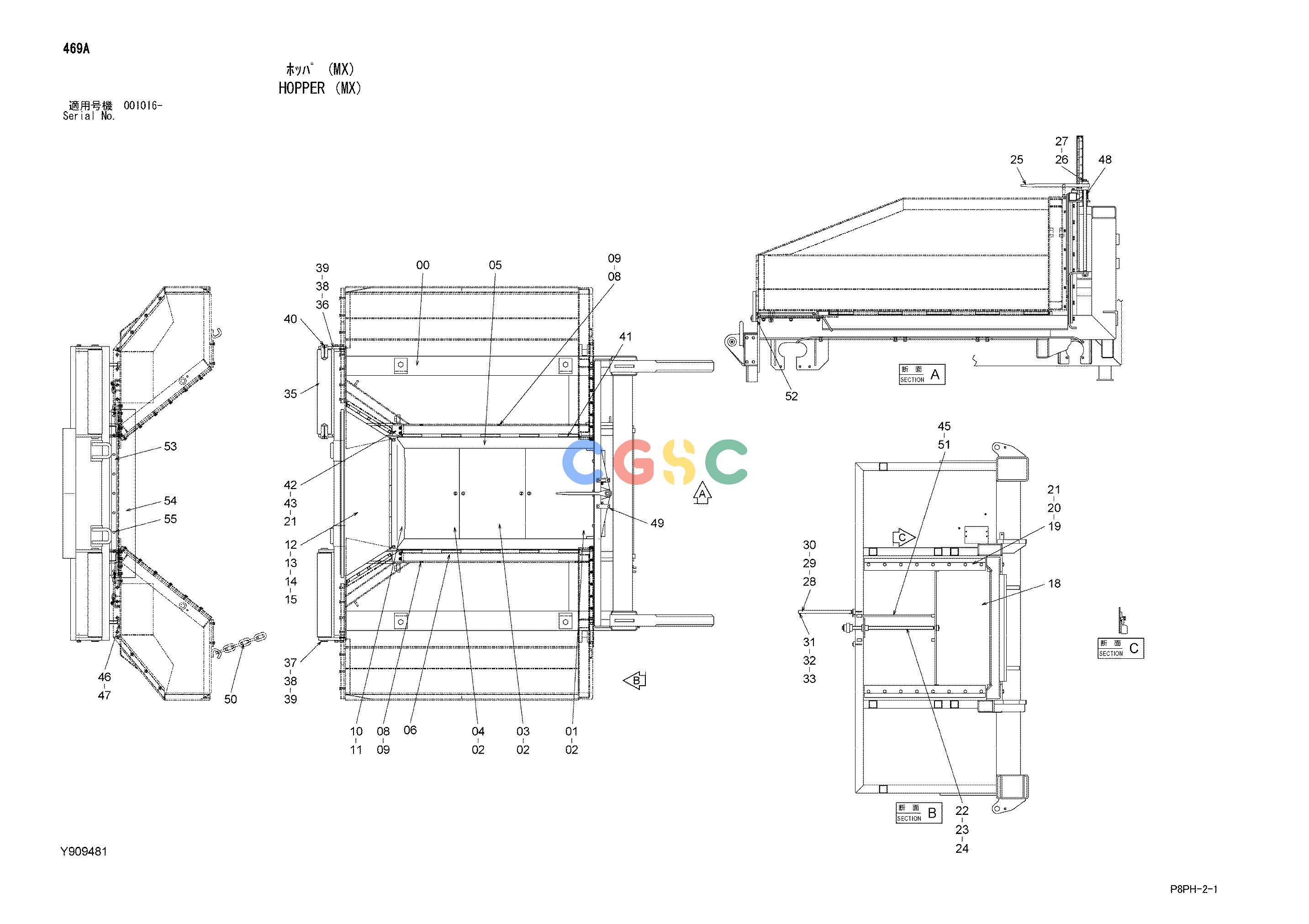

日立零件查询（AR2000）HOPPER (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
158 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y500304 | [1] | FRAME | |
| 01. | Y301827 | [1] | PLATE | |
| 02. | Y413040 | [17] | BOLT;FLUSH | |
| 03. | Y301826 | [1] | PLATE | |
| 04. | Y301828 | [1] | PLATE | |
| 05. | Y802260 | [1] | COVER | |
| 06. | Y802261 | [1] | COVER | |
| 08. | J901202 | [6] | BOLT | |
| 09. | A590912 | [6] | WASHER;SPRING | |
| 10. | Y802266 | [1] | BRACKET | |
| 11. | Y413039 | [6] | BOLT;FLUSH | |
| 12. | Y700994 | [1] | WING | |
| 13. | Y413003 | [1] | PIN | |
| 14. | J900616 | [2] | BOLT | |
| 15. | A590106 | [2] | WASHER;PLANE | |
| 18. | Y802258 | [1] | GATE | |
| 19. | Y413054 | [2] | PLATE | |
| 20. | J901025 | [16] | BOLT | |
| 21. | A590910 | [20] | WASHER;SPRING | |
| 22. | Y802310 | [1] | BOLT | |
| 23. | Y412961 | [1] | DISC | |
| 24. | 4052135 | [1] | PIN;SPRING | |
| 25. | Y412968 | [1] | RATCHET | |
| 26. | Y413108 | [1] | PLATE | |
| 27. | J901050 | [1] | BOLT | |
| 28. | Y802257 | [1] | BRACKET | |
| 29. | J900816 | [2] | BOLT | |
| 30. | A590108 | [2] | WASHER;PLANE | |
| 31. | Y301824 | [1] | NAME-PLATE | |
| 32. | M430306 | [4] | SCREW | |
| 33. | A590103 | [4] | WASHER;PLANE | |
| 35. | Y412966 | [2] | ROLLER | |
| 36. | Y802265 | [1] | BRACKET | |
| 37. | Y802275 | [1] | BRACKET | |
| 38. | J901645 | [8] | BOLT | |
| 39. | A590116 | [8] | WASHER;PLANE | |
| 40. | J75481 | [4] | FITTING;GREASE | |
| 41. | Y412965 | [2] | PIN | |
| 42. | Y412964 | [2] | BLOCK | |
| 43. | J781025 | [4] | BOLT;SOCKET | |
| 45. | A763028 | [1] | PIN;SPLIT | |
| 46. | Y414199 | [4] | BOLT | |
| 47. | J950024 | [4] | NUT | |
| 48. | Y414200 | [1] | SPACER | |
| 49. | J900812 | [2] | BOLT | |
| 50. | Y414016 | [1] | CHAIN | |
| 51. | Y415422 | [1] | BAR | |
| 52. | Y415427 | [1] | PLATE | |
| 53. | Y415428 | [1] | PLATE | |
| 54. | Y415429 | [1] | RUBBER | |
| 55. | J901035 | [8] | BOLT | |
