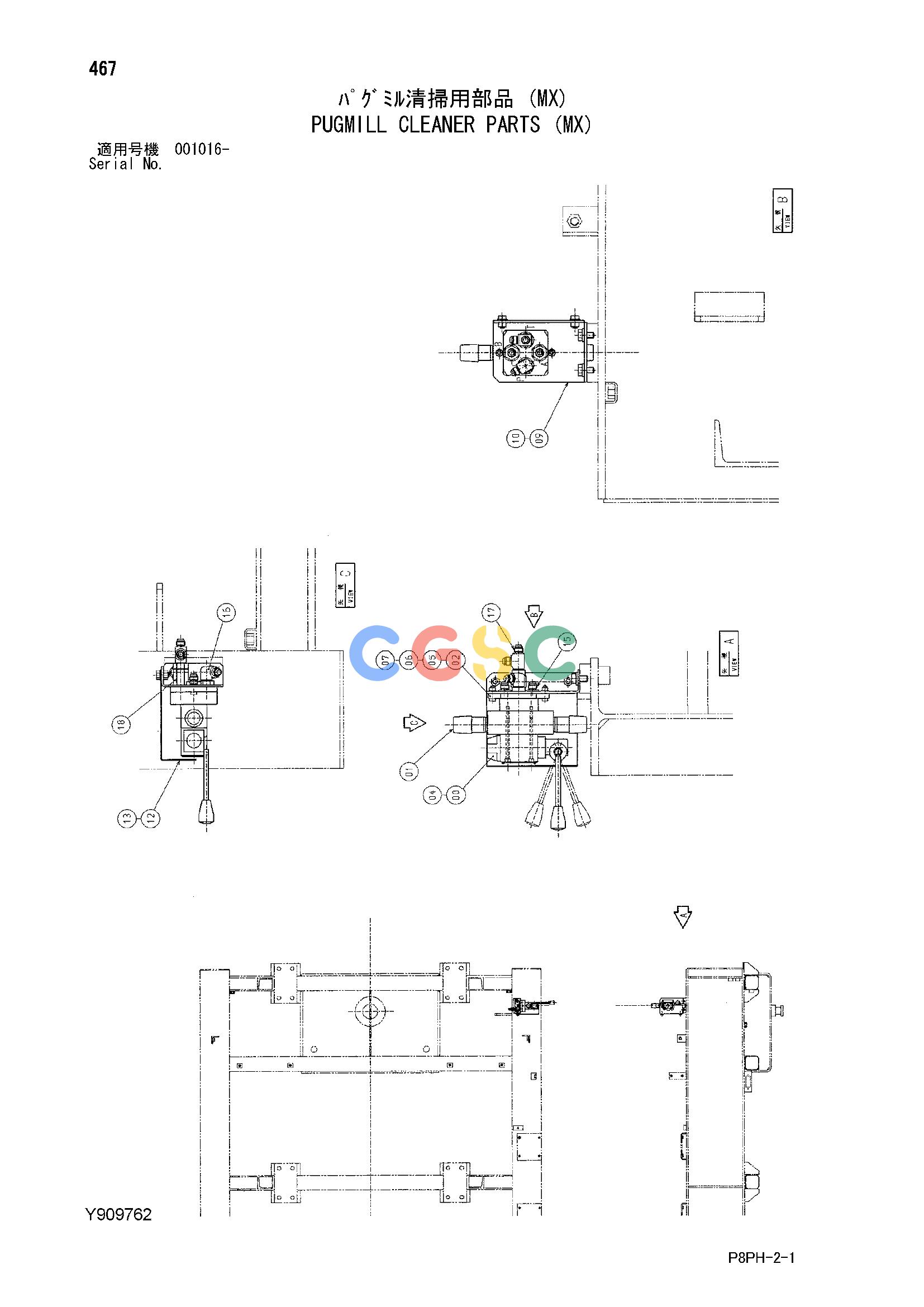

日立零件查询（AR2000）PUGMILL CLEANER PARTS (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
164 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y410852 | [1] | VALVE;CONTROL | |
| 01. | Y410902 | [1] | VALCVE;RELIEF | |
| 02. | Y412542 | [1] | SUB PLATE | |
| 04. | Y413090 | [4] | BOLT;SOCKET | |
| 05. | J780620 | [2] | BOLT;SOCKET | |
| 06. | M500605 | [2] | NUT | |
| 07. | A590906 | [2] | WASHER;SPRING | |
| 09. | Y801930 | [1] | BRACKET | |
| 10. | J271020 | [2] | BOLT;SEMS | |
| 10A. | J901020 | [1] | BOLT | |
| 10B. | J222010 | [1] | WASHER | |
| 12. | Y410850 | [1] | COVER | |
| 13. | J260816 | [2] | BOLT;SEMS | |
| 13A. | J900816 | [1] | BOLT | |
| 13B. | A590108 | [1] | WASHER;PLANE | |
| 15. | A852133 | [2] | ADAPTER;S | |
| 15A. | 4509180 | [1] | O-RING | |
| 16. | A852333 | [1] | ELBOW;S | |
| 16A. | 4509180 | [1] | O-RING | |
| 17. | A852433 | [1] | TEE;S | |
| 17A. | 4509180 | [1] | O-RING | |
| 18. | 4214603 | [1] | ADAPTER;S | |
| 18A. | 4509180 | [1] | O-RING | |
