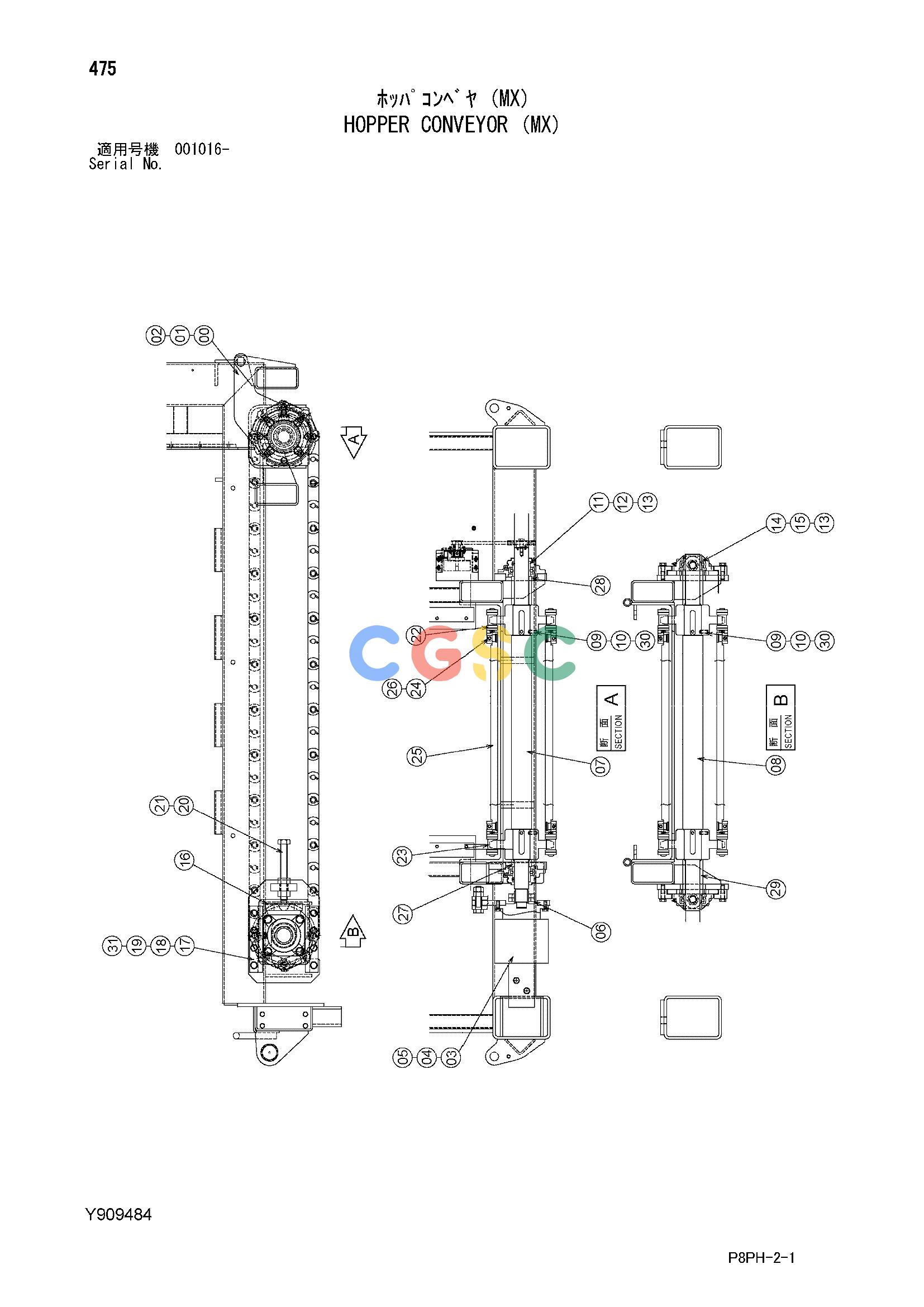

日立零件查询（AR2000）HOPPER CONVEYOR (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
783 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y301822 | [1] | ARM | |
| 01. | M262080 | [1] | BOLT | |
| 02. | J950020 | [2] | NUT | |
| 03. | Y411210 | [1] | MOTOR;OIL | |
| 04. | J901030 | [8] | BOLT | |
| 05. | A590110 | [8] | WASHER;PLANE | |
| 06. | J900620 | [8] | BOLT | |
| 07. | Y301843 | [1] | SHAFT | |
| 08. | Y301844 | [1] | SHAFT | |
| 09. | Y412971 | [4] | SPROCKET | |
| 10. | Y413033 | [4] | KEY | |
| 11. | Y412973 | [2] | BRG.;UNIT | |
| 12. | J901440 | [8] | BOLT | |
| 13. | A590114 | [16] | WASHER;PLANE | |
| 14. | Y412972 | [2] | BRG.;UNIT | |
| 15. | J901435 | [8] | BOLT | |
| 16. | Y802256 | [2] | BRACKET | |
| 17. | Y412969 | [4] | PLATE | |
| 18. | J901250 | [16] | BOLT | |
| 19. | A590112 | [18] | WASHER;PLANE | |
| 20. | Y412970 | [2] | BOLT | |
| 21. | J950024 | [2] | NUT | |
| 22. | Y600535 | [1] | CHAIN | |
| 23. | Y600536 | [1] | CHAIN | |
| 24. | Y412967 | [26] | PIN | |
| 25. | Y301823 | [13] | BAR | |
| 26. | 4502750 | [26] | PIN;SPRING | |
| 27. | Y413001 | [1] | COLLOR | |
| 28. | Y413000 | [1] | COLLOR | |
| 29. | Y412999 | [2] | COLLER | |
| 30. | Y414201 | [8] | SCREW | |
| 31. | J950012 | [2] | NUT | |
