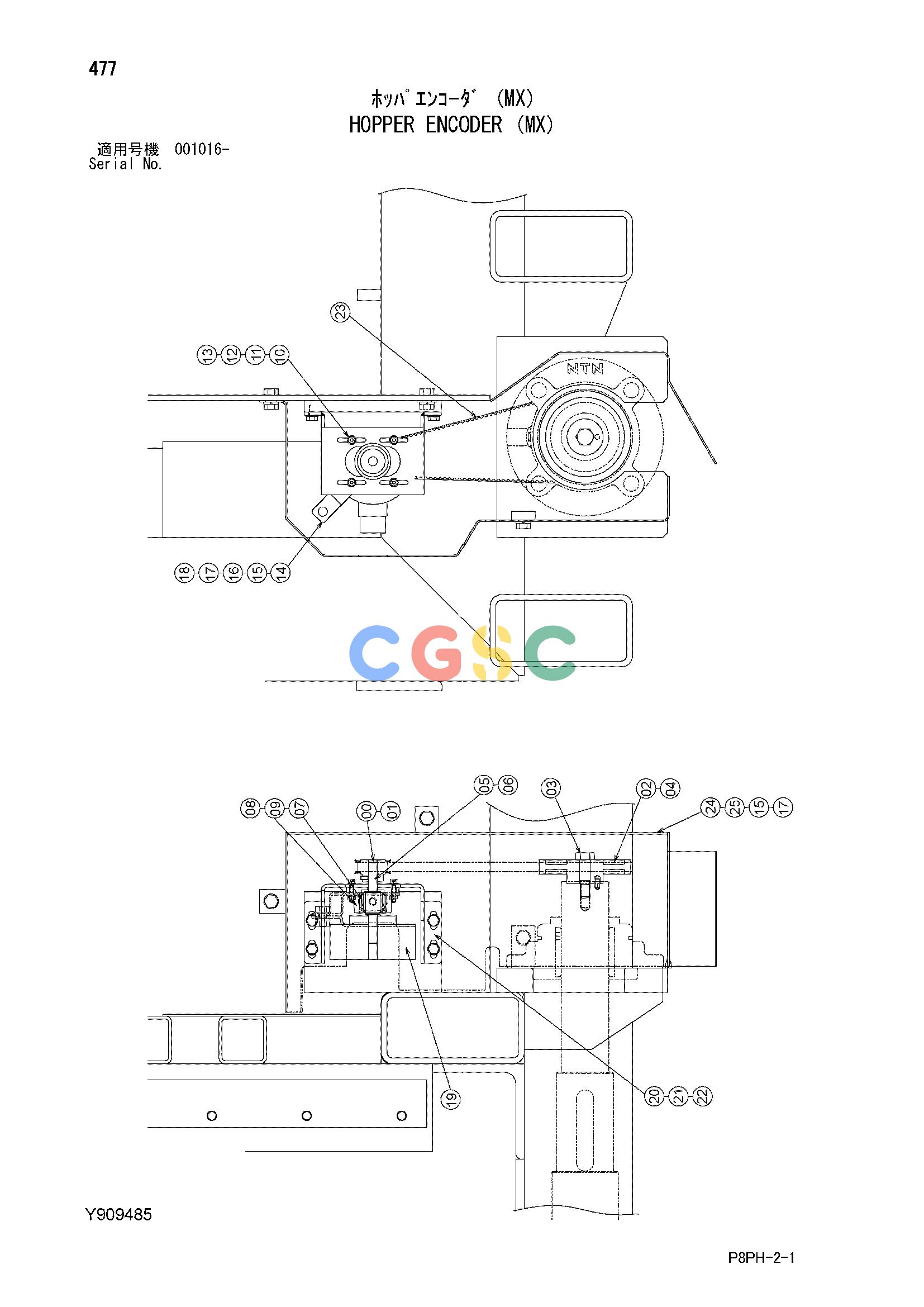

日立零件查询（AR2000）HOPPER ENCODER (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
573 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y410205 | [1] | WHEEL;DRIVE | |
| 01. | Y410215 | [1] | SCREW;SET | |
| 02. | Y410336 | [1] | WHEEL;DRIVE | |
| 03. | M321140 | [1] | BOLT;REAMER | |
| 04. | J400510 | [1] | PIN;KNOCK | |
| 05. | Y410501 | [1] | SHAFT | |
| 06. | Y410513 | [1] | RING;RETAINING | |
| 07. | Y410512 | [1] | BRG. | |
| 08. | 443946 | [1] | RING;RETAINING | |
| 09. | Y410500 | [1] | HOUSING | |
| 10. | J780420 | [4] | BOLT;SOCKET | |
| 11. | A590104 | [4] | WASHER;PLANE | |
| 12. | A590904 | [4] | WASHER;SPRING | |
| 13. | M500403 | [4] | NUT | |
| 14. | Y410499 | [1] | BRACKET | |
| 15. | J900816 | [4] | BOLT | |
| 16. | A590108 | [1] | WASHER;PLANE | |
| 17. | A590908 | [4] | WASHER;SPRING | |
| 18. | M500807 | [1] | NUT | |
| 19. | Y411792 | [1] | ENCODER | |
| 20. | Y802274 | [1] | BRACKET | |
| 21. | J900612 | [4] | BOLT | |
| 22. | A590906 | [4] | WASHER;SPRING | |
| 23. | Y412976 | [1] | BELT | |
| 24. | Y700993 | [1] | COVER | |
| 25. | Y413074 | [1] | PACKING | |
