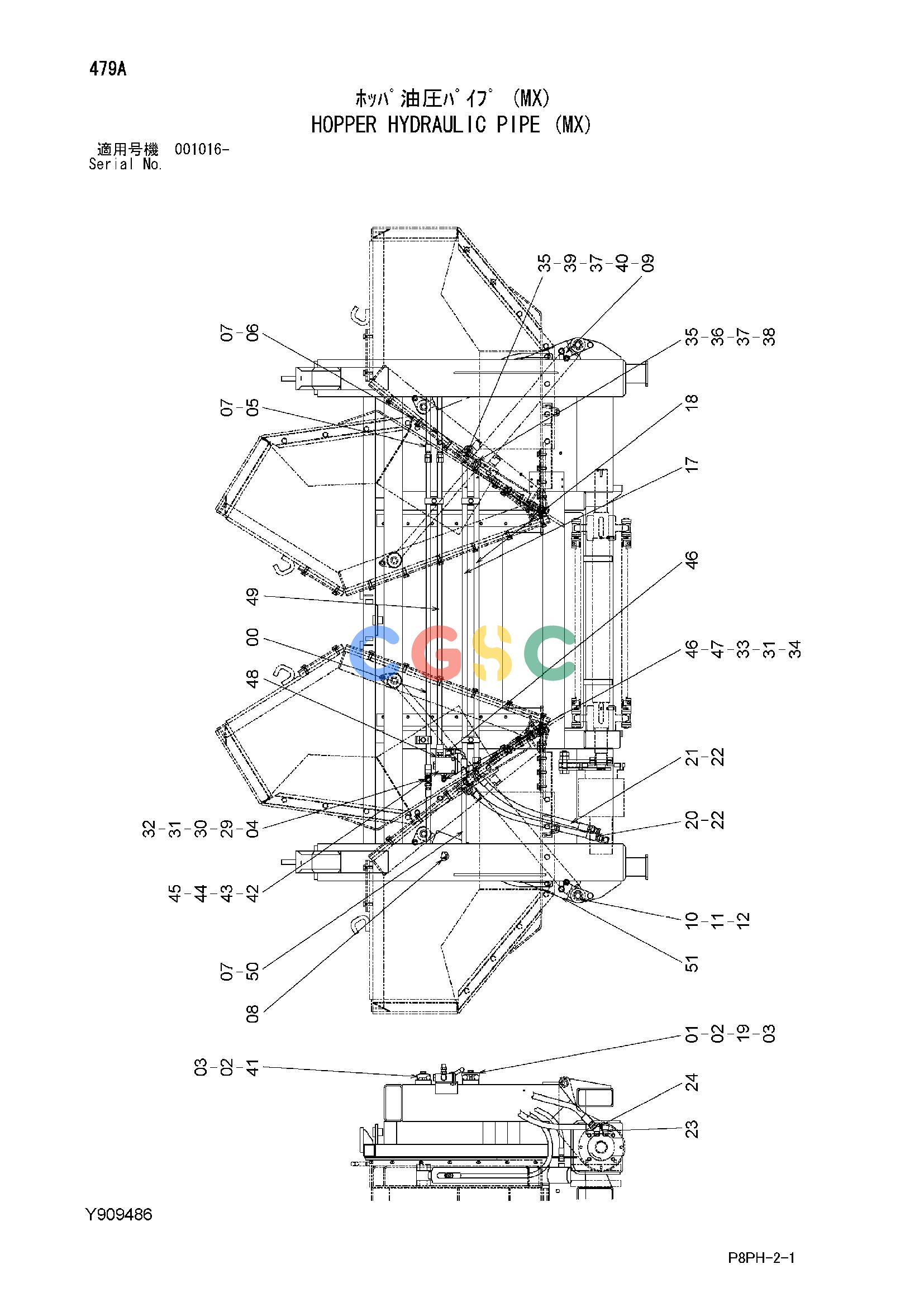

日立零件查询（AR2000）HOPPER HYDRAULIC PIPE (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
216 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y802276 | [1] | PIPE | |
| 01. | 4053593 | [3] | CLAMP;PIPE | |
| 02. | J901040 | [2] | BOLT | |
| 03. | A590910 | [4] | WASHER;SPRING | |
| 04. | 4226236 | [1] | UNION;M | |
| 05. | Y413046 | [2] | HOSE | |
| 06. | Y413047 | [1] | HOSE | |
| 07. | 4327315 | [17] | PROTECTOR | |
| 08. | A852123 | [4] | ADAPTER;S | |
| 08A. | 957366 | [1] | O-RING | |
| 09. | Y412777 | [1] | CYL.;HOPPER (L) | |
| 09A. | Y415063 | [1] | KIT;SEAL | |
| 10. | Y802259 | [4] | BRACKET | |
| 11. | J901220 | [4] | BOLT | |
| 12. | A590912 | [4] | WASHER;SPRING | |
| 17. | Y802277 | [1] | PIPE | |
| 18. | Y802278 | [1] | PIPE | |
| 19. | J901045 | [2] | BOLT | |
| 20. | Y413044 | [1] | HOSE | |
| 21. | Y413045 | [1] | HOSE | |
| 22. | 4446406 | [3] | PROTECTOR | |
| 23. | 4154658 | [1] | ELBOW;S | |
| 24. | 4182658 | [1] | ELBOW;S | |
| 29. | Y412619 | [1] | ADAPTER;S | |
| 30. | Y413112 | [1] | COUPLER;QUICK | |
| 31. | Y413121 | [2] | WIRE;ROPE | |
| 32. | Y413115 | [1] | CAP;DUST | |
| 33. | Y413110 | [1] | COUPLER;QUICK | |
| 34. | Y413114 | [1] | PLUG | |
| 35. | Y411985 | [2] | ADAPTER;S | |
| 36. | Y413113 | [1] | COUPLER;QUICK | |
| 37. | Y413122 | [2] | WIRE;ROPE | |
| 38. | Y413120 | [1] | CAP;DUST | |
| 39. | Y413111 | [1] | COUPLER;QUICK | |
| 40. | Y413119 | [1] | PLUG | |
| 41. | 4190124 | [1] | CLAMP;PIPE | |
| 42. | Y414230 | [1] | VALVE;DIVIDER | |
| 43. | J900650 | [2] | BOLT | |
| 44. | A590906 | [2] | WASHER;SPRING | |
| 45. | A590106 | [2] | WASHER;PLANE | |
| 46. | A852333 | [2] | ELBOW;S | |
| 46A. | 4509180 | [1] | O-RING | |
| 47. | Y414238 | [1] | UNION;S | |
| 48. | A852133 | [1] | ADAPTER;S | |
| 48A. | 4509180 | [1] | O-RING | |
| 49. | Y802355 | [1] | PIPE | |
| 50. | Y414245 | [1] | HOSE | |
| 51. | Y414250 | [1] | CYL.;HOPPER (R) | |
| 51A. | Y415063 | [1] | KIT;SEAL | |
