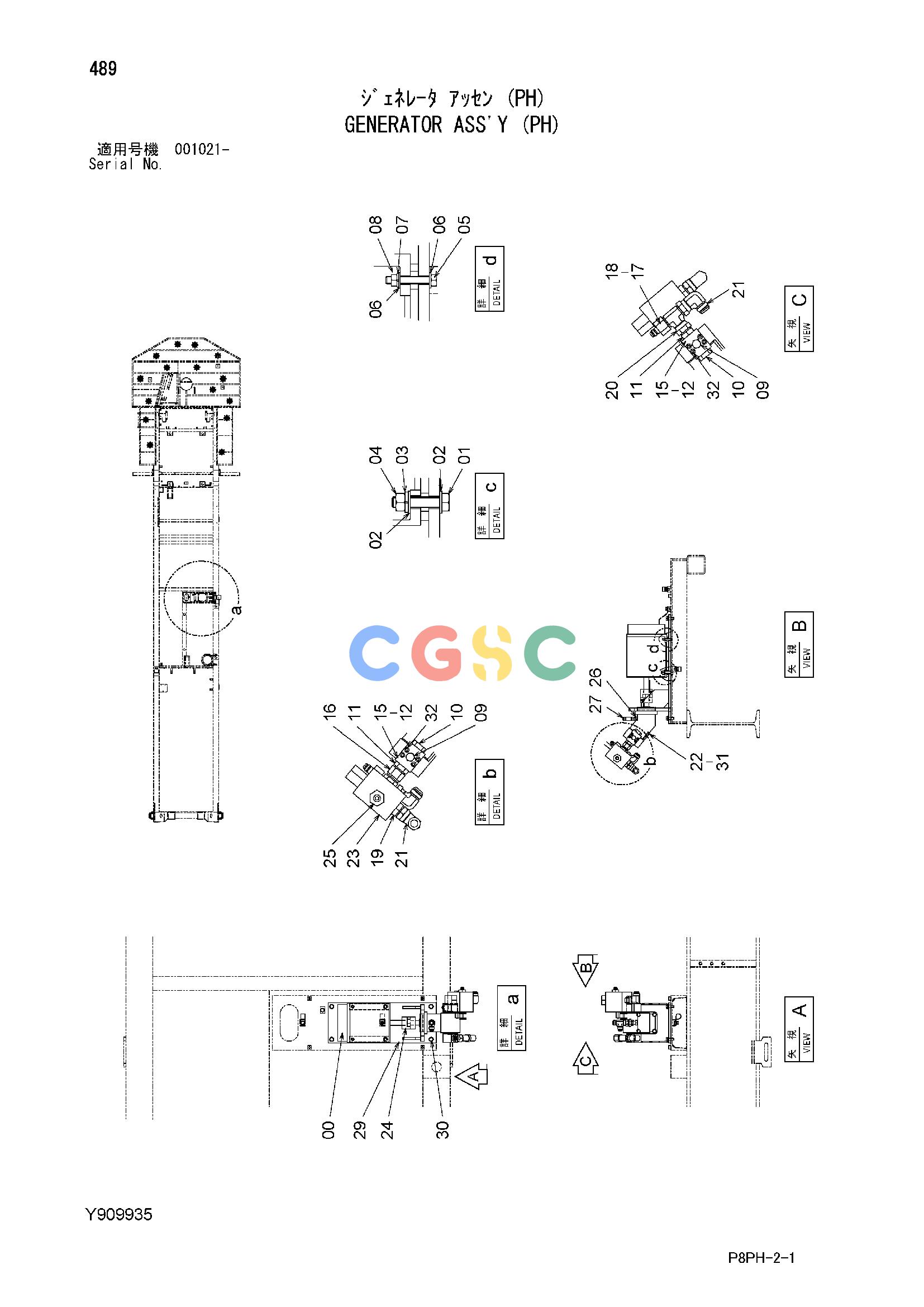

日立零件查询（AR2000）GENERATOR ASS'Y (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
346 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y414856 | [1] | GENERATOR;AC | |
| 01. | J901255 | [2] | BOLT | |
| 02. | A590112 | [4] | WASHER;PLANE | |
| 03. | A590912 | [2] | WASHER;SPRING | |
| 04. | J950012 | [2] | NUT | |
| 05. | J900850 | [2] | BOLT | |
| 06. | A590108 | [4] | WASHER;PLANE | |
| 07. | A590908 | [2] | WASHER;SPRING | |
| 08. | M500807 | [2] | NUT | |
| 09. | 4092534 | [2] | PLUG | |
| 10. | 4174542 | [2] | PLUG | |
| 11. | 4314080 | [2] | ADAPTER;S | |
| 11A. | 4506424 | [1] | O-RING | |
| 12. | A811025 | [2] | O-RING | |
| 15. | Y301973 | [2] | MANIFOLD | |
| 16. | Y411673 | [1] | ADAPTER;S | |
| 17. | Y411678 | [1] | REDUCER;S | |
| 18. | Y411682 | [1] | NUT | |
| 19. | Y411688 | [1] | ADAPTER;S | |
| 20. | Y412617 | [1] | TEE;S | |
| 21. | Y412823 | [2] | ELBOW;S | |
| 22. | Y414849 | [1] | MOTOR;OIL | |
| 23. | Y414850 | [1] | VALVE;CONTROL | |
| 24. | Y414854 | [1] | COUPLING | |
| 25. | Y414869 | [1] | ADAPTER;S | |
| 26. | Y414871 | [1] | ADAPTER;S | |
| 27. | Y414872 | [1] | TEE;S | |
| 29. | Y802430 | [1] | BRACKET | |
| 30. | J271250 | [4] | BOLT;SEMS | |
| 30A. | J901250 | [1] | BOLT | |
| 30B. | J222012 | [1] | WASHER | |
| 31. | J271040 | [4] | BOLT;SEMS | |
| 31A. | J901040 | [1] | BOLT | |
| 31B. | J222010 | [1] | WASHER | |
| 32. | J780860 | [8] | BOLT;SOCKET | |
