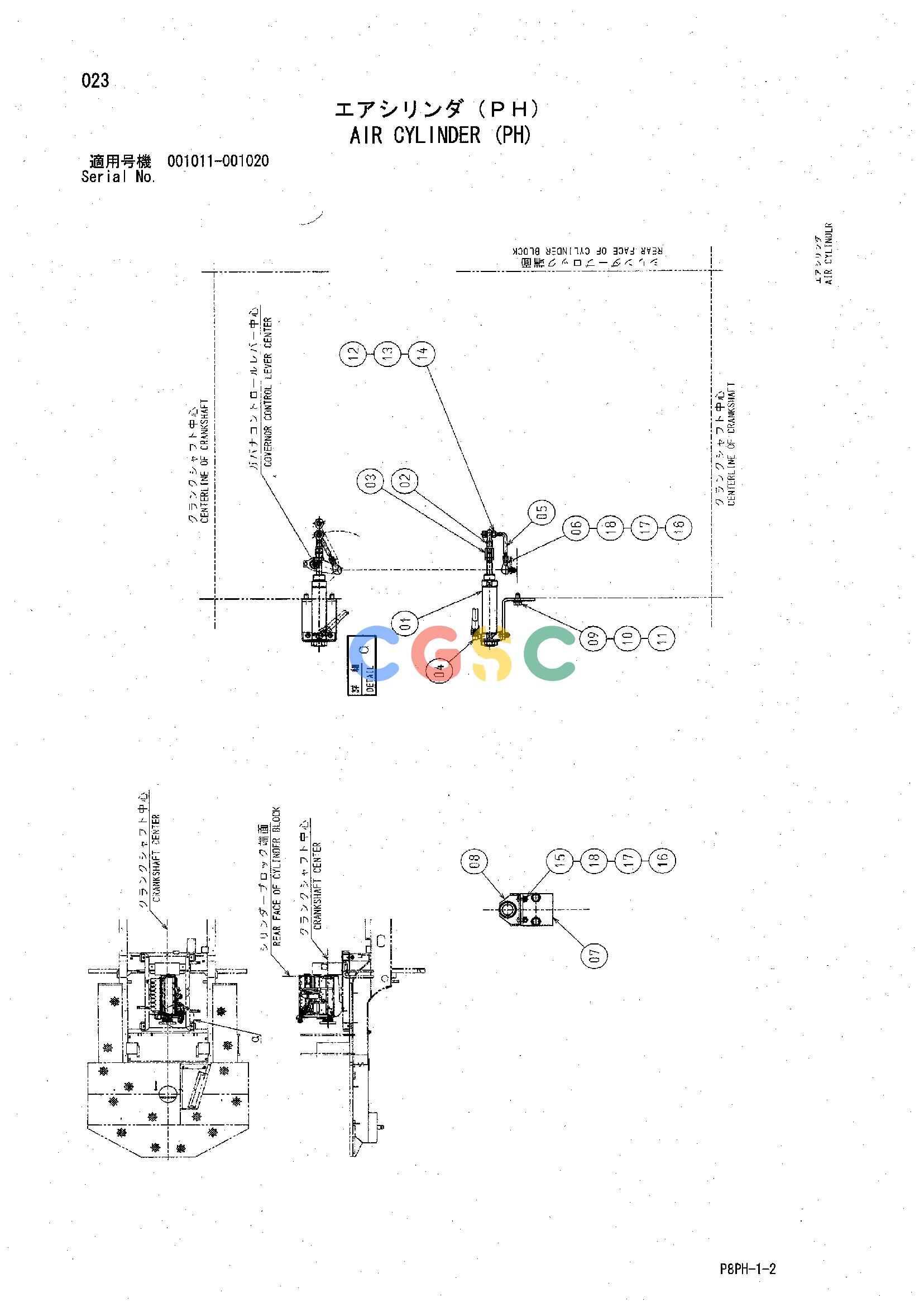

日立零件查询（AR2000）AIR CYLINDER (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
595 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y408712 | [1] | CYL.;AIR | |
| 02. | 4120969 | [1] | END;ROD | |
| 03. | Y408640 | [1] | JOINT | |
| 04. | 4298746 | [1] | ELBOW;S | |
| 05. | Y408639 | [1] | LEVER | |
| 06. | 4056017 | [1] | JOINT;BALL | |
| 07. | Y408637 | [1] | BRACKET | |
| 08. | Y408638 | [1] | BRACKET | |
| 09. | Z492848 | [2] | BOLT | |
| 10. | J219083 | [2] | WASHER;SPRING | |
| 11. | A590110 | [2] | WASHER;PLANE | |
| 12. | A590908 | [1] | WASHER;SPRING | |
| 13. | A590108 | [2] | WASHER;PLANE | |
| 14. | M500807 | [2] | NUT | |
| 15. | J900620 | [2] | BOLT | |
| 16. | M500605 | [4] | NUT | |
| 17. | A590106 | [3] | WASHER;PLANE | |
| 18. | A590906 | [3] | WASHER;SPRING | |
