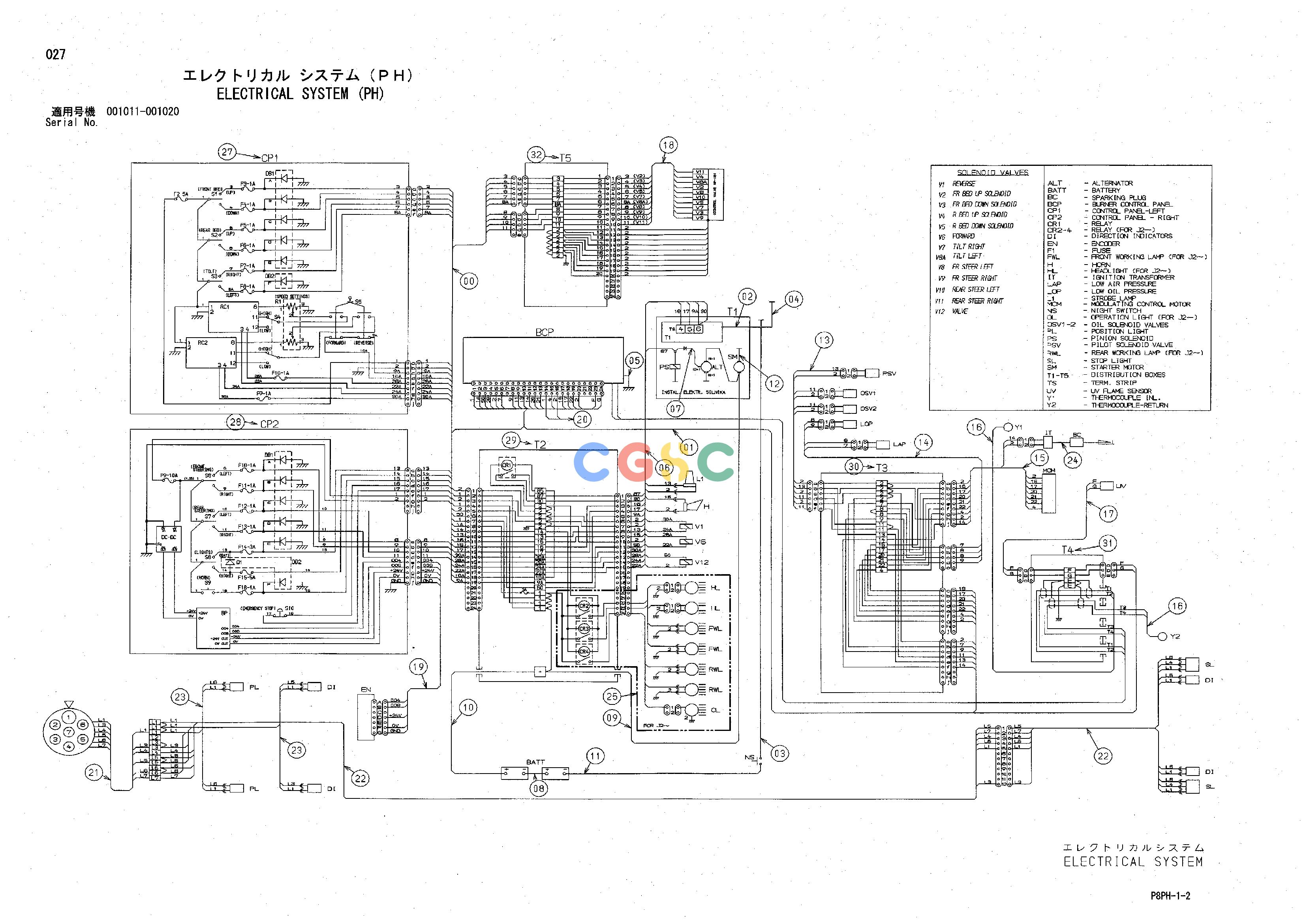

日立零件查询（AR2000）ELECTRICAL SYSTEM (PH) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
127 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y414414 | [1] | HARNESS;WIRE | |
| 01. | Y414415 | [1] | HARNESS;WIRE | |
| 02. | Y414416 | [1] | HARNESS;WIRE | |
| 03. | Y414417 | [1] | HARNESS;WIRE | |
| 04. | Y414418 | [1] | HARNESS;WIRE | |
| 05. | Y414419 | [1] | HARNESS;WIRE | |
| 06. | Y414420 | [1] | HARNESS;WIRE | |
| 07. | Y414421 | [1] | HARNESS;WIRE | |
| 08. | Y414422 | [1] | HARNESS;WIRE | |
| 09. | Y414423 | [1] | HARNESS;WIRE | |
| 10. | Y414424 | [1] | HARNESS;WIRE | |
| 11. | Y414425 | [1] | HARNESS;WIRE | |
| 12. | Y414426 | [1] | HARNESS;WIRE | |
| 13. | Y414427 | [1] | HARNESS;WIRE | |
| 14. | Y414428 | [1] | HARNESS;WIRE | |
| 15. | Y414429 | [1] | HARNESS;WIRE | |
| 16. | Y414430 | [1] | HARNESS;WIRE | |
| 17. | Y414431 | [1] | HARNESS;WIRE | |
| 18. | Y414432 | [1] | HARNESS;WIRE | |
| 19. | Y414433 | [1] | HARNESS;WIRE | |
| 20. | Y414434 | [1] | HARNESS;WIRE | |
| 21. | Y414435 | [1] | HARNESS;WIRE | |
| 22. | Y414436 | [1] | HARNESS;WIRE | |
| 23. | Y414437 | [1] | HARNESS;WIRE | |
| 24. | Y414438 | [1] | HARNESS;WIRE | |
| 25. | Y414625 | [1] | HARNESS;WIRE | |
| 27. | Y409766 | [1] | PANEL;CONTROL | (CP1) |
| 28. | Y409768 | [1] | PANEL;CONTROL | (CP2) |
| 29. | Y410881 | [1] | BOX;TERMINAL | (T2) |
| 30. | Y410882 | [1] | BOX;TERMINAL | (T3) |
| 31. | Y410883 | [1] | BOX;TERMINAL | (T4) |
| 32. | Y410884 | [1] | BOX;TERMINAL | (T5) |
