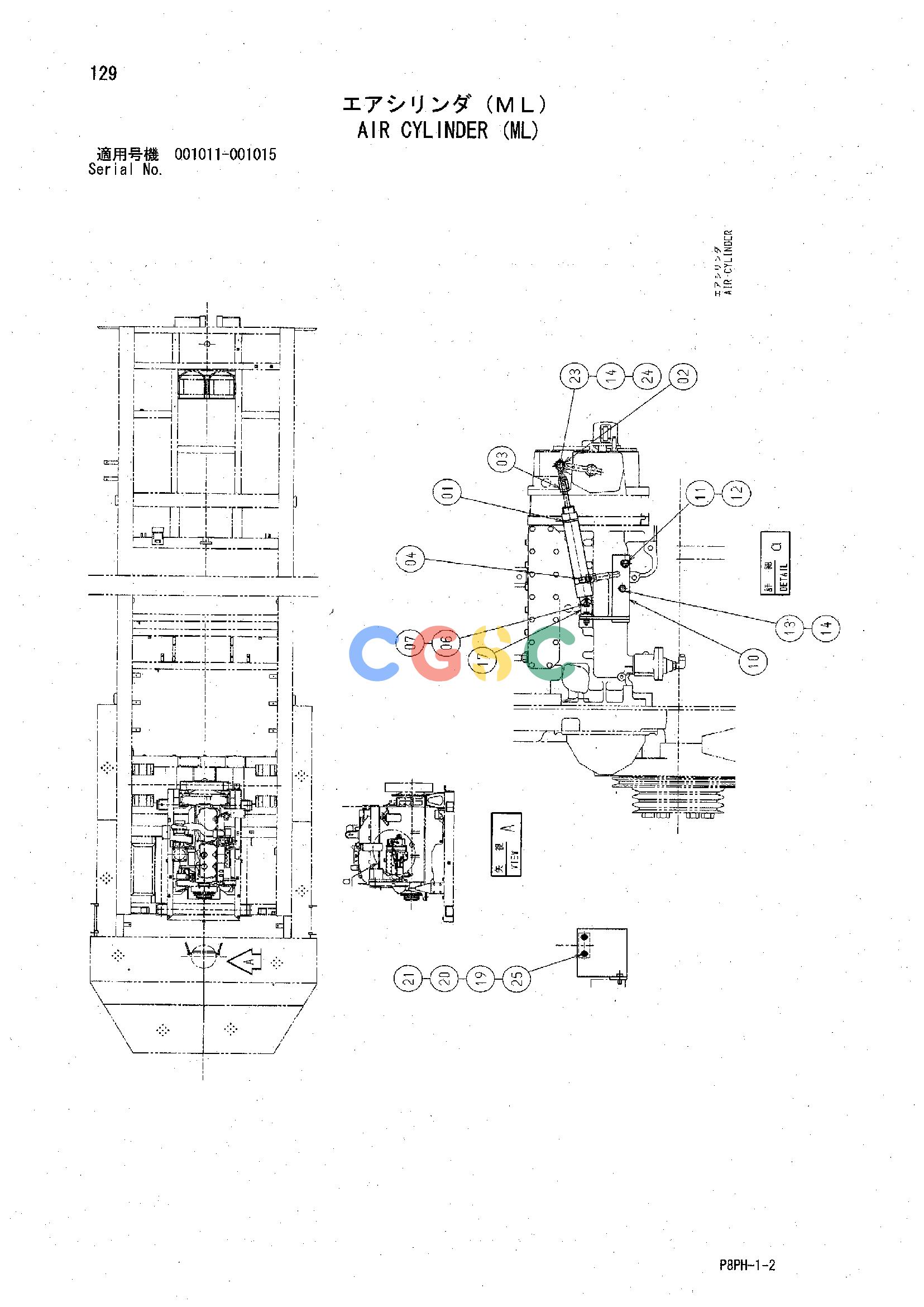

日立零件查询（AR2000）AIR CYLINDER (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
547 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y409600 | [1] | CYL.;AIR | |
| 02. | 4120969 | [1] | END;ROD | |
| 03. | Y408640 | [1] | JOINT | |
| 04. | 4298746 | [1] | ELBOW;S | |
| 06. | A741232 | [1] | PIN | |
| 07. | A764020 | [1] | PIN;SPLIT | |
| 10. | Y970992 | [1] | BRACKET | |
| 11. | Z492848 | [1] | BOLT | |
| 12. | J219083 | [1] | WASHER;SPRING | |
| 13. | Y410819 | [1] | BOLT | |
| 14. | A590908 | [3] | WASHER;SPRING | |
| 17. | Y970991 | [1] | BRACKET | |
| 19. | M500605 | [2] | NUT | |
| 20. | A590106 | [2] | WASHER;PLANE | |
| 21. | A590906 | [2] | WASHER;SPRING | |
| 23. | J900840 | [1] | BOLT | |
| 24. | M500807 | [1] | NUT | |
| 25. | J900625 | [2] | BOLT | |
